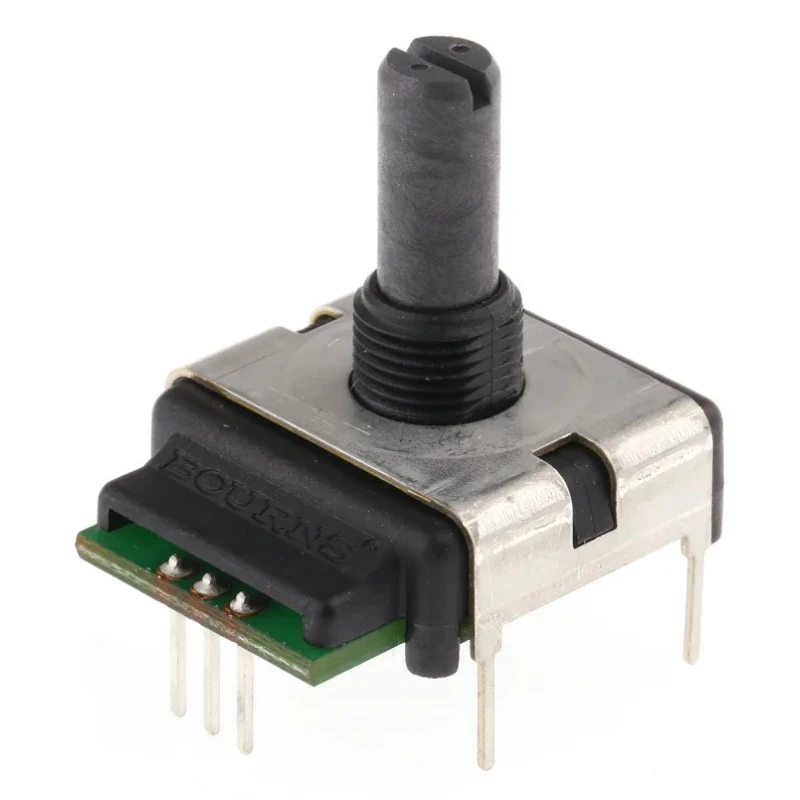

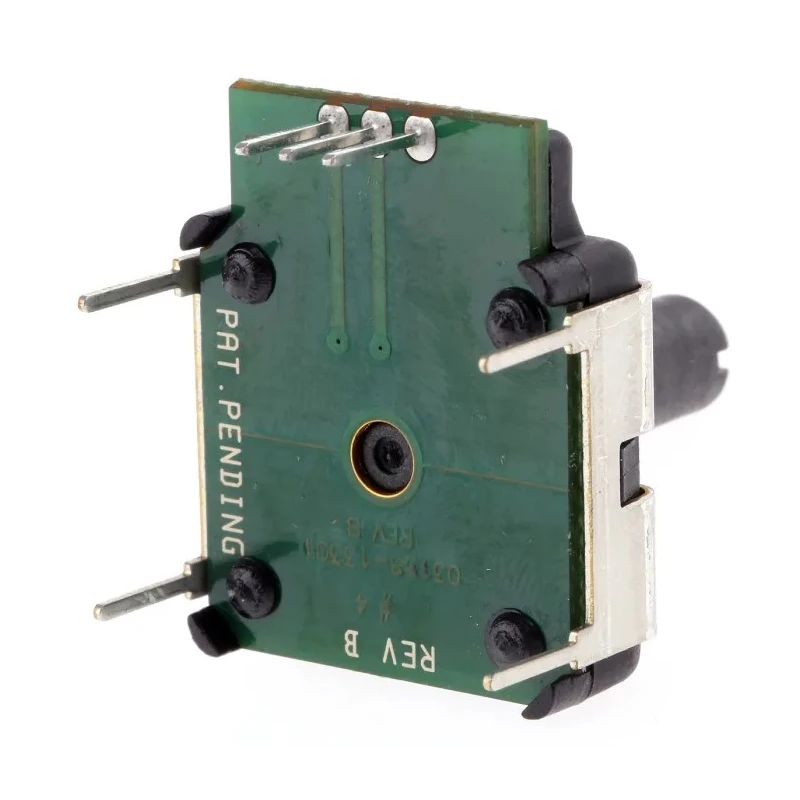

Bourns Incremental Digital Contacting Encoder 10V 24ppr Quadrature Signal Solid Shaft 9 mm Panel Mount ECW1D-B24-BC0024L
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Bourns |
| Model | ECW1D-B24-BC0024L |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Series | ECW |
| Overall Width | 28.49mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Shaft Diameter | 9mm |
| Overall height | 27.51mm |
| Shaft Type | Solid |
| Pulses per Revolution | 24ppr |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 10V |
| Overall Depth | 23.37mm |
| Encoder Technology | Incremental |
| Maximum Revolutions | 120rpm |
| Output Signal Type | Quadrature |
Key Features
- This encoder operates at a maximum supply voltage of 10V for efficient power use.
- It supports a maximum rotation speed of 120 rpm, suitable for precise motion control.
- The IP40 rating ensures protection against solid objects larger than 1 mm.
- Robust panel mounting design with bushing mount for stable installation.
- Wide operating temperature range from -40°C to 85°C enables use in tough industrial environments.
- Compact dimensions with overall height of 27.51 mm, width of 28.49 mm, and depth of 23.37 mm.
- Compliant with RoHS standards ensuring environmental safety.
- Manufactured in Mexico with high-quality construction for long operating life.
Product Description
Bourns ECW1D-B24-BC0024L Incremental Digital Contacting Encoder is designed for precise motion control applications requiring accurate position feedback. It features 24 pulses per revolution and provides a quadrature output signal for direction and speed measurement. The encoder includes a solid 9 mm diameter shaft and is intended for panel mounting with a reliable bushing mount.
Operating at a maximum supply voltage of 10 V and a speed up to 120 rpm, it is well-suited for industrial automation, robotics, and machinery control systems. The unit has an IP40 protection rating ensuring it is resistant to ingress by larger solid particles, making it suitable for indoor or controlled environments.
Its robust construction offers an exceptionally long operating life, with a temperature operating range from -40°C to 85°C, supporting performance in harsh conditions. The compact form factor with overall dimensions of 27.51 mm height, 28.49 mm width, and 23.37 mm depth facilitates easy integration into control panels and machines.
This encoder complies with RoHS directives, ensuring environmentally responsible manufacturing and use. The product is manufactured in Mexico, indicating adherence to high-quality production standards. It is a reliable choice for industrial, laboratory, and manufacturing automation projects where accurate and durable incremental position feedback is essential.
This encoder operates at a maximum supply voltage of 10V for efficient power use. It supports a maximum rotation speed of 120 rpm, suitable for precise motion control. The IP40 rating ensures protection against solid objects larger than 1 mm.
Robust panel mounting design with bushing mount for stable installation. Wide operating temperature range from -40°C to 85°C enables use in tough industrial environments. Compact dimensions with overall height of 27.51 mm, width of 28.49 mm, and depth of 23.37 mm.
Compliant with RoHS standards ensuring environmental safety. Manufactured in Mexico with high-quality construction for long operating life. Explore more encoders and sensor solutions for automation and control applications on EnvMart.
Explore more products in our Incremental Encoder category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The encoder operates at a maximum supply voltage of 10V.
This model supports a maximum rotation speed of 120 rpm, suitable for precise motion control applications.
It provides a quadrature output signal, which is used for direction and speed measurement.
The encoder has an IP40 rating, ensuring protection against solid objects larger than 1 mm.
The overall dimensions are 27.51 mm in height, 28.49 mm in width, and 23.37 mm in depth.
It operates within a temperature range from -40°C to 85°C, making it suitable for harsh industrial environments.
It features a solid shaft with a diameter of 9 mm.
Yes, it complies with RoHS standards, ensuring environmentally responsible manufacturing.
This model is designed for panel mounting with a reliable bushing mount.
The encoder provides 24 pulses per revolution (24 ppr).
It is manufactured in Mexico, adhering to high-quality production standards.
It is suitable for industrial automation, robotics, and machinery control systems requiring accurate position feedback.
