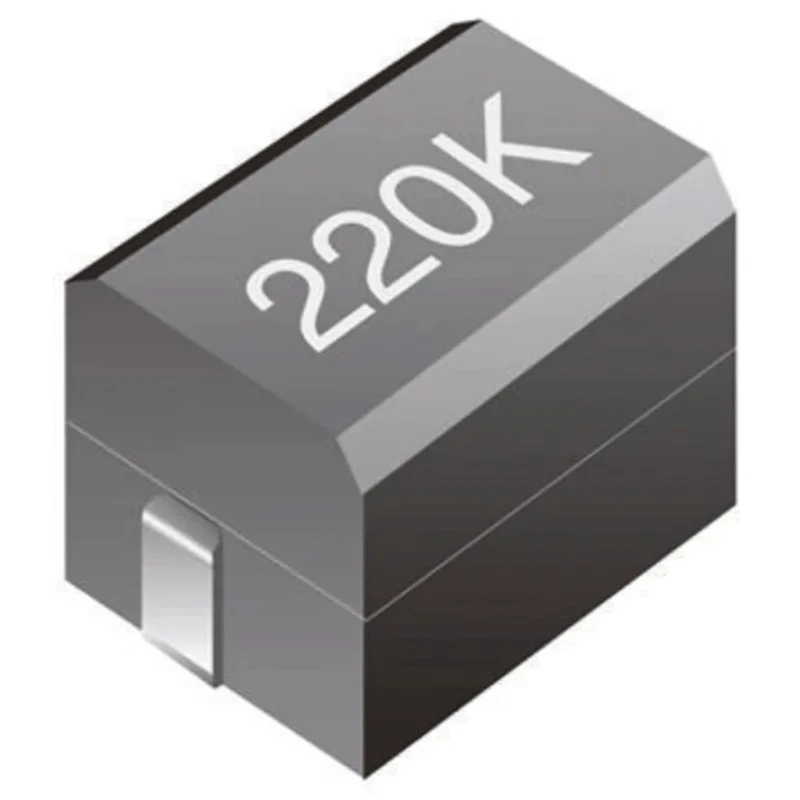

Bourns 1812 Unshielded Surface Mount Inductor 220 μH ±10 % 100 mA Idc Ferrite Core Wirewound CM453232

Bourns CM453232 1812 surface mount inductor features a 220 μH inductance with ±10 % tolerance, making it ideal for use in electronic circuit designs requiring precise inductance values. This unshielded inductor incorporates a ferrite core and is constructed using a wirewound method to provide consistent inductive properties and help maintain performance under thermal and mechanical stresses.

The inductor supports a maximum DC current of 100 mA and offers a maximum DC resistance of 10 Ω, promoting energy efficiency in electronic assemblies. Its package dimension of 1812 and compact size - 4.5 mm in length and 3.2 mm in both height and depth - makes it optimized for surface mount technology (SMT), particularly in automated manufacturing lines.

Designed to operate within a temperature range from -40°C to 125°C, the CM453232 series is RoHS compliant and utilizes solder termination style, which supports robust connections on printed circuit boards (PCBs). The minimum quality factor of 40 at a maximum self-resonant frequency of 4 MHz ensures signal integrity in high-frequency applications.

This surface mount inductor offers high resistance to heat, humidity, mechanical shock, and pressure, making it suitable for demanding environments such as industrial, automotive, telecommunications, and consumer electronics applications.

Due to its precise construction and consistent performance characteristics, the Bourns CM453232 inductor is well-suited for use in power supply filtering, signal processing circuits, RF and microwave applications, and other demanding electronic designs.

Features a maximum DC current rating of 100 mA. Constructed with a ferrite core for stable inductance. Wirewound design ensures reliable performance. Maximum DC resistance of 10 Ω enhances efficiency. Operates between -40°C and 125°C with RoHS compliance.

Compact 1812 SMT package dimensions. Minimum quality factor of 40 at 4 MHz self-resonant frequency. High resistance to heat, humidity, shock, and pressure. Ideal for industrial, automotive, and electronic applications. Explore the comprehensive range of Surface Mount Inductors on EnvMart for your electronic component sourcing needs.
