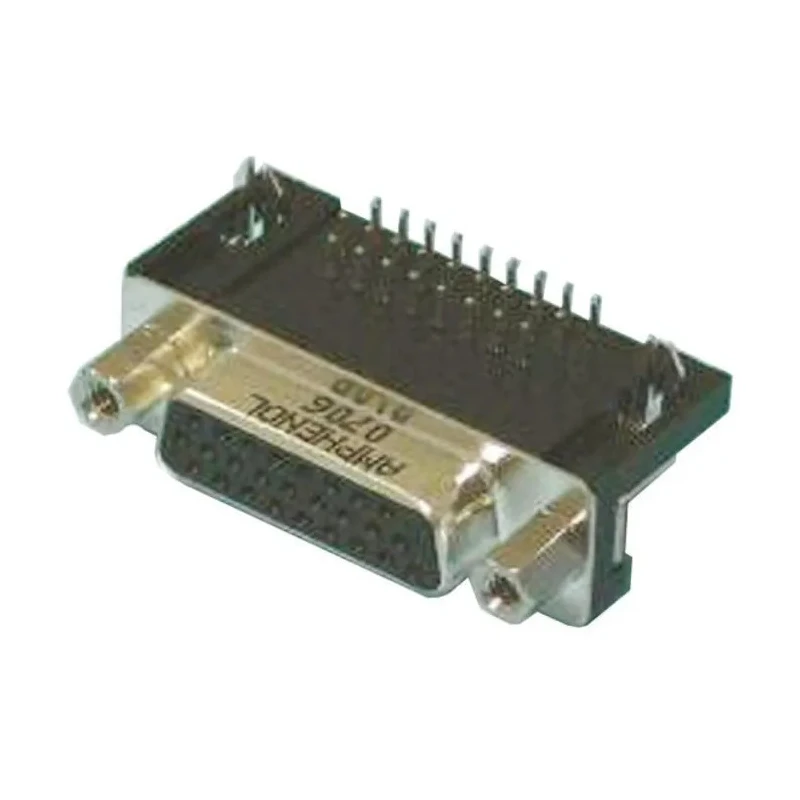

Amphenol Communications Solutions D-Sub Connector 26 Contacts Right Angle Through Hole, Thermoplastic Housing L77HD
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Current | 3A |
| Model | L77HD |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Bronze |
| Series | L77HD |
| Mounting Hardware | 4 to 40 UNC Screw Lock |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | DA-26 |
Key Features
- Connector features a through-hole mount type for PCB integration.
- High-density receptacle with thermoplastic housing for durability.
- Gold-plated bronze contacts provide corrosion resistance and reliable electrical connection.
- Designed for 3A current and 250V voltage applications.
- Operating temperature range from -55°C to 105°C for robust performance.
- Solder termination type ensures secure connectivity.
- Includes female connector gender with DA-26 shell size.
- Ideal for electronic, industrial, and communication equipment requiring secure connections.
Product Description
Amphenol Communications Solutions L77HD D-Sub Connector is a high-density, right angle connector designed for reliable PCB connection in demanding electronic and industrial applications. This connector features 26 female contacts with gold-plated bronze material to ensure excellent conductivity and resistance to corrosion.
The connector is equipped with a thermoplastic housing that offers mechanical strength and thermal stability, supporting operation between -55°C and 105°C. It has a current rating of 3A and a maximum voltage rating of 250V, making it suitable for a wide range of low-power applications.
The mounting is through-hole with four to 40 UNC screw locks, enhancing mechanical stability during use. The solder termination type facilitates secure and permanent connections on printed circuit boards.
This connector's right angle orientation allows for space-saving designs in compact assemblies, common in electronic components and power connectors sectors. The DA-26 shell size complements its compact form while providing a reliable fit for high-density cabling requirements.
Connector features a through-hole mount type for PCB integration. High-density receptacle with thermoplastic housing for durability. Gold-plated bronze contacts provide corrosion resistance and reliable electrical connection.
Designed for 3A current and 250V voltage applications. Operating temperature range from -55°C to 105°C for robust performance. Solder termination type ensures secure connectivity. Includes female connector gender with DA-26 shell size.
Ideal for electronic, industrial, and communication equipment requiring secure connections.
Applications include use in telecommunications, computing hardware, industrial control systems, and general electronics where secure, high-quality D-Sub connectors are required. The product maintains compliance with industry standards for connection integrity though specific certifications are not stated.
Choose Amphenol Communications Solutions connectors for superior engineering, durability, and performance in critical electronics connections. Browse more D-Sub Connectors and related products at EnvMart for your industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this connector is 250V, making it suitable for low-power applications.
This model has a current rating of 3A, which is appropriate for various electronic applications.
It features a through-hole mount type for secure integration with printed circuit boards (PCBs).
The operating temperature range is from -55°C to 105°C, allowing for robust performance in diverse environments.
This connector has 26 female contacts, designed for high-density applications.
The housing is made of thermoplastic, and the contacts are gold-plated bronze, providing corrosion resistance and reliable electrical connections.
It utilizes a solder termination type, ensuring secure and permanent connections on PCBs.
This model has a right angle orientation, which is beneficial for space-saving designs in compact assemblies.
The connector includes mounting hardware with 4 to 40 UNC screw locks for enhanced mechanical stability during use.
It has a DA-26 shell size, which is suitable for high-density cabling requirements.
This connector is ideal for telecommunications, computing hardware, industrial control systems, and general electronics requiring secure connections.
The country of origin for this connector is China.
