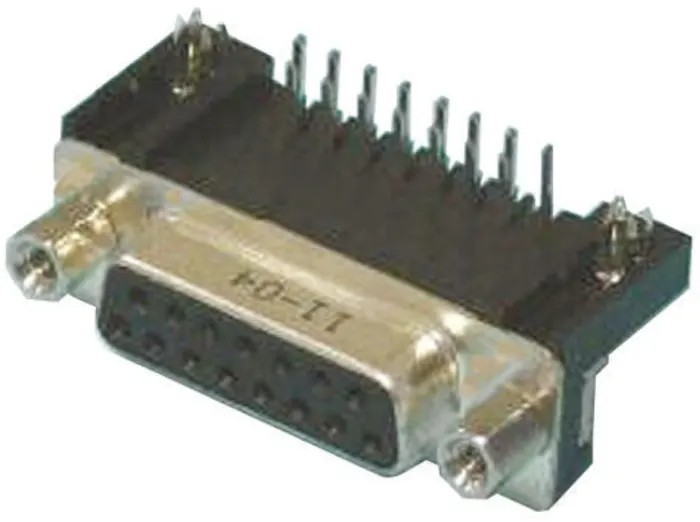

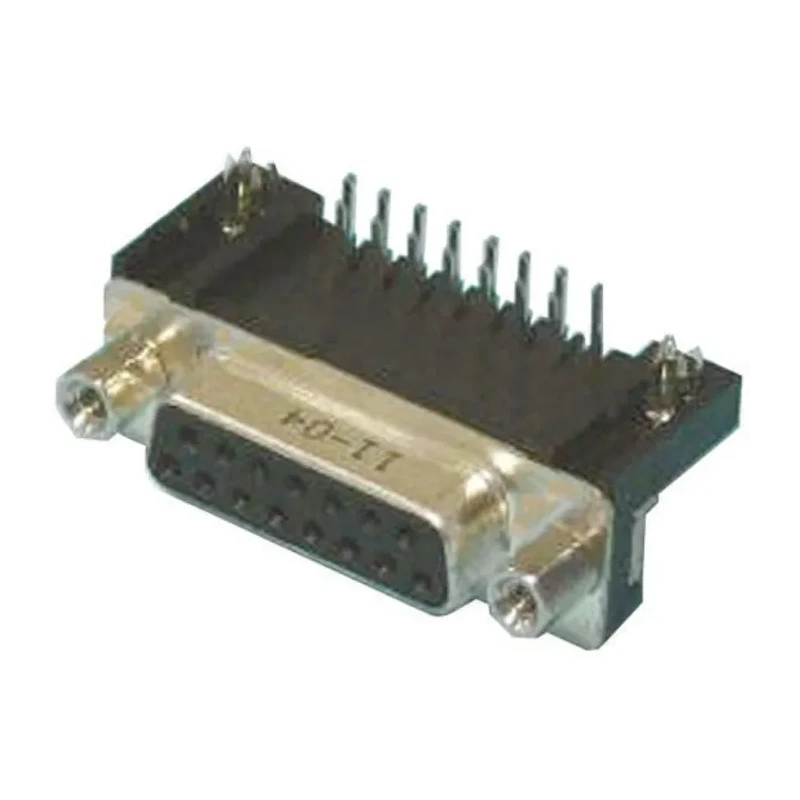

Amphenol Communications Solutions D-Sub Connector 15 Way Right Angle Through Hole with 4 to 40 UNC Screw Lock L77SD

Amphenol Communications Solutions L77SD 15 Way Right Angle Through Hole D-Sub Connector, model L77SD, is engineered for demanding electronic and industrial applications. With its right angle through hole design and 15 female contacts, it provides robust and reliable connections in PCB assemblies and electronic devices.

The thermal resistant thermoplastic housing withstands harsh operating environments with temperatures ranging between -55°C to 105°C, accommodating various industrial and commercial uses. The connector is suitable for operating voltages up to 250V and can carry currents of 5 Amperes, making it ideal for power and signal transmission scenarios.

For secure mounting, the connector features 4 to 40 UNC screw locks to ensure connectivity remains stable under vibration or motion conditions. The gold plated bronze contacts ensure excellent conductivity and corrosion resistance, enhancing the longevity and performance of the connector.

Termination is via solder type to guarantee firm and stable electrical connections, commonly required in industrial, manufacturing, automation, communication, and electronic equipment assemblies.

This connector complies with no specific standards or approvals but is designed as part of the well-recognized L77SD series, known for its standard density receptacle format optimized for European footprints and applications.

The connector is specifically designed as a right angle standard density receptacle compatible with DA-15 shell size. The female contact gender simplifies mating with male counterparts in a variety of connection systems.

Its robust thermoplastic housing offers mechanical protection and resistance to wear during handling and mounting. The connector is suited for applications including industrial automation, electronic instrumentation, telecommunications, and data communication equipment.

Manufactured in China under stringent quality controls to ensure consistent performance and reliability. Explore more high-quality D-Sub Connectors and other electronic components at EnvMart for your industrial and commercial requirements.
