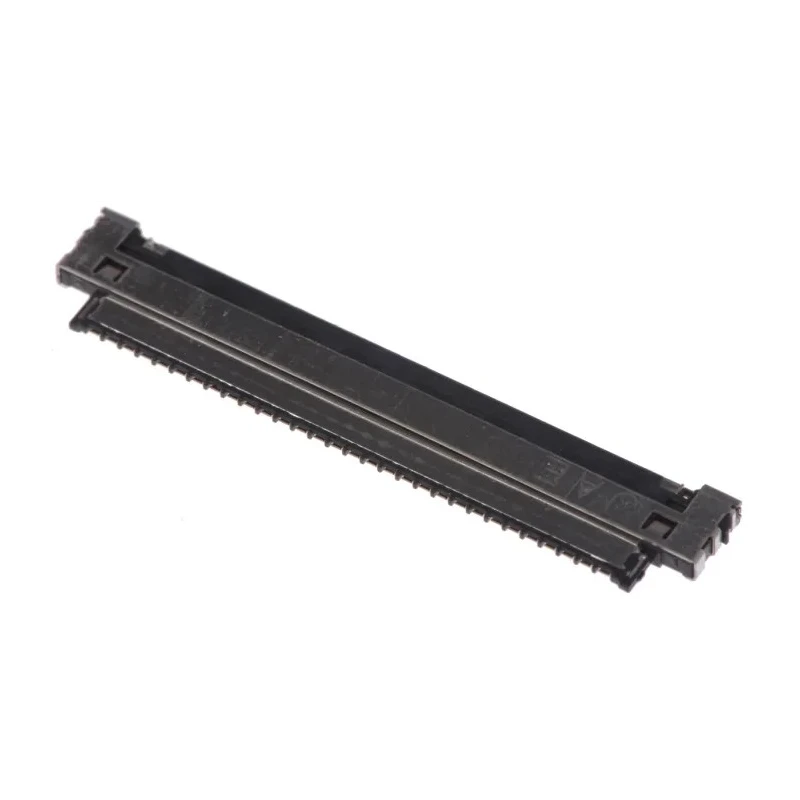

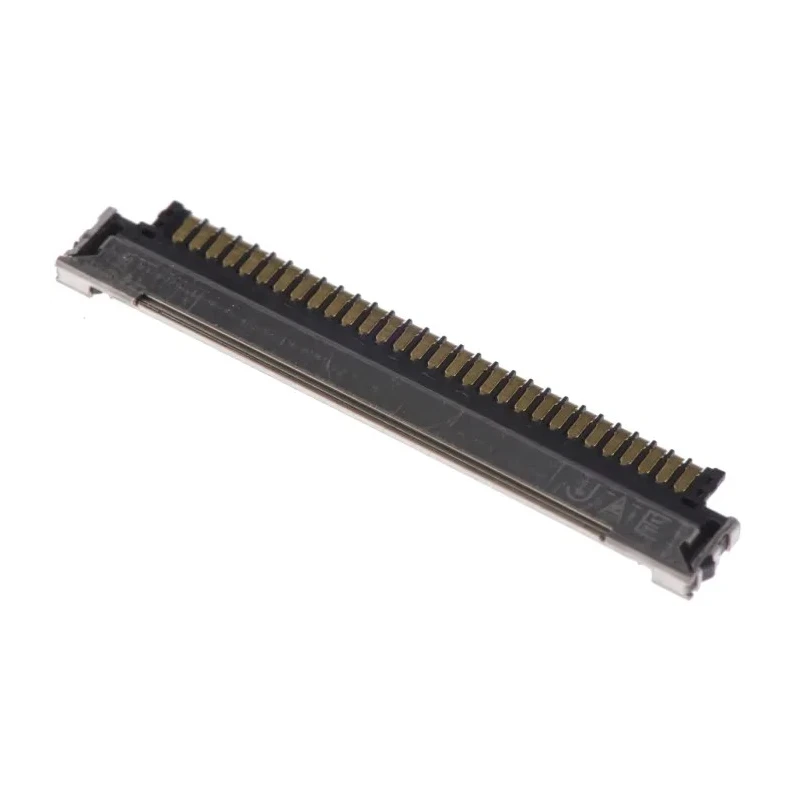

JAE LVDS Connector FI-X 1 mm Pitch 30 Way 1 Row Straight Cable, FCP Plug Push-in FI-X30MR-NPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | JAE |
| Orientation | Straight |
| Model | FI-X30MR-NPB |
| Mount Type | Cable |
| Housing Material | Nylon |
| Contact Material | Copper Alloy |
| Series | FI-X |
| Termination Type | Push-in |
| Sub Type | FCP Plug |
| Number of Rows | 1 |
| Pitch | 1mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 30 |
| Housing Colour | Beige |
Key Features
- Constructed with copper alloy contacts for reliable electrical conductivity.
- Housing made of beige nylon material ensuring durability and insulation.
- Push-in termination simplifies assembly and enhances connection security.
- Complies with RoHS standards ensuring environmental safety.
- Suitable for applications requiring low voltage differential signaling such as LCD and display technology.
- Series FI-X supports shielded versions enhancing EMI protection.
- Offers improved mechanical retention with latch design for vibration resistance.
- Specifically engineered for board to cable interfacing in complex electronic systems.
Product Description
JAE FI-X30MR-NPB LVDS Connector is a premium cable connector featuring a 1 mm pitch with 30 contacts arranged in a single straight row. It is part of the FI-X series designed for precise and high integrity low voltage differential signaling (LVDS) transmissions commonly used in modern display technologies such as LCD, PDP, and rear projection equipment.
The connector utilizes copper alloy contacts ensuring excellent electrical conductivity and signal integrity. The beige housing is made from nylon, providing sturdy insulation and mechanical strength to withstand demanding industrial environments. The push-in termination type facilitates quick and secure cable connections, reducing assembly time and improving production efficiency.
This LVDS connector series, FI-X, offers compatibility with high-speed differential transmission systems rated between 90 to 100Ω characteristic impedance, which supports the demanding signal quality requirements of contemporary video and display signals.
The connector design includes options for shielded versions to mitigate electromagnetic interference (EMI), and latch mechanisms are provided to improve mechanical retention, maintaining connection stability under vibration conditions often encountered in industrial and manufacturing settings.
These features make the JAE FI-X30MR-NPB suitable for industrial, electronics manufacturing, and laboratory applications where reliable and compact LVDS cable connections are essential. It supports efficient interconnection in devices requiring robust signal transmission, with a focus on durability and high performance.
Constructed with copper alloy contacts for enhanced signal reliability. Durable nylon housing in beige color ensures insulation and strength. Push-in termination offers easy and secure cable connections. Meets RoHS compliance for environmental and safety standards.
Supports high-speed LVDS transmissions with 1 mm pitch spacing. Latch versions improve connection stability under vibration. Ideal for LCD and advanced display technology interfaces. Designed for board to cable applications in electronics systems.
Explore more LVDS Connectors and electronics components in the EnvMart catalog to find the perfect match for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The JAE FI-X30MR-NPB connector features a 1 mm pitch and has 30 contacts arranged in a single straight row.
It is constructed with copper alloy contacts for electrical conductivity and a beige nylon housing for insulation and mechanical strength.
This connector utilizes a push-in termination type, which simplifies assembly and enhances connection security.
Yes, the JAE FI-X30MR-NPB complies with RoHS standards, ensuring environmental safety.
The connector has a straight orientation and is designed for cable mounting.
It is suitable for applications requiring low voltage differential signaling, such as LCD and advanced display technologies.
Yes, the FI-X series supports shielded versions to enhance protection against electromagnetic interference (EMI).
The JAE FI-X30MR-NPB connector is manufactured in India.
The latch design improves mechanical retention, ensuring connection stability under vibration conditions commonly found in industrial settings.
This connector supports high-speed differential transmission systems rated between 90 to 100Ω characteristic impedance.
The push-in termination type allows for quick and secure cable connections, reducing assembly time and improving production efficiency.
The JAE FI-X30MR-NPB connector is part of the FI-X series, which is designed for precise low voltage differential signaling transmissions.
