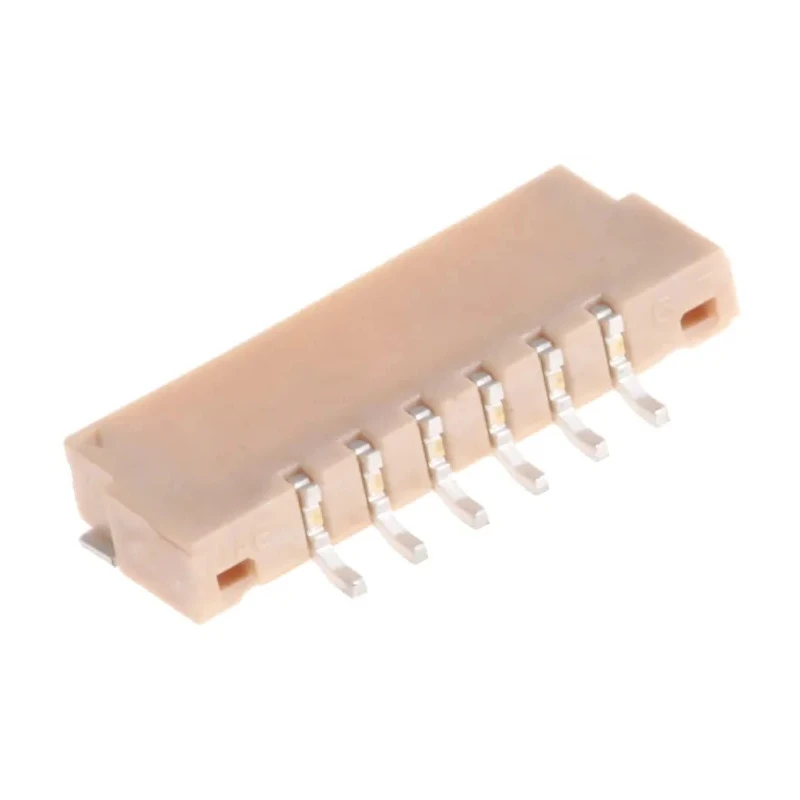

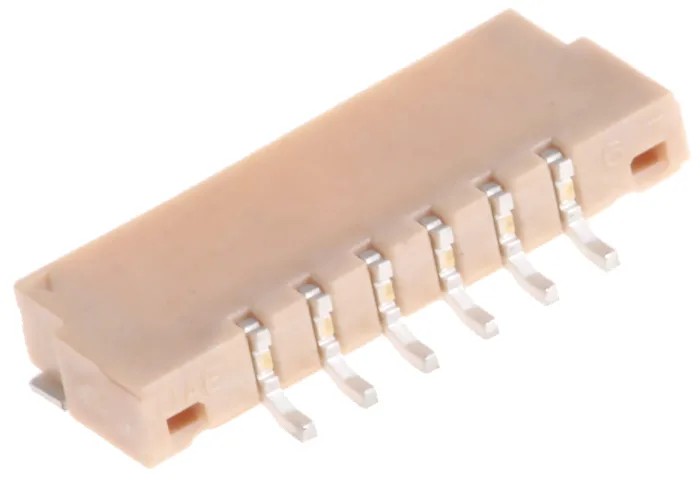

JAE LVDS Connector 1.25 mm Pitch 6 Way 1 Row Right Angle Surface Mount Receptacle Solder Termination FI-S6P-HFE
Specifications
| Country of Origin | India |
|---|---|
| Brand | JAE |
| Orientation | Right Angle |
| Model | FI-S6P-HFE |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | FI |
| Termination Type | Solder |
| Sub Type | Receptacle |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 6 |
| Housing Colour | Beige |
Key Features
- The connector features a 1.25 mm pitch suitable for high-density electronic connections.
- It has 6 contact positions arranged in a single row.
- The right angle orientation facilitates efficient PCB layout and space saving.
- Surface mount technology (SMT) termination ensures reliable solder connections.
- Contact parts are made from copper alloy, providing excellent conductivity.
- The housing is beige colored, composed of liquid crystal polymer for durability and heat resistance.
- This FI series connector complies with RoHS standards for environmental safety.
- It is ideally suited for applications in notebook PCs, VCRs, mobile phones, and other consumer electronics.
Product Description
JAE FI-S6P-HFE LVDS Connector is a 1.25 mm pitch, 6-way, 1-row, right angle, surface mount receptacle with solder termination. This connector is engineered for board-to-board connection applications requiring compact size and high reliability.
Its 1.25 mm pitch and single row of 6 contacts provide a stable interface for low-voltage differential signaling (LVDS) used in high-speed data communication. The right angle orientation optimizes circuit board layout by minimizing footprint and accommodating space constraints.
The contact material is copper alloy ensuring excellent electrical conductivity and durability, while the beige housing made from liquid crystal polymer offers robust mechanical stability and thermal resistance. The FI series connectors conform to RoHS environmental standards to meet regulatory compliance.
These connectors are commonly employed in industrial and consumer electronic devices such as notebook computers, VCRs, and mobile phones. The surface mount solder termination is suitable for automated assembly lines, contributing to manufacturing efficiency.
The connector features a 1.25 mm pitch suitable for high-density electronic connections. It has 6 contact positions arranged in a single row. The right angle orientation facilitates efficient PCB layout and space saving.
Surface mount technology (SMT) termination ensures reliable solder connections. Contact parts are made from copper alloy, providing excellent conductivity. The housing is beige colored, composed of liquid crystal polymer for durability and heat resistance.
This FI series connector complies with RoHS standards for environmental safety. It is ideally suited for applications in notebook PCs, VCRs, mobile phones, and other consumer electronics. The connector supports LVDS signalling for high-speed data transmission between circuit boards.
It improves production efficiency by being packaged ready for insertion into machinery.
EnvMart offers this JAE LVDS Connector FI-S6P-HFE as part of its Electronics & Electricals category, providing professional-grade components for electronics manufacturing, repair, and prototyping needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector is 1.25 mm, suitable for high-density electronic connections.
This model features 6 contact positions arranged in a single row.
It uses solder termination, suitable for surface mount technology (SMT).
The contact parts are made from copper alloy, while the housing is composed of liquid crystal polymer.
This connector has a right angle orientation, which helps optimize PCB layout and save space.
Yes, it complies with RoHS standards for environmental safety.
The housing of the FI-S6P-HFE connector is beige in color.
It is commonly used in notebook PCs, VCRs, mobile phones, and other consumer electronics.
The country of origin for this connector is India.
This connector belongs to the FI series.
It features a surface mount design, suitable for automated assembly lines.
The 1.25 mm pitch allows for stable interfaces in low-voltage differential signaling (LVDS) applications, facilitating high-speed data communication.
