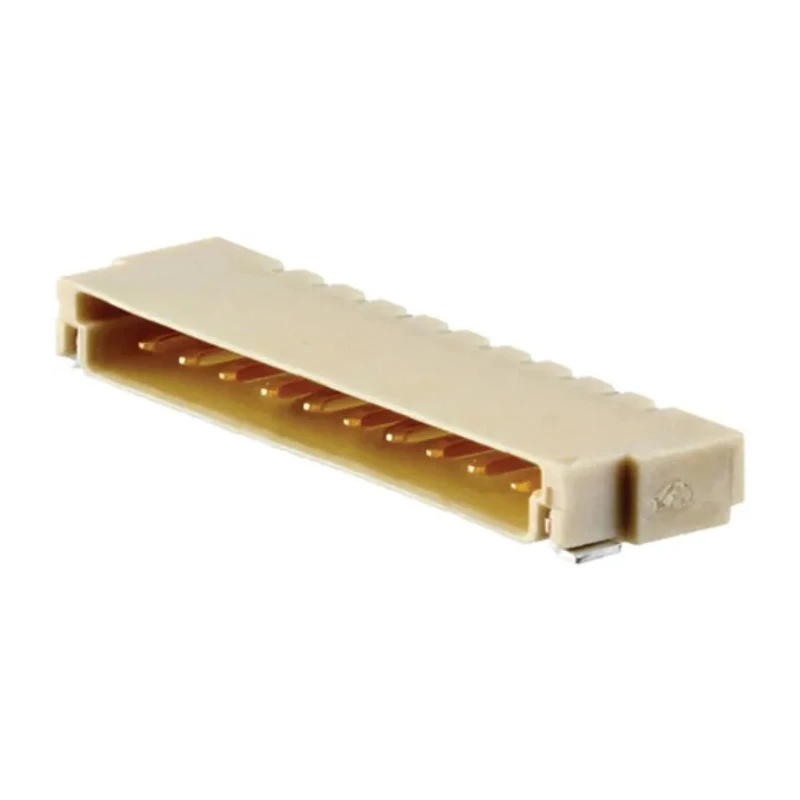

JAE LVDS Connector 1.25 mm Pitch 10 Way 1 Row Right Angle Surface Mount Receptacle Solder FI-S10P-HFE

Free Delivery in India | Lowest Global Shipping Charges

JAE LVDS Connector 1.25 mm Pitch 10 Way 1 Row Right Angle Surface Mount Receptacle Solder FI-S10P-HFE



Category Connector Brand JAE Condition New

Specifications

Country of Origin	India
Brand	JAE
Orientation	Right Angle
Model	FI-S10P-HFE
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	FI
Termination Type	Solder
Sub Type	Receptacle
Number of Rows	1
Pitch	1.25mm
Standards/Approvals	RoHS
Number of Contacts	10
Housing Colour	Beige

Key Features

This connector features a 1.25 mm pitch suitable for wire-to-board connections.
It has 10 contacts arranged in a single row for efficient signal transmission.
The right angle orientation facilitates space-saving PCB layouts.
Contacts are made of durable copper alloy ensuring excellent conductivity.
Housing is constructed from beige liquid crystal polymer providing robust insulation and heat resistance.
Termination is via solder type suitable for surface mount technology applications.
The FI series is RoHS compliant, supporting environmental safety standards.
Applicable in compact consumer electronics like notebook PCs, VCRs, and mobile phones.

Product Description

JAE FI-S10P-HFE LVDS Connector is a precision 1.25 mm pitch 10 way 1 row right angle surface mount receptacle designed primarily for board-to-board connections in space-critical applications.

The liquid crystal polymer housing in beige color delivers excellent mechanical strength and thermal stability. Copper alloy contacts provide superior conductivity and resistance to wear. The right angle design facilitates compact PCB layouts and ease of assembly using standard solder termination methods suitable for surface mounting.

These connectors find extensive use in electronic components especially in consumer electronics such as notebook PCs, VCRs, and mobile phones where reduced space is essential. The FI series connectors meet RoHS standards ensuring environmentally safe manufacturing processes.

This LVDS connector ensures tight pitch of 1.25 mm perfect for high-density electronic assemblies. It incorporates 10 individual contacts arranged in 1 row improving signal integrity. Right angle mounting minimizes PCB footprint and enhances cable management efficiency.

Housing material offers robust protection against mechanical and thermal stresses. Designed for solder termination, it is compatible with standard surface mount technology assembly lines. Complies with RoHS directive for hazardous substance restrictions.

A trusted choice for compact consumer electronics needing reliable data connections. Supports tight tolerance and consistent electrical performance over extended use.

Explore more from JAE and the LVDS Connector category at EnvMart for professional-grade electronic Connectors and components tailored for varied industrial, commercial, and consumer applications.
