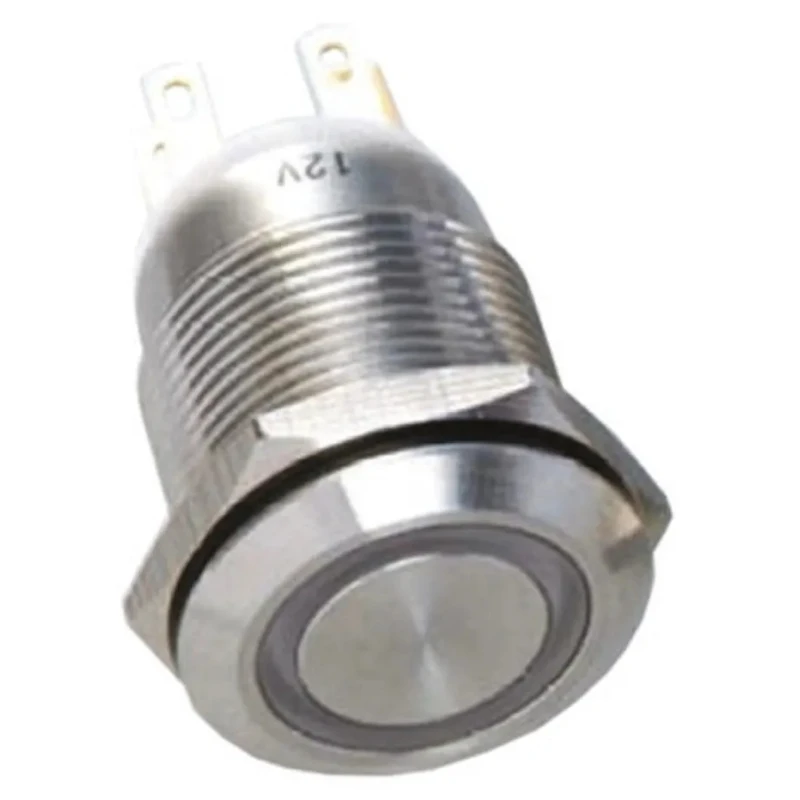

EOZ R Series Illuminated Push Button Switch Momentary Panel Mount 19.2 mm Cutout SPDT Yellow LED IP65 Rated R19FFSSPAGRY3.5
Specifications
| Country of Origin | France |
|---|---|
| Brand | EOZ |
| Model | R19FFSSPAGRY3.5 |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | R |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Switch Configuration | 1 NO/1 NC |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 19.2 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| LED Colour | Yellow |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Actuator Style | Button |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch is vandal resistant with IK09 impact rating protecting against 10 joules of impact energy.
- It features ring or central dot LED illumination that lights up when pressed.
- Sealed to IP65, resistant to dust ingress and low-pressure water jets from all directions.
- Suitable for industrial public and exposed areas such as kiosks, vending machines, and factory equipment.
- Operates reliably between -20°C and 55°C ambient temperature.
- Contact rating is 5 A AC at 250 V AC for compatible machinery and control systems.
- Constructed with a durable silver actuator button for longevity in harsh environments.
- Complies with RoHS standards ensuring environmentally safe manufacturing.
Product Description
EOZ R19FFSSPAGRY3.5 is a high-performance illuminated push button switch from the R Series, designed for momentary switch operation. It features a rugged panel mount design with a precise 19.2 mm cutout, suitable for integration in industrial, electrical, and automation control panels. The SPDT contact configuration enables versatile switching control with a yellow LED illumination for clear visual feedback.
These vandal-resistant switches are impact rated IK09, withstanding impacts equivalent to a 5 kg mass dropped from 200 mm, making them ideal for exposed or public installations such as ticket machines, kiosks, and vending equipment. The IP65 rating provides comprehensive protection against dust ingress and water jets, enhancing durability in harsh environments.
The switch operates reliably within a temperature range of -20°C to 55°C, supporting factory machinery, industrial automation, and access control systems. The actuator features a silver button style that combines ergonomic operation with durability. The LED illumination offers enhanced visibility and operational indication.
Designed and manufactured in France, the EOZ R Series push button switch complies with RoHS standards to ensure environmentally compliant production. Its solder terminal type and rated contact capacity of 5 A at 250 V AC make it functional for various electrical switching applications.
This push button switch is ideally suited for industrial control panels, public infrastructure, automation equipment, and manufacturing machinery requiring reliable and easy-to-operate switch interface devices.
The switch is vandal resistant with IK09 impact protection against 10 joules impact. Features yellow LED ring or central dot illumination activated on press. Rated IP65 for dust tightness and protection against low pressure jets of water.
Compact 19.2 mm panel cutout for easy installation. Momentary switch action with SPDT contact configuration. Silver color actuator with button style for tactile feedback. Rated 5A AC contact current at 250 V AC for industrial use.
RoHS compliant manufacturing ensures safety and environmental standards. Operating temperature from -20°C to 55°C. Made in France for quality assurance and longevity. Explore more Push Button Switches and electrical components on EnvMart for robust industrial automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching control.
It has an IP65 rating, providing protection against dust ingress and low-pressure water jets from all directions.
This model operates reliably within a temperature range of -20°C to 55°C.
The required panel cutout size for installation is 19.2 mm.
It has a contact current rating of 5A AC at 250V AC, suitable for various electrical applications.
The switch features yellow LED illumination that activates when pressed, providing clear visual feedback.
The actuator style is a button, designed for ergonomic operation and tactile feedback.
Yes, it complies with RoHS standards, ensuring environmentally safe manufacturing practices.
It has an IK09 impact rating, which means it can withstand impacts equivalent to 10 joules of energy.
This switch is manufactured in France, ensuring quality assurance.
The switch uses solder terminals for electrical connections.
It is suitable for use in industrial control panels, public infrastructure, automation equipment, and manufacturing machinery.
