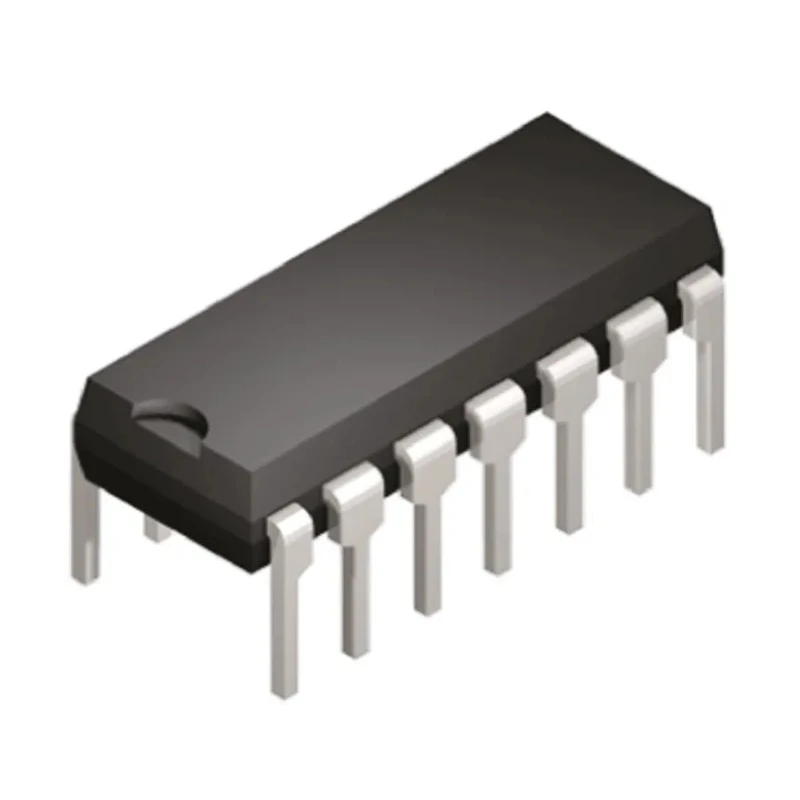

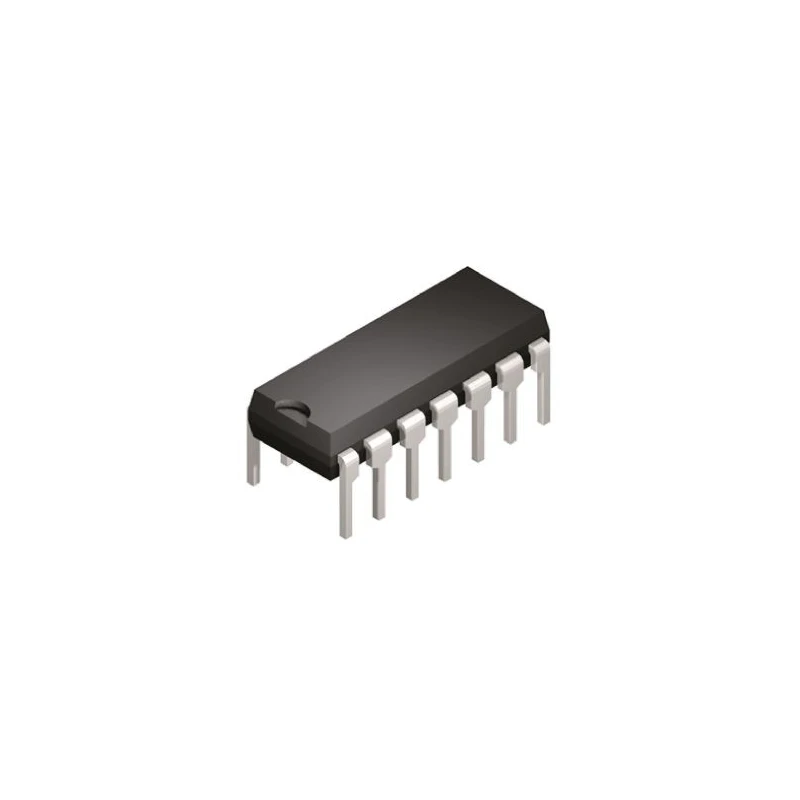

Texas Instruments Inverter 1 Element CMOS Logic IC, 14-Pin PDIP Package CD4007UBE

Texas Instruments CD4007UBE is a CMOS inverter integrated circuit containing one inverter element within a 14-pin PDIP package. It belongs to the 4000 logic family series designed for various digital logic applications requiring effective signal inversion.

This inverter IC supports a wide operating voltage range from 3 V to 18 V, enabling flexible power supply designs. It features a maximum propagation delay time of 110 ns at capacitive load, ensuring effective switching performance in logic circuits.

The device operates reliably across an extended temperature range from -55°C minimum to 125°C maximum, making it suitable for industrial, laboratory, and electronic manufacturing environments requiring durable semiconductor components.

Measuring 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height, the PDIP package facilitates through-hole mounting on printed circuit boards and ensures mechanical robustness.

This IC does not include a Schmitt trigger input, targeting straightforward inverter applications rather than signal conditioning complexities. Wide operating voltage range: 3 V to 18 V. Maximum propagation delay 110 ns at capacitive load.

Operating temperature range -55°C to 125°C. 14-pin PDIP through-hole package. Single inverter element per chip. Compact package dimensions for PCB design flexibility. Manufactured in Malaysia by Texas Instruments.

This inverter IC is commonly used in electronic component manufacturing, industrial control systems, laboratory equipment, and general semiconductor logic circuit designs. For comprehensive industrial and electronics applications, Texas Instruments provides technical documentation and design support.
