TDK 330 nF Multilayer Ceramic Capacitor 50V dc ±10 % Surface Mount 0603 CGA3E3X5R1H334K080AB

Free Delivery in India | Lowest Global Shipping Charges

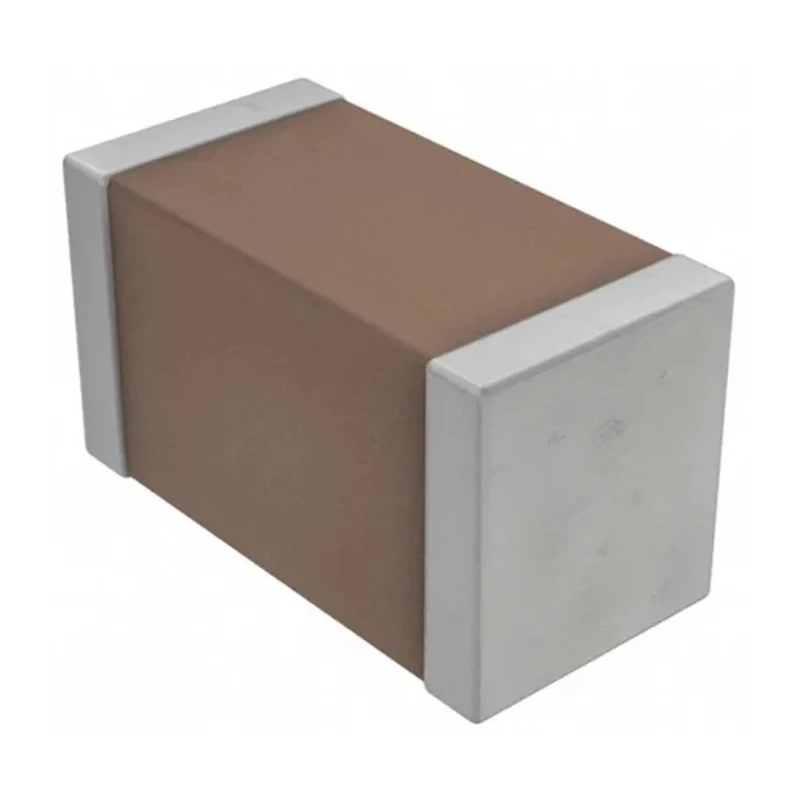

TDK 330 nF Multilayer Ceramic Capacitor 50V dc ±10 % Surface Mount 0603 CGA3E3X5R1H334K080AB



Category MLCCs - Multilayer Ceramic Capacitors Brand TDK Condition New

Specifications

Country of Origin	Japan
Voltage	50V dc
Brand	TDK
Height	0.8mm
Length	1.6mm
Model	CGA3E3X5R1H334K080AB
Packaging	Tape & Reel
Width	0.8mm
Mount Type	Surface
Series	CGA
Termination Type	Solder
Maximum Operating Temperature	85°C
Tolerance	±10 %
Capacitance	330nF
Minimum Operating Temperature	-55°C
Package/Case	0603
Dielectric	X5R
Automotive Standard	AEC-Q200
Suppression Class	Class II
TDK 330nF MLCC, 50V dc V, ±10% , SMDBrand	TDK

Key Features

Provides high reliability with low ESL and ESR for effective ripple resistance.
Features X5R dielectric material ensuring stable performance from -55°C to 85°C.
Automotive-grade AEC-Q200 qualification suitable for sensor and control unit applications.
Compact dimensions of 1.6 mm length, 0.8 mm width, and 0.8 mm height enable space-saving PCB design.
Supplied in tape and reel packaging for automated assembly processes.
Low self-heating properties make it ideal for high-accuracy electronic circuits.
Excellent frequency characteristics provide stable capacitance over a wide frequency range.

Product Description

The TDK CGA3E3X5R1H334K080AB is a high-quality 330 nF Multilayer Ceramic Capacitor designed for surface mount applications with a rated voltage of 50V dc and a tolerance of ±10 %. Manufactured with X5R dielectric, this capacitor operates reliably in temperatures ranging from -55°C to 85°C. The compact 0603 package (1.6 mm × 0.8 mm × 0.8 mm) facilitates efficient space utilization on electronic circuit boards.

Built using advanced multilayer thin ceramic dielectric technology, it ensures high capacitance in a small form factor. The low equivalent series resistance (ESR) and inductance (ESL) minimize power losses and improve ripple current handling capabilities. These capacitors exhibit excellent frequency response suitable for high-frequency circuits.

Certified to the automotive standard AEC-Q200, this capacitor is ideal for automotive electronics such as battery line smoothing, engine control modules, sensor modules, anti-lock braking systems, and infotainment systems. Beyond automotive, it is well suited for industrial, manufacturing, smart meter, solar inverter, and AC-DC charger applications.

Provides high reliability with low ESL and ESR for effective ripple resistance. Features X5R dielectric material ensuring stable performance from -55°C to 85°C. Automotive-grade AEC-Q200 qualification suitable for sensor and control unit applications.

Compact dimensions of 1.6 mm length, 0.8 mm width, and 0.8 mm height enable space-saving PCB design. Supplied in tape and reel packaging for automated assembly processes. Low self-heating properties make it ideal for high-accuracy electronic circuits.

Excellent frequency characteristics provide stable capacitance over a wide frequency range.

The product is made in Japan and engineered for precision with mature manufacturing processes guaranteeing consistent performance. It is recommended for demanding electronic designs requiring reliability and space efficiency.
