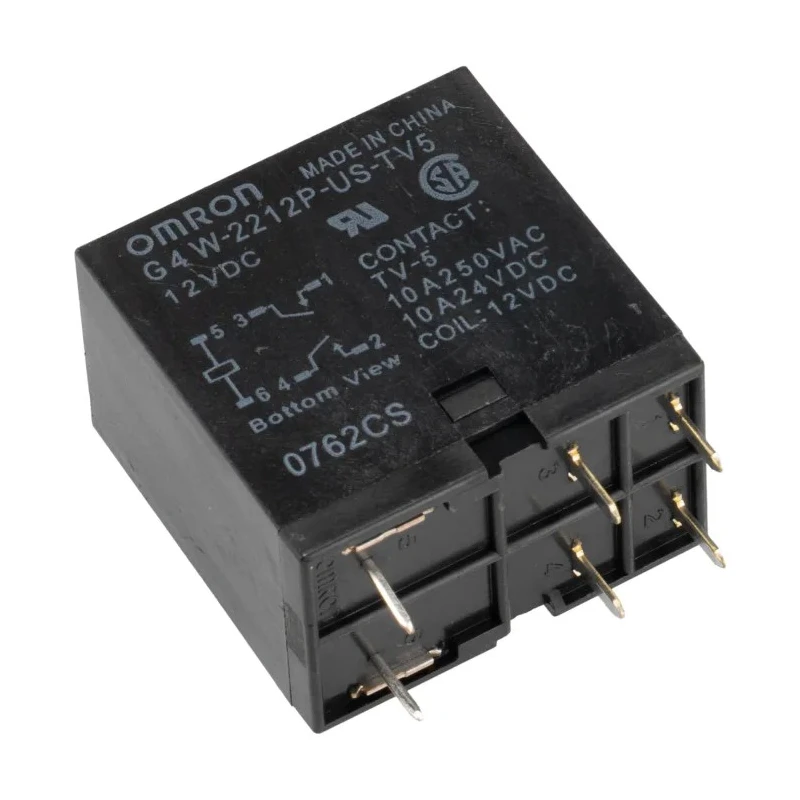

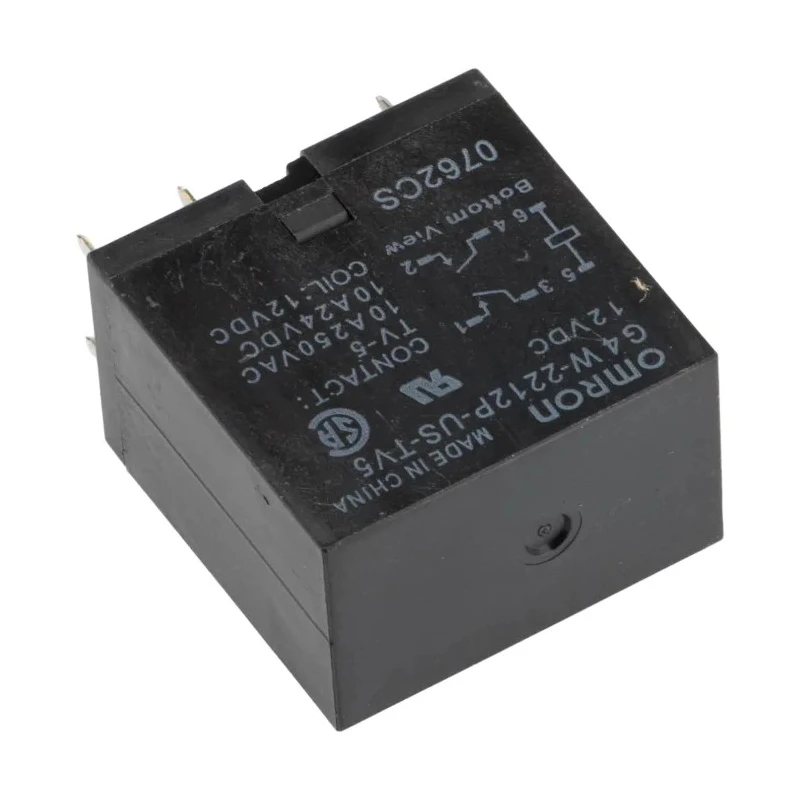

Omron PCB Power Relay 12V DC Coil 10A Switching Current DPST G4W-2212P-US-TV5 DC12
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 30.5mm |
| Length | 30.5mm |
| Model | G4W-2212P-US-TV5 DC12 |
| Width | 19.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G4W |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Standards/Approvals | CSA, RoHS, UL, VDE |
| Coil Resistance | 180Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 0.8W |
Key Features
- Features a solder terminal type suitable for PCB mounting.
- Operates within a temperature range of -25°C to 55°C.
- Built with a silver alloy contact material ensuring high conductivity and durability.
- Has a coil resistance of 180 ohms and a coil power consumption of 0.8W.
- Supports switching voltages of up to 250V AC and 24V DC.
- Conforms to industrial safety standards including CSA, RoHS, UL, and VDE approvals.
- Compact design with dimensions of 30.5mm height, 30.5mm length, and 19.5mm width.
- Ideal for automation, industrial electrical control, and signal conditioning applications.
Product Description
Omron G4W-2212P-US-TV5 DC12 PCB Power Relay is a robust and compact double pole single throw (DPST) device designed for PCB mounting and capable of switching currents up to 10A at voltages of 250V AC or 24V DC.
It features a 12V DC coil voltage with a coil resistance of 180 ohms and consumes only 0.8W power, making it energy efficient. Its silver alloy contacts ensure excellent conductivity and reliability in power switching tasks.
The relay operates within a broad temperature range from -25°C to 55°C, suitable for various industrial environments. It complies with certifications such as CSA, RoHS, UL, and VDE, guaranteeing safety and performance standards adherence.
The compact physical dimensions (30.5mm height, 30.5mm length, and 19.5mm width) allow it to fit efficiently in modern compact electrical assemblies and automation control panels. This relay is particularly suited for applications in industrial automation, power supply switching, and controlling electrical loads in manufacturing and HVAC systems.
Features a solder terminal type suitable for secure and reliable PCB mounting. Silver alloy contact material for high performance and durability. Low coil power consumption of 0.8W enhances system efficiency. Meets multiple international safety standards including CSA, RoHS, UL, and VDE approvals.
Broad operating temperature range from -25°C to 55°C ensures operational stability in harsh environments. Impulse withstand voltage of 10,000V between coil and contact improves noise immunity. Unsealed DPST types conform to TV-5 rating, ideal for power supply switching.
Enhance your industrial electrical systems with the dependable and efficient Omron G4W-2212P-US-TV5 DC12 Relay. Explore more Power Relay options and professional-grade electrical components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay can switch currents up to 10A.
It operates with a 12V DC coil voltage.
The relay has dimensions of 30.5mm in height, 30.5mm in length, and 19.5mm in width.
It operates within a temperature range of -25°C to 55°C.
This model features a double pole single throw (DPST) contact configuration.
The coil resistance is 180 ohms.
It supports switching voltages of up to 250V AC and 24V DC.
It conforms to CSA, RoHS, UL, and VDE safety standards.
The coil power consumption is 0.8W.
It features a solder terminal type suitable for PCB mounting.
The relay is built with silver alloy contact material, ensuring high conductivity.
It is ideal for automation, industrial electrical control, and signal conditioning applications.
