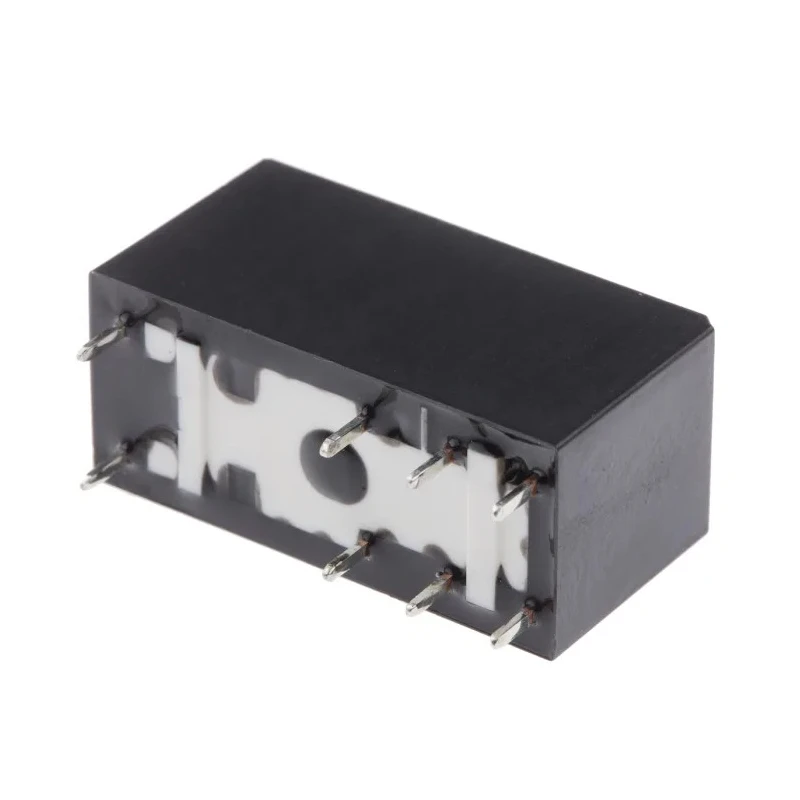

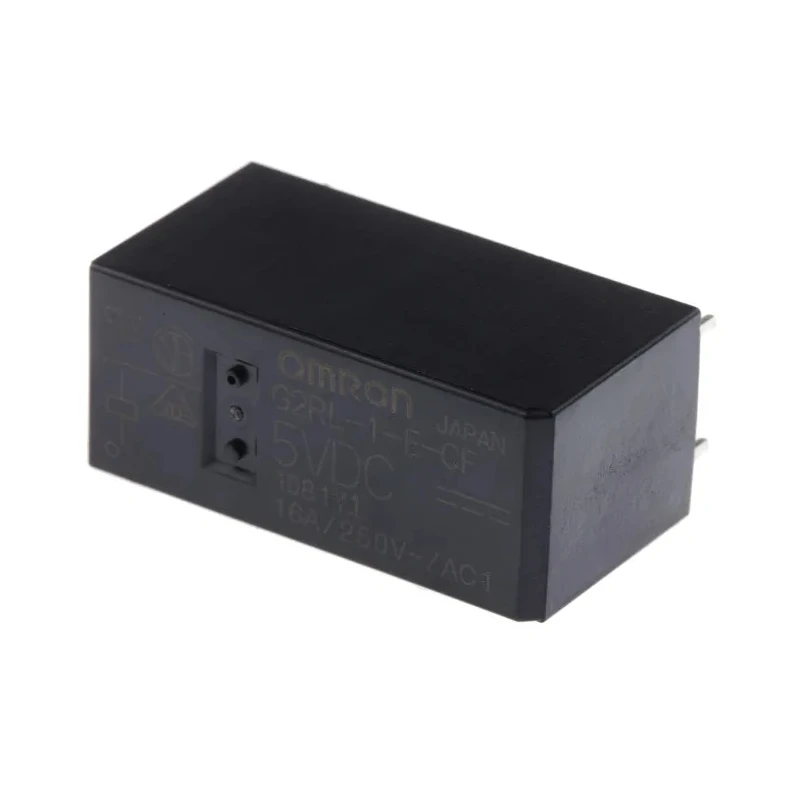

Omron PCB Power Relay 5V DC Coil 16A Switching Current SPDT G2RL-1-E-CF DC5

Omron G2RL-1-E-CF DC5 PCB Power Relay features a 5V DC coil and is designed for electrical and automation applications requiring reliable switching performance. Its SPDT (Single Pole Double Throw) contact configuration supports switching currents up to 16A, making it ideal for control circuits on printed circuit boards.

The relay's compact form factor with dimensions 29mm (length) x 12.7mm (width) x 15.7mm (height) facilitates easy PCB mounting. The coil power rating is 400mW with a coil resistance of 62.5Ω, ensuring efficient energy consumption. It is capable of switching high voltages up to 300V DC and 440V AC, offering versatility in various industrial systems.

Constructed with silver alloy contacts, the relay provides excellent conductivity with a low contact resistance of 100mΩ, enhancing signal integrity and reducing power losses. It operates reliably in temperatures ranging from -40°C to 85°C, suitable for harsh industrial environments.

This relay complies with international standards including IEC/EN 60079-15, RoHS, and VDE, guaranteeing compliance with safety and environmental regulations. The design meets EN60335-1 tracking resistance requirements with CTI greater than 250, further ensuring durable operation with excellent reliability.

Omron's G2RL Series relays are recognized under UL, CSA, and VDE certifications, making them suitable for use in industrial automation, electrical equipment, HVAC systems, machinery control, and other commercial electrical applications.

Operates with a 5V DC coil voltage providing efficient power usage. Single Pole Double Throw (SPDT) contact configuration ensures versatile switching options. Supports switching currents up to 16A for demanding electrical loads.

Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height for easy PCB mounting. Coil resistance of 62.5Ω and coil power consumption of 400mW for energy efficiency. Switching voltage capacities up to 300V DC and 440V AC for wide application ranges.

Constructed with silver alloy contacts for high conductivity and low contact resistance of 100mΩ. Operating temperature range from -40°C to 85°C suitable for industrial environments. Product complies with IEC/EN 60079-15, RoHS, and VDE standards ensuring safety and environmental compliance.
