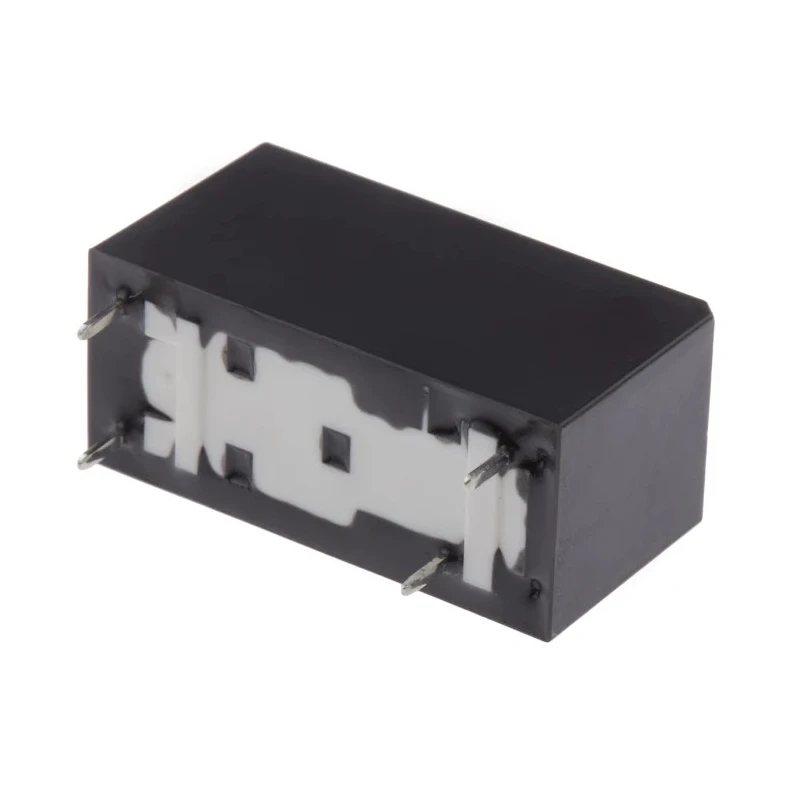

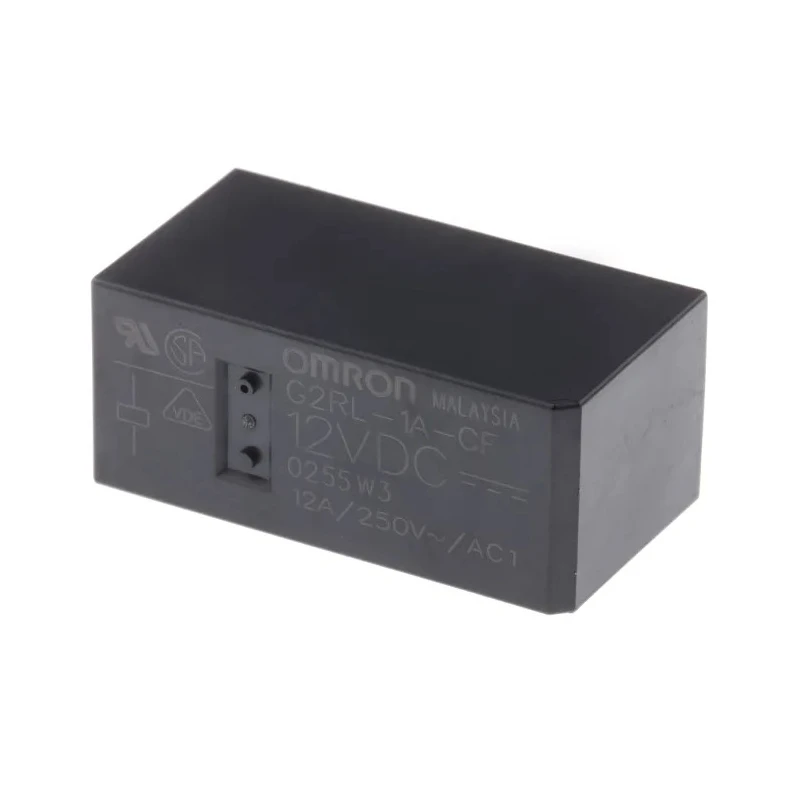

Omron PCB Power Relay 12V DC Coil 12A Switching Current SPST G2RL-1A-CF DC12

Omron G2RL-1A-CF DC12 PCB Power Relay features a 12V DC coil and is capable of switching currents up to 12A with a SPST contact configuration, ideal for electrical and automation applications.

This power relay is designed for PCB mounting using through hole terminals, facilitating easy integration into control systems and industrial machinery. Its compact dimensions of 29mm length, 15.7mm height, and 12.7mm width make it suitable for space-constrained applications.

It operates reliably across a wide temperature range from -40°C to 85°C, providing robustness in harsh industrial environments. The relay supports switching voltages up to 440V AC and 300V DC, catering to diverse electrical loads.

Constructed with silver alloy contacts, the relay ensures minimal contact resistance of 100 milliohms, enhancing performance and reducing power loss. The coil resistance of 360 ohms with a coil power of 400mW contributes to efficient operation.

Certifications including IEC/EN 60079-15, RoHS, and VDE compliance demonstrate adherence to international standards for safety and environmental regulations. The tracking resistance rating (CTI > 250) further enhances durability and electrical insulation quality.

Designed for reliable PCB mounting with through hole terminals. Supports switching voltages up to 440V AC and 300V DC. Operating temperature range from -40°C to 85°C for wide environmental tolerance. Compact low profile design with dimensions 29mm length, 15.7mm height, and 12.7mm width.

Constructed with silver alloy contacts ensuring low contact resistance of 100 milliohms. Coil resistance is 360 ohms with power consumption of 400mW. Compliant with IEC/EN 60079-15, RoHS, and VDE standards. Features tracking resistance with CTI greater than 250.

This Omron G2RL-1A-CF DC12 Power Relay is well suited for industrial, automation, electrical control, HVAC, manufacturing, and laboratory applications where reliable switching is required. Available for integration in PCB-mounted control circuits to enhance production efficiency and equipment performance.
