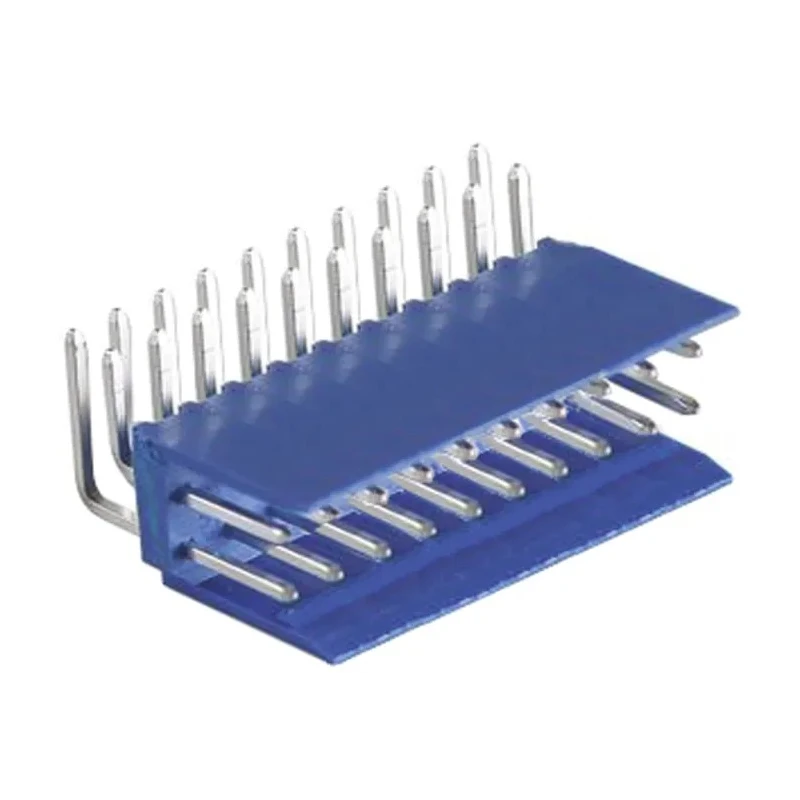

TE Connectivity AMPMODU HE14 Series Right Angle Through Hole PCB Header, 20 Contacts, 2.54 mm Pitch, 2 Rows, Shrouded HE14
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 3A |
| Model | HE14 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU HE14 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
Key Features
- Features high temperature thermoplastic housing with UL 94V-0 rating.
- Shrouded pin headers protect contacts and prevent mismating.
- Right angle orientation with 2 rows for versatile PCB mounting.
- Contact material is phosphor bronze with tin plating for durability.
- Supports up to 3A current and 500V voltage rating.
- Has integrated friction lock to ensure secure mating connections.
- Suitable for automotive, industrial, telecommunications, medical, and computing applications.
- Operates reliably between -40°C and 105°C temperature range.
Product Description
TE Connectivity HE14 Series Right Angle Through Hole PCB Header, model HE14, features 20 male contacts arranged in 2 rows with a 2.54 mm pitch. This shrouded PCB header incorporates high temperature UL 94V-0 rated thermoplastic housing to ensure excellent durability and safety. The polarized and shrouded design prevents mismating and protects the pins from physical damage.
The phosphor bronze contacts plated with tin provide excellent electrical conductivity and corrosion resistance. This header supports a maximum current of 3A and voltage rating of 500V, making it reliable for demanding electronic applications.
Designed for through hole mounting with a solder termination type, the connector includes a tail pin length of 2.9 mm for secure PCB attachment. The right angle orientation and double row configuration allow flexibility in circuit board design and space management.
This connector is fitted with an integrated friction lock ensuring a secure connection during operation, preventing accidental disconnections. The components operate within a temperature range of -40°C to +105°C, making them suitable for harsh environments.
Applications for the AMPMODU HE14 interconnect system include automotive control systems, industrial and test equipment, computer hardware, telecommunications, medical instrumentation, storage solutions, and various consumer appliances.
High temperature thermoplastic housing with UL 94V-0 rating. Shrouded design for pin protection and polarization to prevent mismating. Right angle, 2-row, 20-contact configuration with 2.54 mm pitch. Phosphor bronze contacts with tin plating for reliability.
3A current rating and 500V voltage rating for diverse use cases. Through hole mount with solder termination and integrated friction lock. Operating temperature from -40°C to 105°C for industrial reliability. Suitable for automotive, industrial, telecom, medical, and computing applications.
This TE Connectivity AMPMODU HE14 PCB header is a robust and versatile interconnect solution engineered for industrial and commercial electronic assemblies. Browse more PCB Headers and connectors on EnvMart for your electronic projects and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 3A and has a voltage rating of 500V, making it suitable for various electronic applications.
The HE14 series header features a 2.54 mm pitch and has 20 male contacts arranged in 2 rows.
It has a housing made of high temperature thermoplastic and contacts made of phosphor bronze with tin plating for enhanced electrical conductivity and corrosion resistance.
This unit operates reliably within a temperature range of -40°C to +105°C, suitable for harsh environments.
It is designed for through hole mounting with a solder termination type, ensuring secure attachment to the PCB.
Yes, it has a shrouded design that protects the pins and prevents mismating during connection.
The tail pin length is 2.9 mm, which aids in secure PCB attachment.
It is suitable for a variety of applications including automotive, industrial, telecommunications, medical instrumentation, and computing.
This model utilizes a wire-to-board connector system, facilitating connections between wires and printed circuit boards.
The HE14 series header features a right angle orientation, allowing for versatile PCB mounting options.
Yes, it includes an integrated friction lock to ensure secure mating connections and prevent accidental disconnections.
The country of origin for this model is India.
