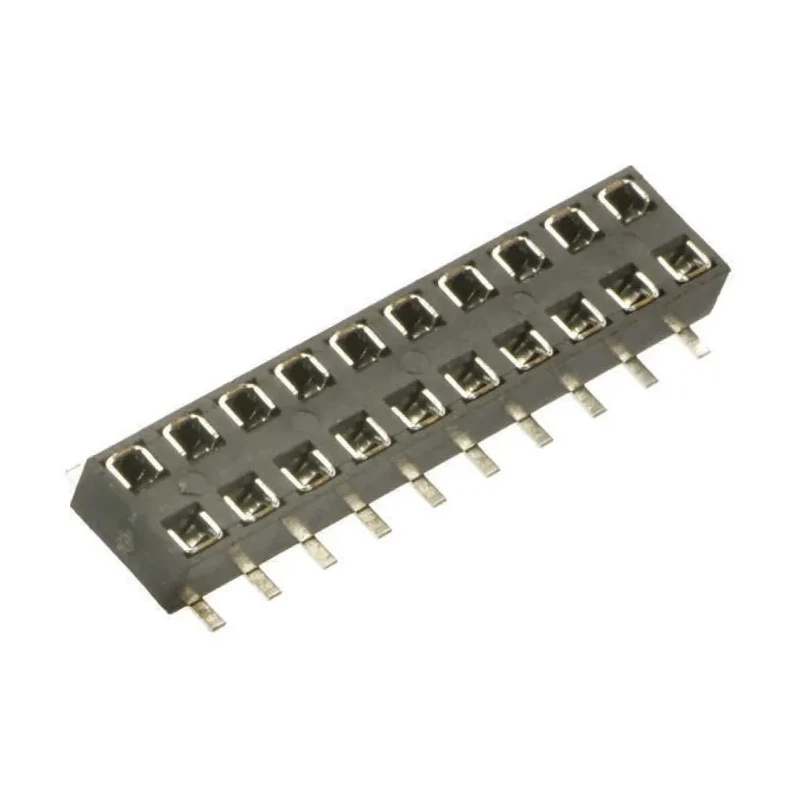

HARWIN M22 Series Straight Surface PCB Socket, 20-Contact, 2 Row, 2 mm Pitch, 1.5A Current M22-6361042

HARWIN M22-6361042 Straight Surface PCB Socket is a 20-contact, 2-row connector with 2 mm pitch and 1.5A current rating designed for reliable and compact board-to-board applications. It features a Nylon housing with UL94V-0 high temperature thermoplastic material, offering excellent heat resistance during reflow soldering processes. The gold plated bronze contacts ensure durable and low resistance electrical connections, supporting up to 300 mating cycles which enhances connector reliability.

The straight orientation surface mount socket is engineered for environments requiring robust connections such as embedded PCs, motherboards, large electronic systems, consumer electronics, communications devices, drives and controls, and industrial monitoring systems. It delivers a voltage withstand rating of 1 kV and operates efficiently within a temperature range from -40°C to 105°C, meeting industrial thermal requirements.

Constructed with a compact design, the M22 series socket allows increased PCB density while accommodating height restrictions. The dual-row 20 contact configuration ensures versatility for various electronic designs and applications. The solder termination type guarantees secure mechanical and electrical attachment to the PCB.

Applications span a broad range of industries including consumer electronics, communications equipment, industrial monitoring, and personal computing. Its robust material characteristics and plating maintain performance integrity under demanding conditions.

Compact 20-contact 2-row 2 mm pitch design for high-density PCBs. High temperature liquid crystal polymer housing with UL94V-0 rating ensures thermal stability. Gold plated dual beam bronze contacts for enhanced conductivity and durability.

Supports up to 300 mating operations for long-term reliability. Solder termination provides secure and stable PCB connections. Rated for 1.5A current and 1 kV voltage withstand for diverse electronic applications. Operating temperature range from -40°C to 105°C suitable for industrial use.

Designed for board-to-board connector systems with female contact gender.

This product is an industry-standard PCB Socket ideal for embedded systems, industrial controls, communications, and consumer electronics requiring reliable connector solutions. Browse EnvMart for the full range of HARWIN connectors and electronic components.
