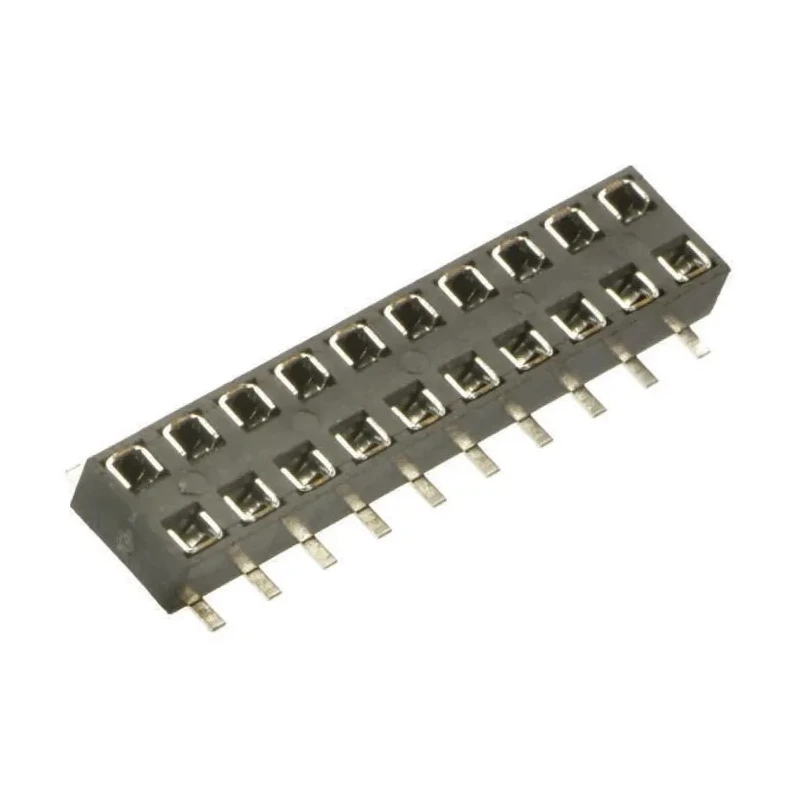

HARWIN M22 Series Straight Surface PCB Socket, 20-Contact, 2 Row, 2 mm Pitch, 1.5A, 1kV, Nylon Housing M22-6361042

HARWIN M22-6361042 is a straight surface mount PCB socket from the M22 Series featuring 20 contacts arranged in 2 rows with a precise 2 mm pitch. Its nylon housing is designed to withstand high temperature reflow soldering processes and meets UL94V-0 high temperature standards, making it suitable for critical industrial and electronic applications.

The socket features highly reliable gold-plated bronze contacts with a dual beam design, enhancing electrical connection stability and durability, rated for 1.5 amperes and 1kV voltage tolerance. This ensures performance in demanding environments with an operating temperature range extending from -40°C to 105°C. The connector supports up to 300 reliable mating cycles, providing longevity in applications requiring frequent assembly and disassembly.

This connector is ideal for use in board-to-board applications requiring compact connectors with high density and height constraints, including consumer electronics, communications gear, industrial monitoring equipment, embedded PCs, motherboards, and large electronic systems.

Fine 2 mm pitch allows increased PCB density and compact layout. High-temperature nylon housing complies with UL94V-0 for safety and durability. Durable gold-plated dual beam bronze contacts improve electrical reliability.

Rated current of 1.5A and voltage withstand of 1kV. Surface mount type with straight orientation eases assembly. Wide operating temperature range from -40°C to 105°C. Up to 300 mating cycles for mechanical durability. Widely used in industrial, consumer electronics, and communications applications.

The M22 series PCB socket offers a reliable connection solution for modern electronic designs where high performance and compact size are essential. Browse the Electronics Components category on EnvMart for more connectors and PCB Sockets from leading brands like HARWIN.
