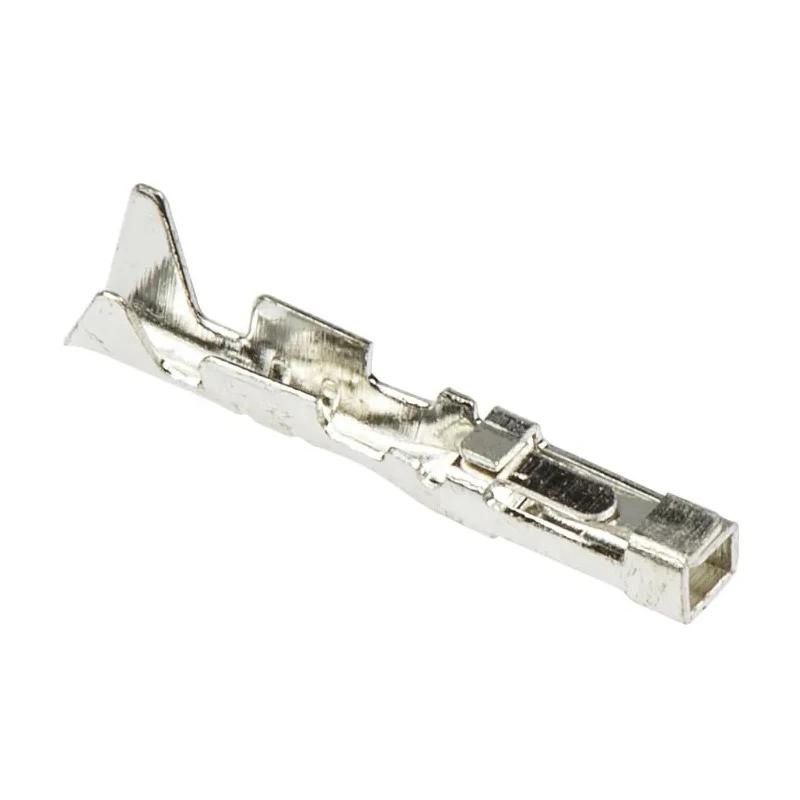

HARWIN M20 Series Female Crimp Terminal, Brass Contact with Tin Plating, Min 30 AWG Max 22 AWG, Crimp M20-1180046

HARWIN M20-1180046 Female Crimp Terminal is a precision electrical connector component manufactured for industrial and electronic applications. It is specifically designed for M20 series connector housings, providing secure and durable wire termination for wire sizes ranging from 30 AWG minimum to 22 AWG maximum. Constructed with a brass contact material featuring tin plating, the terminal offers corrosion resistance and reliable electrical conductivity.

The terminal is rated for a current capacity of 3 amperes and has a maximum contact resistance of 20 milliohms, ensuring minimal voltage loss and efficient performance under load. It operates within a temperature range of -25°C to 85°C, making it suitable for various environmental conditions encountered in manufacturing, industrial automation, and electronic equipment assembly.

The design incorporates a dual beam mechanism that improves retention force and connection reliability, thereby reducing the risk of accidental disconnection. This feature also enhances the repeatability of connections over multiple mating cycles, contributing to long-term durability in rigorous industrial use.

Manufactured in Taiwan, Province Of China, this crimp terminal complies with established quality manufacturing practices, although no formal standards or approvals are declared. It is intended for use with the HARWIN M20 Connector Housing and is compatible with recommended crimp tools for optimal wire termination quality.

The contact is made of brass with tin plating for corrosion resistance. It features crimp termination suitable for M20 connector housings. Operates reliably within a temperature range of -25°C to 85°C. The maximum contact resistance is 20 milliohms ensuring efficient conductivity.

Dual beam design enhances connector retention and durability. Suitable for use in industrial and electronic applications requiring precise wire termination. Manufactured in Taiwan, Province Of China with quality standards adherence.

Compatible with crimp tools such as stock number 717-3666 for optimal installation. No certifications or approvals declared for this product.

This female crimp terminal from HARWIN is an essential component for electronic assembly, cable harnessing, and industrial automation, providing a reliable and enduring electrical connection. Browse the EnvMart Electronics Components category to explore more HARWIN connectors and complementary products for all your connection needs.
