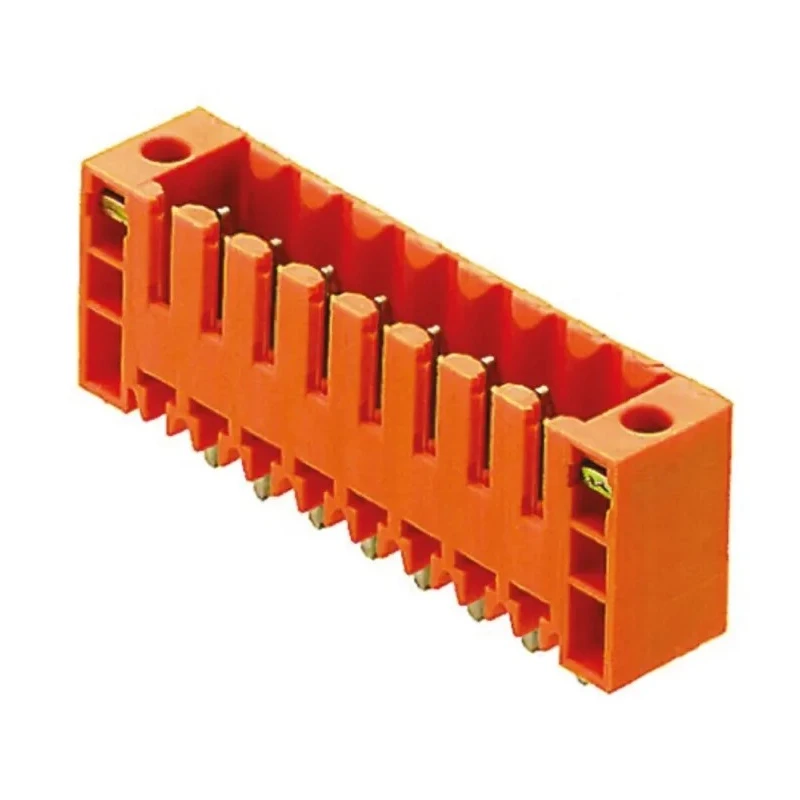

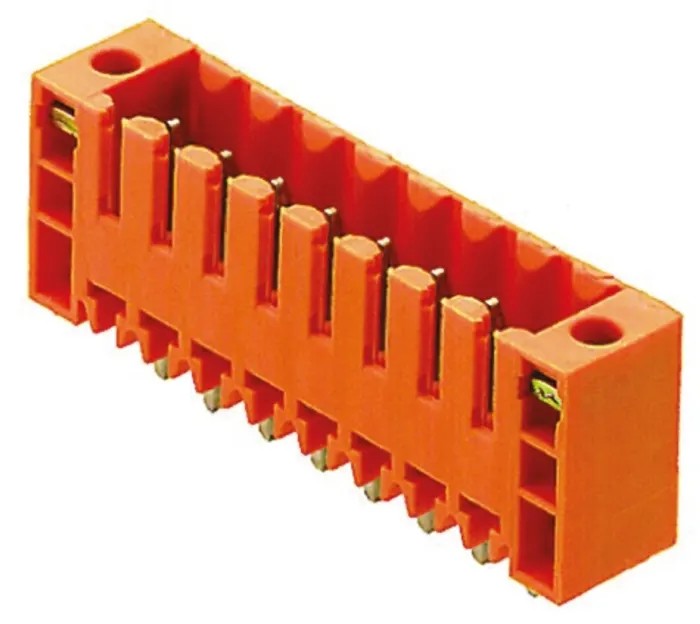

Weidmüller OMNIMATE SL Series Pluggable Terminal Block, 7-Contact, 3.5 mm Pitch, 1 Row, 320 V, 17 A, Polybutylene 1607550000

Free Delivery in India | Lowest Global Shipping Charges

Weidmüller OMNIMATE SL Series Pluggable Terminal Block, 7-Contact, 3.5 mm Pitch, 1 Row, 320 V, 17 A, Polybutylene 1607550000

Name: Weidmüller OMNIMATE SL Series Pluggable Terminal Block, 7-Contact, 3.5 mm Pitch, 1 Row, 320 V, 17 A, Polybutylene 1607550000
Brand: Weidmuller
SKU: 130150
Price: 4.43 USD
Availability: InStock



Category Pluggable Terminal Block Brand Weidmuller Condition New

Specifications

Country of Origin	Germany
Voltage	320V
Brand	Weidmüller
Colour	Orange
Orientation	Straight
Current	17A
Length	3.2mm
Depth	7.5mm
Width	31.5mm
Housing Material	Polybutylene Terephthalate
Series	OMNIMATE SL
Number of Rows	1
Pitch	3.5mm
Standards/Approvals	CSA, cURus
Number of Contacts	7
Connector Gender	Male
Wire Connection Method	Solder

Key Features

Supports a voltage rating of 320 V and current carrying capacity of 17 A.
Features an orange Polybutylene Terephthalate housing that ensures high durability.
Designed for solder wire connection method providing strong and reliable joints.
Includes male connector gender with straight orientation suitable for PCB mounting.
Complies with CSA and cURus standards ensuring safety and reliability.
Compact dimensions with 31.5 mm width, 7.5 mm depth and 3.2 mm solder pin length.
Part of the OMNIMATE SL series, ideal for industrial and electronics applications.

Product Description

Weidmüller 1607550000 OMNIMATE SL Series Pluggable Terminal Block is a high-quality connector designed for industrial, electronic, and power connector applications. This 7-contact terminal block features a 3.5 mm pitch and a 1-row design optimized for PCB assembly, providing reliable connectivity for electrical circuits.

The housing is made from durable Polybutylene Terephthalate in an orange color, which provides robust insulation and mechanical strength. The terminal block supports a voltage rating of 320 V and can carry currents up to 17 A. It includes a male connector with a straight orientation, suited for wave soldering processes with a solder pin length of 3.2 mm, compatible with PCB thicknesses of 1.6 mm to 2.0 mm.

This product complies with CSA and cURus standards, ensuring it meets stringent safety and quality requirements. Its compact dimensions (31.5 mm width, 7.5 mm depth) allow it to be incorporated into space-sensitive assemblies. The OMNIMATE SL series offers cost-effective, space-saving solutions for vertical or horizontal PCB headers, including options with polarization pins to avoid mismatched connections.

The design suits industrial automation, electronic manufacturing, and power distribution environments. Its robust construction and standardized pitch ensure compatibility with a wide range of mating harness connectors and terminal screw terminals including tension clamp or rising clamp types.

Supports 7 electrical contacts with 3.5 mm pitch and 1-row layout. Robust Polybutylene Terephthalate orange housing for insulation and mechanical strength. Rated for 320 V and 17 A current for reliable electrical performance.

Male straight connector suitable for wave soldering with 3.2 mm pin length. Meets CSA and cURus certification standards. Compact size with 31.5 mm width and 7.5 mm depth for space-efficient installations. Cost-effective OMNIMATE SL series offering secure PCB connections.

Set includes the Pluggable Terminal Block as per part number 1607550000. Ideal for industrial, electronics, manufacturing, and power connector applications. Browse related Electronics Components on EnvMart for compatible accessories and terminal block solutions.
