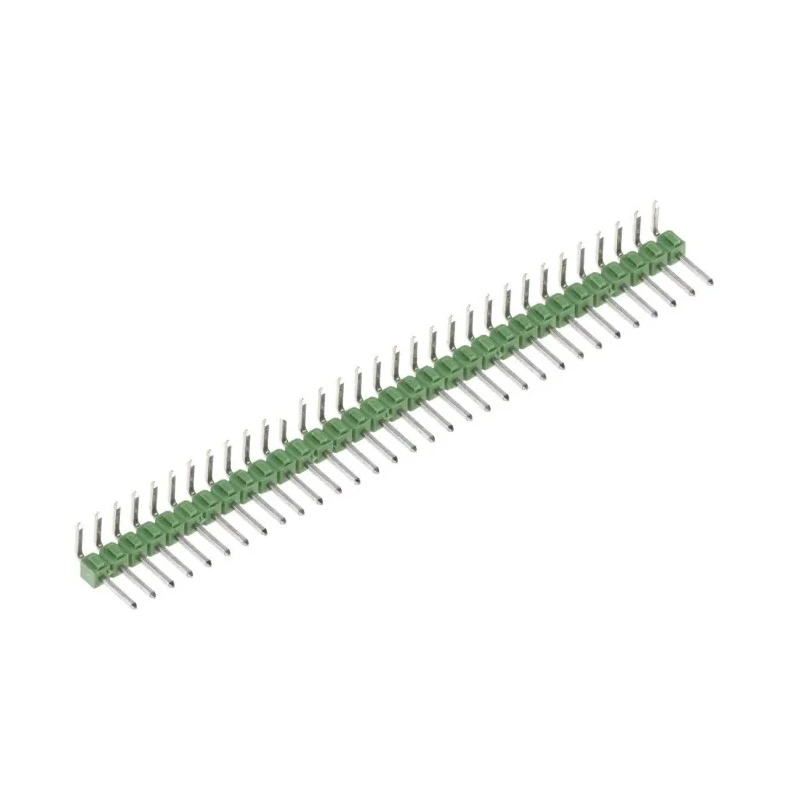

TE Connectivity AMPMODU MOD II Series Right Angle Through Hole Pin Header 32 Contacts 2.54mm Pitch 1 Row 3-826949-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 32 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 5.8mm |
Key Features
- This pin header features a single row and right angle orientation for versatile PCB assembly.
- Constructed with thermoplastic housing and brass contacts plated with tin for durability.
- Supports operating temperatures from -65°C to 105°C suitable for industrial environments.
- Designed for through-hole mounting with solder termination, ideal for board-to-board and wire-to-board connections.
- Contacts have a mating pin length of 5.8 mm and tail pin length of 3.2 mm ensuring secure connections.
- The header is unshrouded with male contact gender for compatibility with various connectors.
- Applicable for automotive, telecommunications, industrial equipment, medical instruments, and more.
Product Description
TE Connectivity 3-826949-2 AMPMODU MOD II Series Right Angle Through Hole Pin Header offers a high-quality interconnect solution featuring 32 contacts, 2.54 mm pitch, and a single row configuration. This unshrouded right angle header is designed for through-hole mounting, providing robust and reliable electrical connections on PCBs.
Its thermoplastic housing enhances mechanical strength while maintaining lightweight design. Brass contacts plated with tin ensure excellent conductivity and corrosion resistance. The contact gender is male, and the termination type uses soldering for secure attachment.
With an operational temperature range from -65°C to 105°C, this pin header is suitable for demanding industrial, automotive, telecommunications, medical instrumentation, and test equipment applications. The 5.8 mm mating pin length and 3.2 mm tail pin length facilitate reliable engagement and solder joint integrity.
The AMPMODU MOD II series allows for modular design, where the breakaway header can be customized to the size needed, saving installation time and costs. Its compatibility with both board-to-board and wire-to-board connector systems adds to its versatility.
This pin header features a single row and right angle orientation for versatile PCB assembly. Constructed with thermoplastic housing and brass contacts plated with tin for durability. Supports operating temperatures from -65°C to 105°C suitable for industrial environments.
Designed for through-hole mounting with solder termination, ideal for board-to-board and wire-to-board connections. Contacts have a mating pin length of 5.8 mm and tail pin length of 3.2 mm ensuring secure connections. The header is unshrouded with male contact gender for compatibility with various connectors.
Applicable for automotive, telecommunications, industrial equipment, medical instruments, and more.
This PCB connector is a key component in automation and control systems, offering reliable performance and ease of integration. TE Connectivity remains a trusted leader in electronic components, providing solutions for electronic manufacturing and design.
Explore more PCB Headers and connectors from TE Connectivity and other brands on EnvMart for your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this pin header is 2.54 mm.
This pin header features 32 contacts.
The maximum operating temperature for this connector is 105°C.
It supports through-hole mounting with solder termination.
The housing is made of thermoplastic, and the contacts are brass plated with tin.
The tail pin length is 3.2 mm.
This pin header is suitable for automotive, telecommunications, industrial equipment, and medical instruments.
The mating pin length is 5.8 mm.
This pin header is unshrouded.
The contact gender is male.
It is compatible with both board-to-board and wire-to-board connector systems.
The minimum operating temperature is -65°C.
