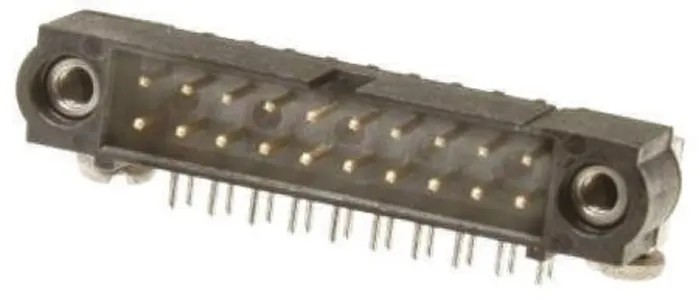

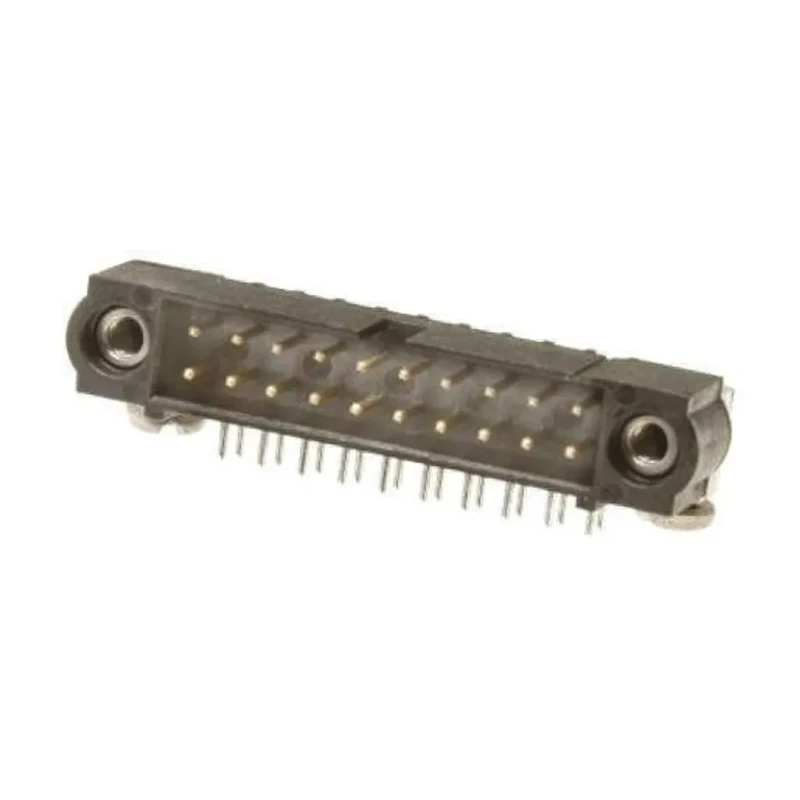

HARWIN Datamate J-Tek Series Right Angle Through Hole PCB Header 34 Contacts 2 mm Pitch 2 Row Shrouded M80-5403442

HARWIN M80-5403442 Datamate J-Tek Series Right Angle Through Hole PCB Header is a high reliability connector designed for demanding industrial and electronic applications. Featuring 34 gold-plated phosphor bronze contacts arranged in 2 rows with a 2 mm pitch, this shrouded PCB header provides robust connectivity for board-to-board and wire-to-board systems. The connector housing is made from durable polyphenylene sulphide, suitable for harsh environments often found in industrial, manufacturing, and electronic assembly settings.

This PCB header supports currents up to 3A and voltage ratings of 120V, making it ideal for power and signal transmission in compact electronic devices. Its right angle and through-hole mounting style enable secure mechanical and electrical stability on printed circuit boards. The connector’s operating temperature range from -55°C to 125°C facilitates performance in a wide variety of demanding temperature conditions.

Designed and manufactured under stringent quality standards in the United Kingdom, the M80-5403442 model belongs to Harwin’s Datamate J-Tek Series, widely recognized for high endurance and vibration resistance. Its male contact gender and 3 mm tail pin length ensure effective solder connections. The connector system’s polarization features prevent mis-mating, enhancing safety and reliability in complex assembly applications.

This connector series is suitable for industrial, laboratory, manufacturing, and commercial electronics where durable, reliable PCB connections are critical. Applications include instrumentation, control systems, and rugged electronic modules.

Constructed with polyphenylene sulphide housing ensuring durability. Uses gold-plated phosphor bronze contacts for excellent conductivity. Rated for 3A current and 120V voltage handling. Designed for through-hole mounting with right angle orientation.

Operates reliably between -55°C and 125°C temperatures. Features male contact gender with 3 mm tail pin length for strong solder termination. Suitable for board-to-board and wire-to-board connector systems. Complies with international standards including BS9525-F0033 and MIL C 55302.

Manufactured in the United Kingdom ensuring high quality. Explore Harwin connectors and compatible PCB Headers in EnvMart's comprehensive catalog for reliable industrial electronic connection solutions.
