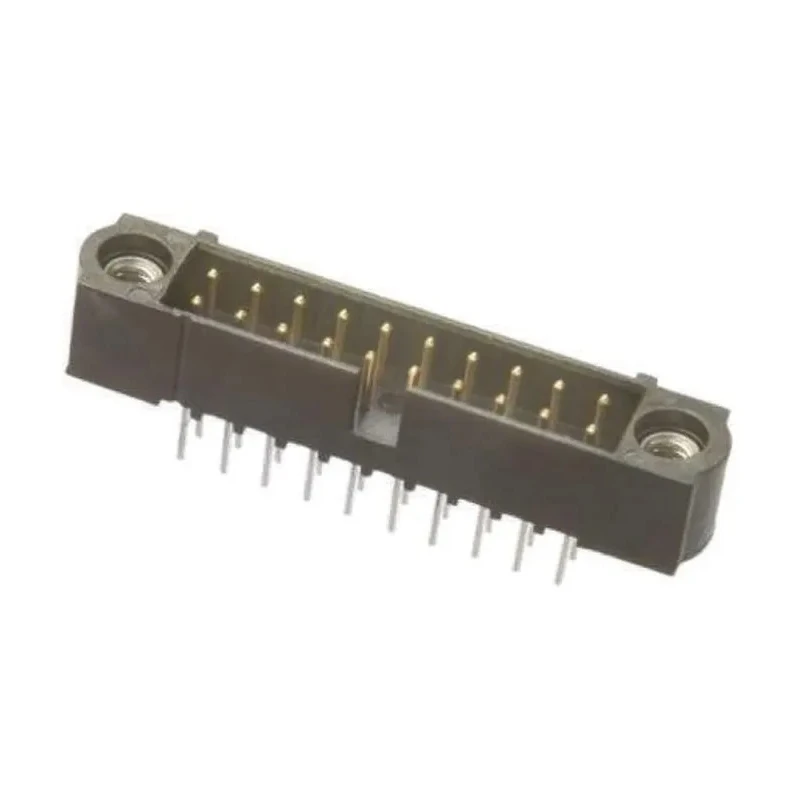

HARWIN Datamate J-Tek Series Straight Through Hole PCB Header, 34 Contacts, 2 mm Pitch, 2 Row, Shrouded M80-5003442
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 120V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 3A |
| Model | M80-5003442 |
| Mount Type | Through Hole |
| Housing Material | Polyphenylene Sulphide |
| Contact Material | Phosphor Bronze |
| Series | Datamate J-Tek |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 34 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3mm |
Key Features
- Features 34 gold-plated phosphor bronze male contacts arranged in 2 rows.
- Constructed with durable polyphenylene sulphide housing for long-lasting performance.
- Shrouded design ensures connector protection and polarization.
- Supports up to 3A current and operates between -55°C to 125°C.
- Through-hole mount type with 3 mm tail pin length for solder termination.
- Ideal for high vibration, shock, and acceleration environments requiring high mating cycles.
- Meets standards BS9525-F0033, MIL C 55302, and CEC 75101-008.
Product Description
HARWIN M80-5003442 Datamate J-Tek Series Straight Through Hole PCB Header features a robust and high-reliability design suitable for demanding electronics applications. With 34 male contacts arranged in two rows at a 2 mm pitch, this shrouded PCB header ensures secure board-to-board and wire-to-board connections.
The polyphenylene sulphide housing enhances durability while providing polarization and shrouding for connection integrity. Gold-plated phosphor bronze contact material with a 4-finger Beryllium Copper design guarantees excellent electrical performance and resistance to performance degradation even after numerous mating cycles.
This connector supports a maximum current of 3A and can operate in extreme temperatures ranging from -55°C to 125°C, making it ideal for industrial, aerospace, and other harsh environment applications where safety and reliability are critical.
Designed for through-hole mounting with a 3 mm tail pin length and solder termination, the M80-5003442 series is compatible with known industry equivalents and supports a variety of applications including board mounting with optional jackscrews and board mounts in related series variants.
This product complies with BS9525-F0033, MIL C 55302, and CEC 75101-008 standards, indicating its suitability for high-quality, certified electronic component usage. 34 gold-plated phosphor bronze contacts arranged in 2 rows at 2 mm pitch.
Durable polyphenylene sulphide shrouded housing for protection and polarization. Rated for 3A current, suitable for harsh environments. Operating temperature from -55°C to 125°C. Through-hole mounting with 3 mm tail pin solder termination.
Meets BS9525-F0033, MIL C 55302, and CEC 75101-008 certifications. Ideal for industrial, aerospace, and commercial electronics applications.
Choose HARWIN Datamate J-Tek Series PCB Headers for reliable, high-performance connection solutions in electrical and electronic manufacturing and repair workflows. Browse more in our PCB Headers category for compatible components and additional series options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HARWIN Datamate J-Tek Series PCB header supports a maximum current of 3A.
This model operates within a temperature range of -55°C to 125°C.
The M80-5003442 features 34 gold-plated phosphor bronze male contacts arranged in 2 rows.
It utilizes a through-hole mounting type with a tail pin length of 3 mm for solder termination.
The housing is made of polyphenylene sulphide, and the contacts are made of gold-plated phosphor bronze.
Yes, it is designed for high vibration, shock, and acceleration environments requiring high mating cycles.
It meets the standards BS9525-F0033, MIL C 55302, and CEC 75101-008.
The contacts are arranged at a pitch of 2 mm.
This connector supports board-to-board and wire-to-board connections.
The orientation of this model is straight.
The contact gender of this model is male.
The HARWIN Datamate J-Tek Series PCB header is manufactured in the United Kingdom.
