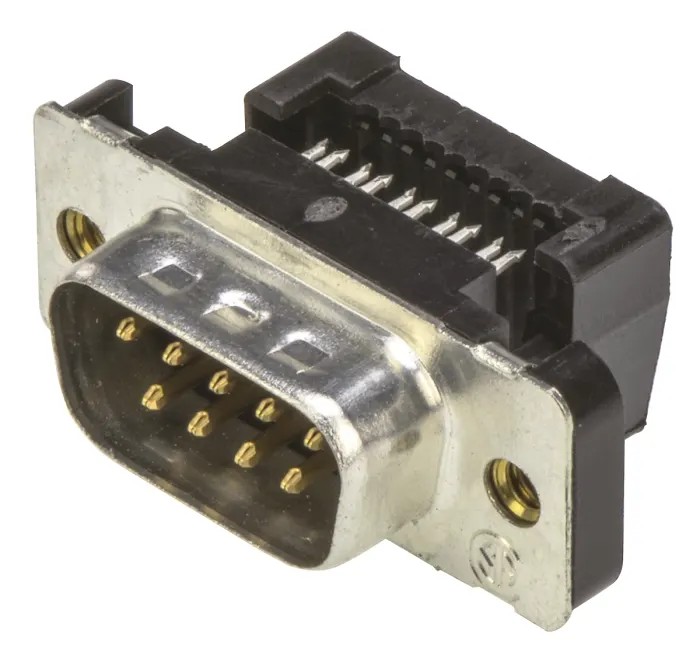

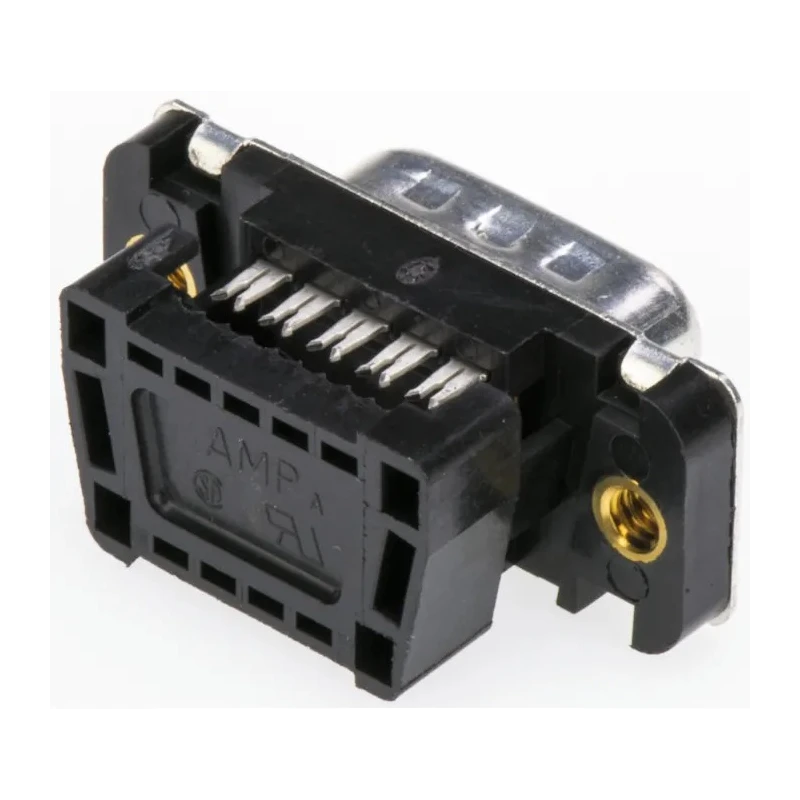

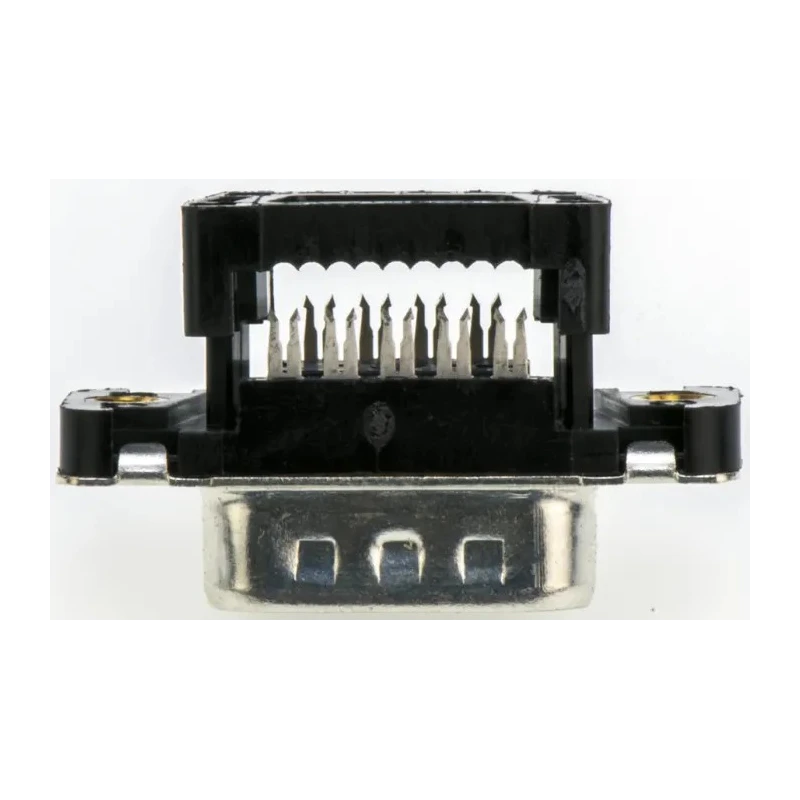

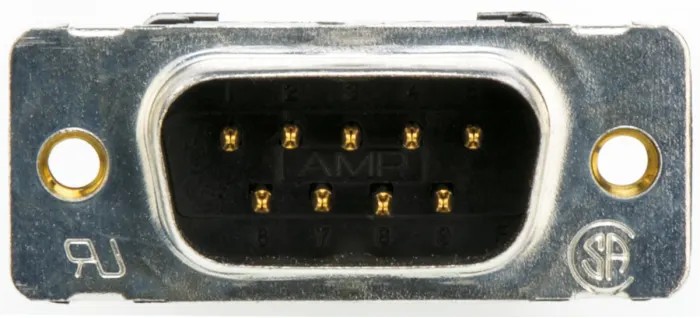

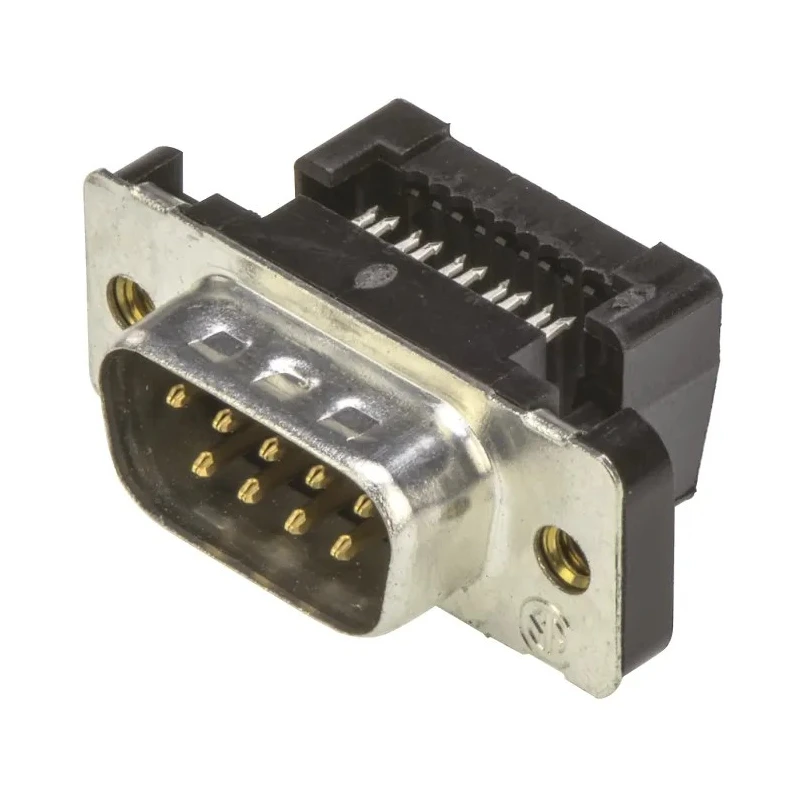

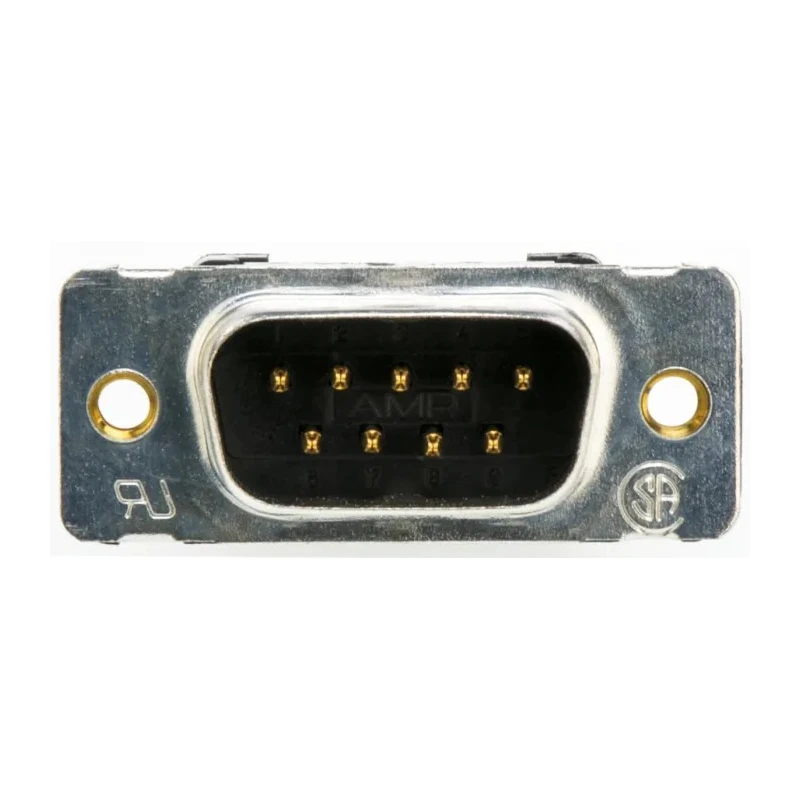

TE Connectivity Amplimite HDF-20 9 Way Straight 2.76 mm Pitch Cable D-Sub Connector Male 1658608-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1.25A |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Phosphor Bronze |
| Series | Amplimite HDF-20 |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.76mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Connector Gender | Male |
| Contact Size | 20 mm |
| Connector Type D | D-Sub |
| D-Sub Shell Size | DS-1 |
Key Features
- Designed with 9 contacts providing a 1.25A current rating.
- Features a straight cable mount type with male connector gender and DS-1 shell size.
- Constructed with a steel housing and phosphor bronze contacts for durability.
- Operates at up to 30 volts with temperature range from -55°C to 105°C.
- Termination type is Insulation Displacement Connection (IDC) compatible with flat ribbon cables on 2.76 mm pitch spacing.
- Ideal for use in electronic, industrial, and telecommunications applications.
- Compliant with the Amplimite HDF-20 series standard ensuring compatibility across systems.
- Gold over nickel plating on contacts enhances corrosion resistance and signal integrity.
Product Description
TE Connectivity 1658608-4 Amplimite HDF-20 9 Way Straight 2.76 mm Pitch Cable D-Sub Connector Male is a high-quality connector designed for secure and reliable connections in demanding electronic environments. Featuring 9 contact pins arranged in a straight orientation and a DS-1 shell size, this male cable mount connector is part of the Amplimite HDF-20 series known for low profile and robust construction.
The connector includes a steel housing with gold over nickel plated phosphor bronze contacts, providing excellent mechanical strength, electrical conductivity, and corrosion resistance. The 2.76 mm pitch IDC termination type allows quick and secure connections to flat ribbon cables, suitable for 28 and 26 AWG cables on 1.27 mm centers.
Operating voltage is rated at 30 volts with a current capacity of 1.25A, and it withstands temperature ranges from -55° C to 105° C, making it suitable for harsh industrial, manufacturing, and telecommunications settings. This connector mates with HD-20 Board Mount, HDP, and HDE series connectors (sizes 1-4), offering versatile compatibility.
The product is manufactured to stringent quality standards, ensuring durability and consistent performance in electronic components, power connections, and control gear applications. Strain relief, screwlocks, and matching accessories are available separately to enhance installation and longevity.
Designed with 9 contacts providing a 1.25A current rating. Features a straight cable mount type with male connector gender and DS-1 shell size. Constructed with a steel housing and phosphor bronze contacts for durability.
Operates at up to 30 volts with temperature range from -55°C to 105°C. Termination type is Insulation Displacement Connection (IDC) compatible with flat ribbon cables on 2.76 mm pitch spacing. Ideal for use in electronic, industrial, and telecommunications applications.
Compliant with the Amplimite HDF-20 series standard ensuring compatibility across systems. Gold over nickel plating on contacts enhances corrosion resistance and signal integrity.
This connector is well-suited for industrial automation, laboratory electronics, telecommunications equipment, and other environments demanding reliable cable connections. Explore TE Connectivity products and related D-Sub Connector accessories on EnvMart to meet your connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 1.25A.
The maximum operating voltage for this connector is 30 volts.
It can operate within a temperature range from -55°C to 105°C.
It uses an Insulation Displacement Connection (IDC) termination type, compatible with flat ribbon cables on a 2.76 mm pitch.
This connector features 9 contacts.
The housing is made of steel, and the contacts are constructed from phosphor bronze with gold over nickel plating.
The shell size of this connector is DS-1.
This model features a straight orientation.
It is suitable for electronic, industrial, and telecommunications applications.
This connector is compatible with flat ribbon cables, specifically suitable for 28 and 26 AWG cables on 1.27 mm centers.
The brand of this connector is TE Connectivity.
Yes, it is compliant with the Amplimite HDF-20 series standard, ensuring compatibility across systems.
