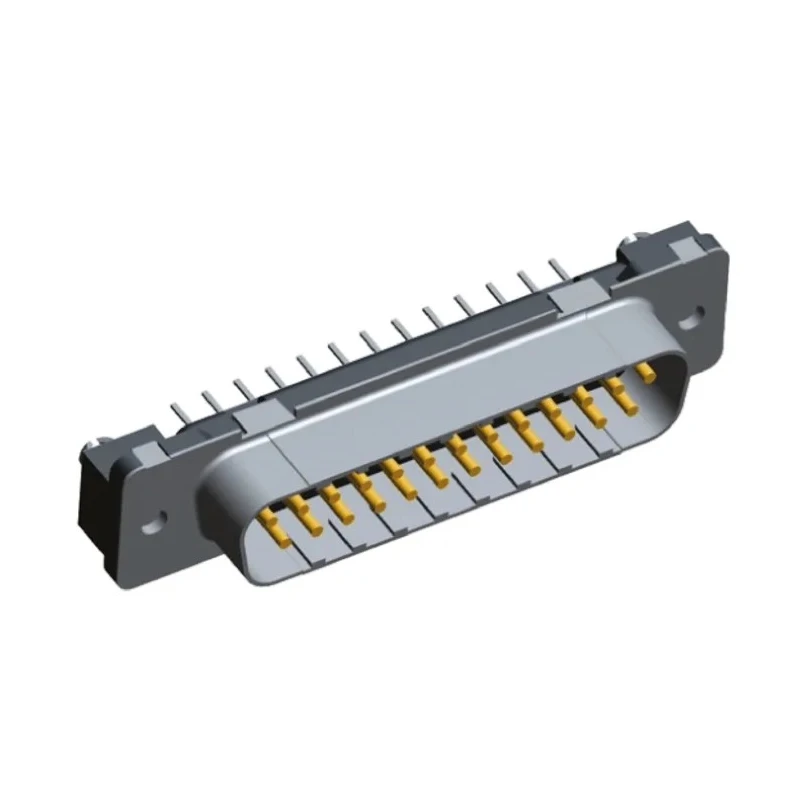

TE Connectivity AMPLIMITE HDP-20 25 Way Straight 2.76 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC 1-338311-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 6A |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | AMPLIMITE HDP-20 |
| Mounting Hardware | 4 to 40 UNC Threaded Insert |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.76mm |
| Contact Plating | Gold |
| Number of Contacts | 25 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | D-Sub |
Key Features
- Contains 25 male contacts with gold-plated phosphor bronze material for reliable conductivity.
- Operating temperature range from -55°C to 105°C ensures durability under extreme conditions.
- Features a straight orientation with a 2.76 mm pitch for standard PCB mounting.
- Mounts through hole with 4 to 40 UNC threaded insert hardware for secure installation.
- Compatible with the AMPLIMITE HDP-20 series connectors ensuring industry-standard performance.
Product Description
TE Connectivity 1-338311-2 AMPLIMITE HDP-20 25 Way Straight 2.76 mm Pitch Through Hole D-Sub Connector is a high-quality PCB mounting plug style header designed for use in electronic applications requiring reliable and robust connections.
This connector features 25 male contacts made of gold-plated phosphor bronze to ensure excellent electrical conductivity and long-term performance even in harsh environments. Its polyethylene terephthalate housing provides durable insulation, while the tin plated steel shell offers mechanical protection.
Designed for through hole mounting, the connector includes 4 to 40 UNC threaded inserts, securing it firmly to the PCB. The straight orientation with a precise 2.76 mm pitch makes it compatible with standard AMPLIMITE HDP-20 series connectors and suitable for various electronic equipment assemblies.
The product supports operating temperatures from -55°C to 105°C which covers a wide range of industrial, manufacturing, and commercial applications. It is ideal for use in electronic component manufacturing, power connection systems, communications equipment, and other precision engineering environments.
This D-Sub Connector is built to meet modern connector standards but does not carry specific approvals or certifications. Its solder termination type simplifies installation and repair operations, enhancing production efficiency.
Contains 25 male contacts with gold-plated phosphor bronze material for reliable conductivity. Operating temperature range from -55°C to 105°C ensures durability under extreme conditions. Features a straight orientation with a 2.76 mm pitch for standard PCB mounting.
Mounts through hole with 4 to 40 UNC threaded insert hardware for secure installation. Compatible with the AMPLIMITE HDP-20 series connectors ensuring industry-standard performance. Explore EnvMart categories to find additional connectors and compatible electronic components from TE Connectivity and other industry-leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector has a current rating of 6A.
The pitch size of this connector is 2.76 mm.
It operates within a temperature range of -55°C to 105°C.
This connector contains 25 male contacts.
The contacts are made of gold-plated phosphor bronze for reliable conductivity.
It uses a solder termination type, simplifying installation and repair.
This model is designed for through hole mounting with 4 to 40 UNC threaded inserts.
The housing is made of polyethylene terephthalate.
Yes, it is compatible with the AMPLIMITE HDP-20 series connectors.
The connector features male contacts.
It is suitable for electronic component manufacturing, power connection systems, and communications equipment.
The country of origin for this connector is India.
