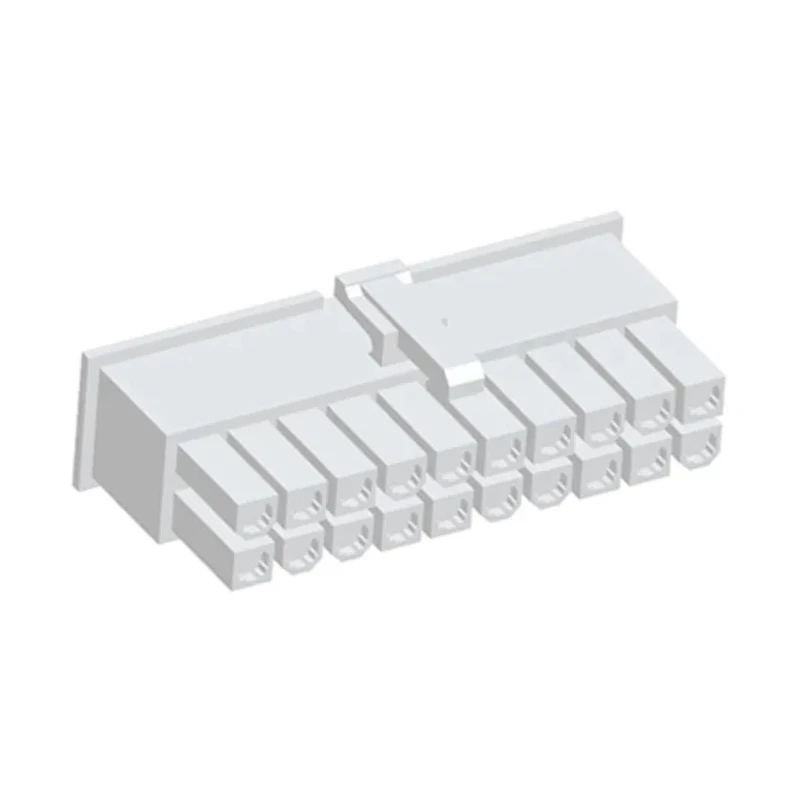

TE Connectivity VAL-U-LOK Female Connector Housing 4.2 mm Pitch 20 Way 2 Row Straight 2-2296205-0

TE Connectivity 2-2296205-0 VAL-U-LOK female connector housing is engineered for industrial, electronics, and commercial applications requiring durable and reliable wire-to-wire or wire-to-panel connections. This 20-way, 2-row housing features a precise 4.2 mm pitch for efficient contact spacing, accommodating electronic components with accuracy.

The housing is constructed from polyamide material, rated for glow wire compliance and UL 94V-0 standards, offering flame retardancy ideal for safety in indoor and outdoor environments. Its design includes keying to ensure proper alignment and an integral housing locking latch providing secure mating to prevent accidental disconnections, especially under vibration or shock conditions.

The connector supports Terminal Position Assurance (TPA) devices, which help keep terminals fully seated and prevent back-out caused by mechanical stresses. These TPAs and crimp receptacle contacts are sold separately, allowing customizable assembly based on application needs.

This VAL-U-LOK series housing is compatible with a wide range of use cases such as household appliances, desktop and server computers, industrial controls, indoor/outdoor lighting systems, HVAC control systems, security systems, and storage/networking devices.

With dimensions including a length of 43.2 mm and width of 19.8 mm, and a two-row 20-contact female panel mount configuration, this connector housing delivers ease of installation and robust connectivity.

Constructed of polyamide housing material ensuring durability. Integral housing locking latch prevents unmating during vibration or use. Suitable for wire-to-wire and wire-to-panel connector applications. Features keying for accurate mating alignment and secure connection.

Compatible with Terminal Position Assurance (TPA) devices to prevent terminal back-out. Ideal for household appliances, desktop computers, industrial controls, and HVAC systems. Part of the VAL-U-LOK series with glow wire compliant and UL 94V-0 rated material.

Two rows of female contacts supporting 20-way connection at a 43.2 mm length and 19.8 mm width. Provides reliable intermateability with existing VAL-U-LOK connectors and headers. Mount type: panel mount with straight orientation for easy integration.

Choose TE Connectivity VAL-U-LOK female connector housing for dependable connector system solutions. Browse the Electronics Components Connector Housing category on EnvMart for similar products.
