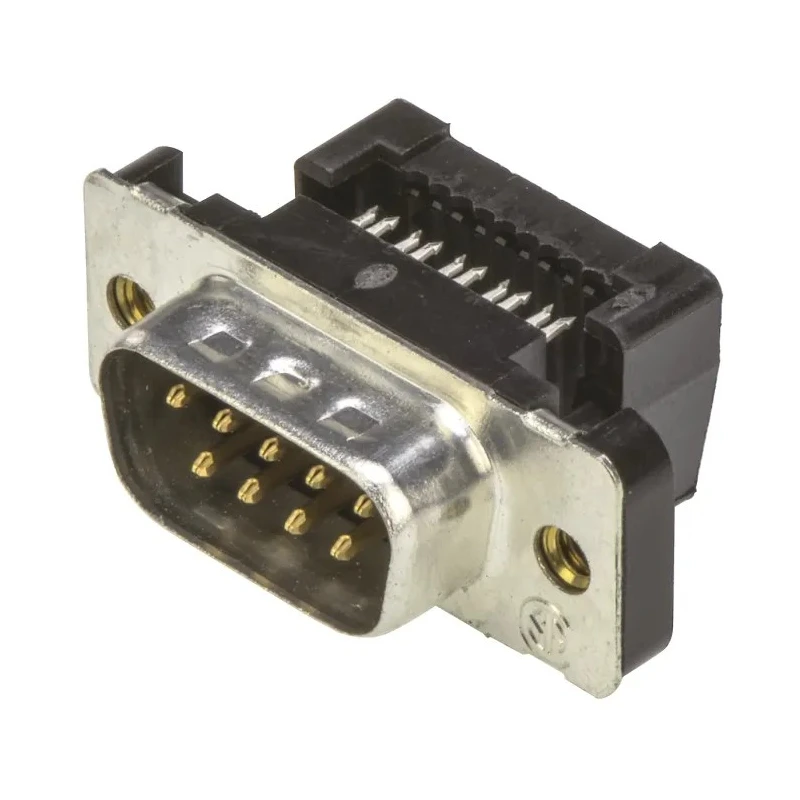

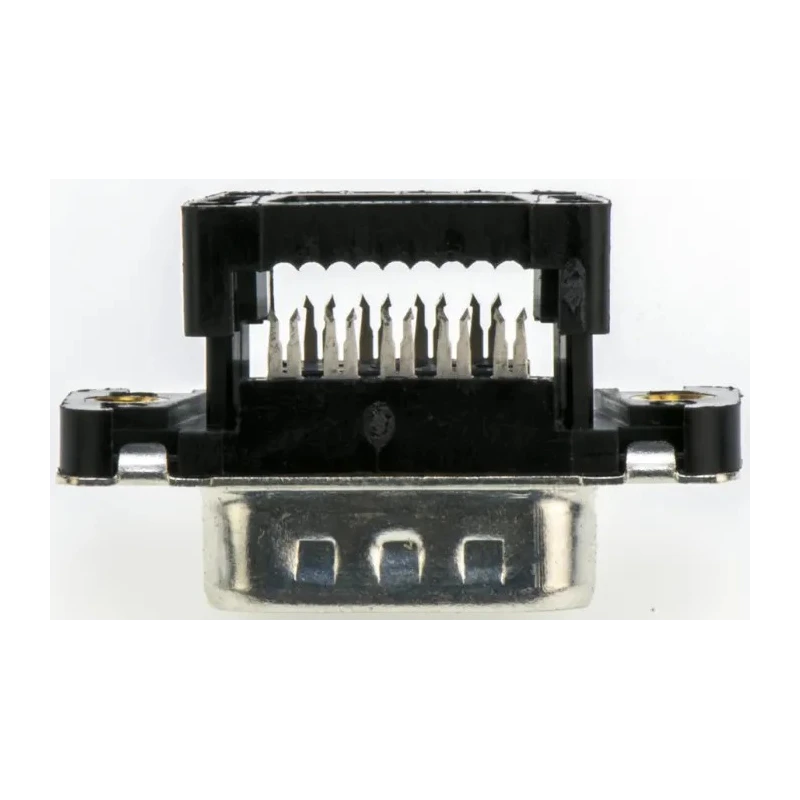

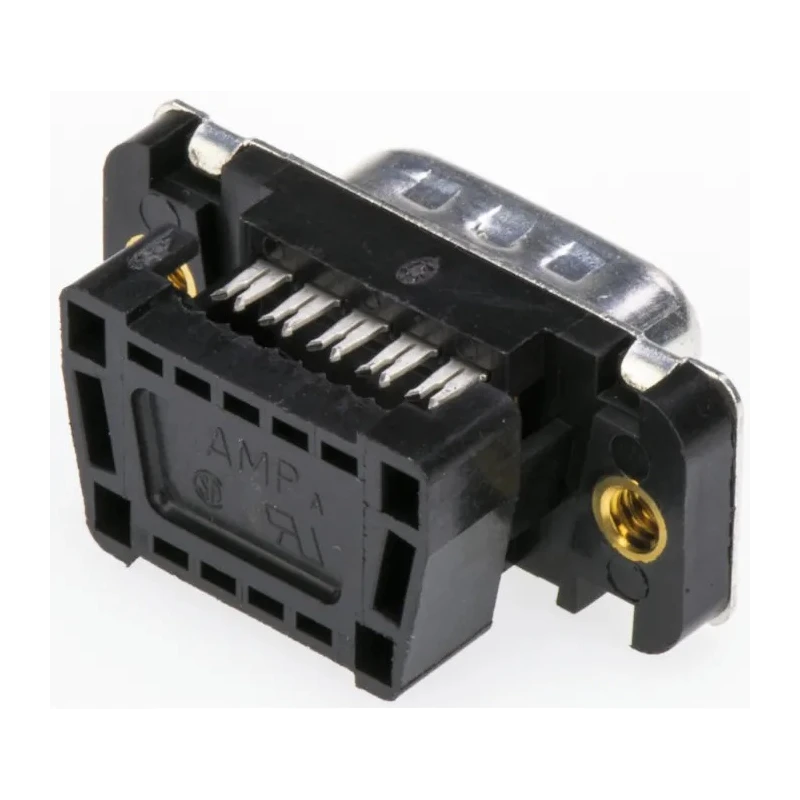

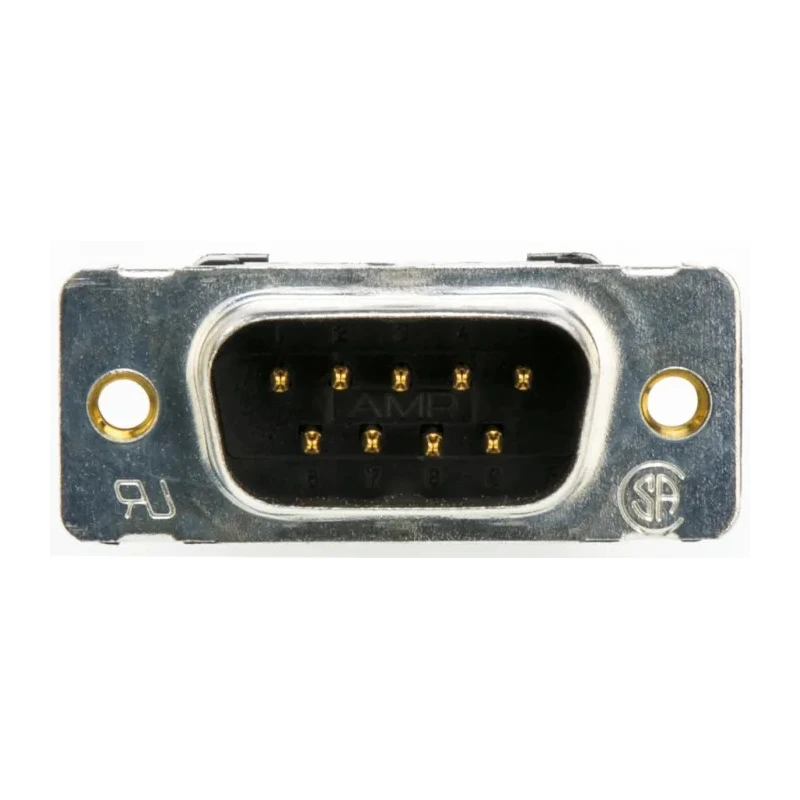

TE Connectivity Amplimite HDF-20 9 Way Straight 2.76 mm Pitch Cable D-Sub Connector Male 1658608-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1.25A |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Phosphor Bronze |
| Series | Amplimite HDF-20 |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.76mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Connector Gender | Male |
| Contact Size | 20 mm |
| Connector Type D | D-Sub |
| D-Sub Shell Size | DS-1 |
Key Features
- Compatible with flat ribbon cable on 1.27 mm centres for versatile use.
- Features a durable steel housing with gold over nickel plated phosphor bronze contacts.
- Designed for operating temperatures from -55°C to 105°C for wide ambient conditions.
- Supports a current rating of 1.25 A at a voltage of 30 V.
- Termination is IDC type, ensuring quick and reliable connections.
- Includes brass 4-40 threaded inserts for secure mounting.
- Suitable for industrial and electronic applications requiring D-Sub connectors.
- Pre-assembled with black 94V-0 rated thermoplastic housings and covers.
Product Description
TE Connectivity 1658608-4 Amplimite HDF-20 series 9 Way Straight Cable D-Sub Connector Male features a 2.76 mm pitch designed for reliable IDC termination onto flat ribbon cables. The connector has a steel housing and high-quality gold over nickel plating on phosphor bronze contacts offering durability and excellent electrical performance. Operating temperature ranges from -55°C up to 105°C allow usage in demanding industrial environments.
This connector supports a current of 1.25 A and voltage rating of 30 V, catering well to low-power electronic assemblies. It includes brass 4-40 threaded inserts providing firm mechanical mounting hardware compatibility. The black 94V-0 thermoplastic housings and covers are flame retardant, ensuring safety compliance.
The AMPLIMITE HDF-20 series connectors mate with HD-20 Board Mount, HDP, and HDE D-Sub Connectors (sizes 1-4 only). Optional accessories such as strain reliefs and screw locks are available to enhance cable management and reliability in industrial, laboratory, commercial electronics, and telecommunications applications.
High-quality low profile IDC metal shell connector for flat ribbon cable. Durable phosphor bronze contacts with gold over nickel plating for corrosion resistance. Steel housing provides mechanical ruggedness in harsh environments.
Wide operating temperature range from -55°C to 105°C for versatile use. Supports 1.25 A current and 30 V voltage rating for industrial signal applications. Pre-assembled with 94V-0 rated black thermoplastic housings and covers.
Compatible with optional strain relief and screw lock accessories for secure assembly. Perfect for industrial, manufacturing, electronics, and telecommunications use cases. This product is new and made in India. Explore more TE Connectivity connectors and Amplimite series products in the EnvMart catalog for electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector supports a current rating of 1.25 A.
The voltage rating for this connector is 30 V.
It operates within a temperature range of -55°C to 105°C.
This model features IDC (Insulation Displacement Connector) termination for quick and reliable connections.
The housing is made of steel, and the contacts are phosphor bronze with gold over nickel plating.
This connector has 9 contacts.
The pitch size of this connector is 2.76 mm.
It is suitable for industrial, laboratory, commercial electronics, and telecommunications applications.
Yes, it includes brass 4-40 threaded inserts for secure mounting.
The connector has a straight orientation.
This product is manufactured in India.
Yes, optional accessories such as strain reliefs and screw locks are available to enhance cable management.
