TE Connectivity AMPLIMITE .050 III 68 Way Right Angle 2.54 mm Pitch Through Hole D-Sub Connector with Board Lock 5787170-7

Free Delivery in India | Lowest Global Shipping Charges

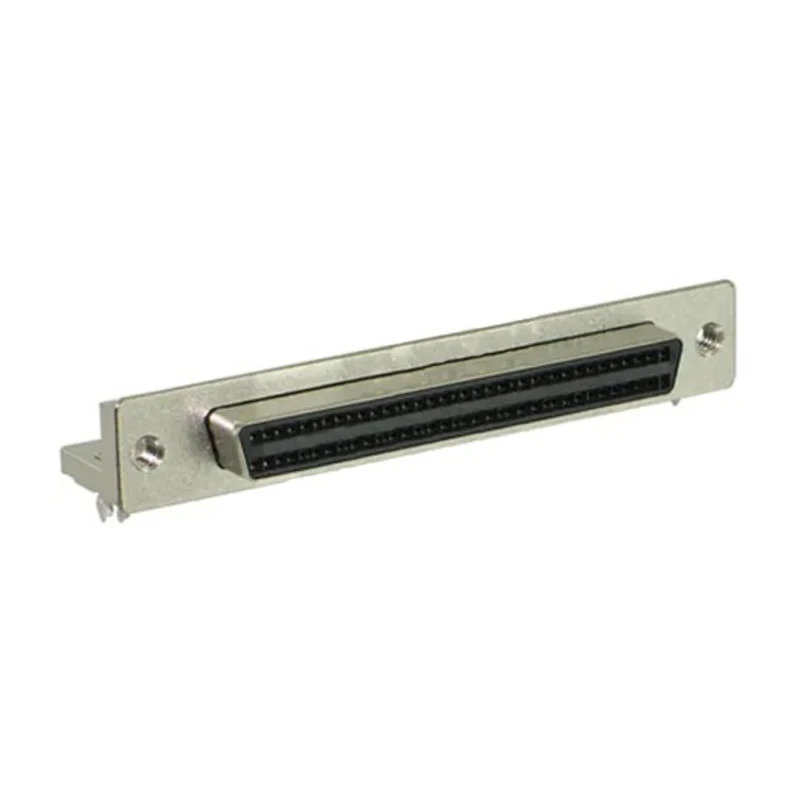

TE Connectivity AMPLIMITE .050 III 68 Way Right Angle 2.54 mm Pitch Through Hole D-Sub Connector with Board Lock 5787170-7

Name: TE Connectivity AMPLIMITE .050 III 68 Way Right Angle 2.54 mm Pitch Through Hole D-Sub Connector with Board Lock 5787170-7
Brand: TE Connectivity
SKU: 210214
Price: 12.45 USD
Availability: InStock



Category D-Sub Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Orientation	Right Angle
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Phosphor Bronze
Series	AMPLIMITE .050 III
Mounting Hardware	Board Lock
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	2.54mm
Standards/Approvals	RoHS
Contact Plating	Gold over Nickel
Number of Contacts	68
Contact Gender	Female
Connector Gender	Female
Contact Size	22
Connector Type D	D-Sub

Key Features

Features a compact, space-saving design with full shielding for superior EMI/RFI protection.
Manufactured with high-temperature thermoplastic housing compatible with reflow solder processes.
Right angle orientation with integral board locks ensures stable PCB connection and grounding.
Contact material is phosphor bronze with gold over nickel plating for reliable conductivity and corrosion resistance.
Suitable for applications in consumer electronics, telecommunications, industrial, military, medical, and LAN equipment.
Meets stringent RoHS compliance standards ensuring environmental safety.
Operates in temperature ranges from -55°C to 105°C for durability under varying conditions.
High contact density with 68 contacts spaced at 2.54 mm pitch improves connectivity in limited space.

Product Description

TE Connectivity 5787170-7 AMPLIMITE .050 III 68 Way Right Angle 2.54 mm Pitch Through Hole D-Sub Connector with Board Lock Female is designed for high-density electronic interface applications requiring robust mechanical and electrical performance.

This D-subminiature connector from the AMPLIMITE .050 Series III family features a compact, space-saving right angle through hole mounting with full shielding to protect against EMI and RFI interference, critical in sensitive electronic environments.

The housing is constructed from high temperature thermoplastic materials compatible with surface mount reflow soldering processes enhancing reliability during PCB assembly. The connector includes integral board locks to secure the connector firmly to the printed circuit board while providing grounding continuity.

Contacts are crafted from phosphor bronze and plated with gold over nickel, ensuring excellent electrical conductivity and resistance to corrosion and wear. Operating temperature range is from -55°C to 105°C making it suitable for diverse industrial environments.

This model offers 68 female contacts arranged with a 2.54 mm pitch spacing, allowing for high contact density in minimal PCB area, ideal for telecommunications, LAN, consumer electronics, military, industrial automation, and medical device applications.

Compact, space-saving design. Full shielding provides EMI/RFI protection. High temperature thermoplastic housing. Integral board locks for secure and grounded PCB attachment. Phosphor bronze contacts plated with gold over nickel.

Operational temperature range from -55°C to 105°C. RoHS compliant manufacturing. 68 contacts with 2.54 mm pitch spacing.

This product is an essential component for engineers and technicians requiring reliable, compact D-Sub Connectors for critical electronic equipment across a wide range of industrial and commercial applications. Browse our extensive range of TE Connectivity connectors and related products for your next project at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features 68 female contacts arranged with a 2.54 mm pitch spacing, allowing for high contact density in a compact area.

It operates within a temperature range of -55°C to 105°C, making it suitable for various industrial environments.

The housing is made from high-temperature thermoplastic, while the contacts are crafted from phosphor bronze and plated with gold over nickel for conductivity and corrosion resistance.

It features a right angle orientation with through hole mounting and includes integral board locks to secure it firmly to the printed circuit board.

Yes, it meets RoHS compliance standards, ensuring it adheres to environmental safety regulations.

This unit is suitable for applications in telecommunications, consumer electronics, industrial automation, military, medical devices, and LAN equipment.

It uses solder termination, which is compatible with standard PCB assembly processes.

The connector has a right angle orientation, which helps in space-saving designs on PCBs.

The integral board locks ensure a stable connection to the PCB and provide grounding continuity, enhancing the reliability of the connection.

The contact size is 22, which is standard for this type of D-Sub connector.

This model is classified as a D-Sub connector, specifically from the AMPLIMITE .050 III series.

The country of origin for this connector is India.
