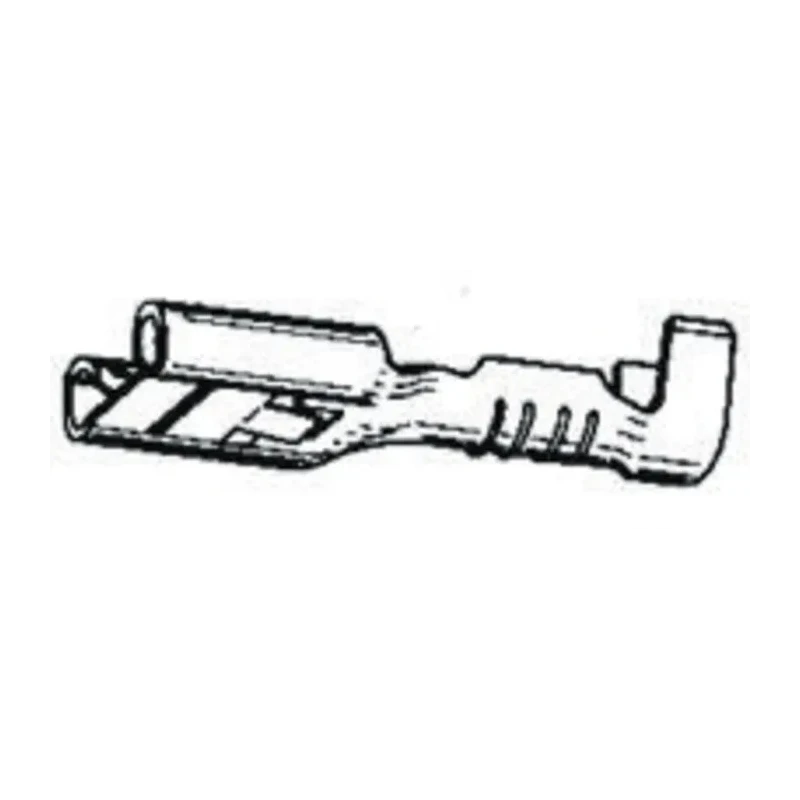

TE Connectivity FASTIN-FASTON .250 Black Uninsulated Female Spade Connector Crimp 6.35 x 0.81 mm Tab Size 17 AWG 6-160449-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Orientation | Straight |
| Gender | Female |
| Insulation | Uninsulated |
| Overall Length | 19.2mm |
| Contact Material | Phosphor Bronze |
| Series | FASTIN-FASTON .250 |
| Termination Type | Crimp |
| Interfaces | lances for secure retention in housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 17AWG |
| Maximum Wire Size AWG | 13AWG |
| Tab Width | 6.35mm |
| Tab Thickness | 0.81mm |
| Tab Size | 6.35 x 0.81 mm |
Key Features
- Features a 6.35 mm wide and 0.81 mm thick tab size suitable for 17 AWG to 13 AWG wires.
- Uninsulated construction with phosphor bronze contact material plated in tin for durability.
- Quick crimp termination ensures strong tensile strength and excellent conductivity.
- Includes locking lances that provide secure retention in housing to prevent disconnection.
- Designed for stable electrical and mechanical performance in demanding environments.
- Commonly used in appliance and automotive wiring harness applications.
- Overall length measures 19.2 mm to fit standard FASTIN-FASTON .250 series connectors.
- Resistant to vibration and corrosion for long-lasting circuit reliability.
Product Description
TE Connectivity 6-160449-2 is a FASTIN-FASTON .250 black uninsulated female spade connector offering precise crimp termination for high performance electrical connections. Rated for 17 AWG to 13 AWG wire sizes, this crimp receptacle features a tab width of 6.35 mm and a tab thickness of 0.81 mm with an overall length of 19.2 mm, suitable for standard .250 FASTIN-FASTON interfaces.
The connector utilizes phosphor bronze contacts with tin plating to provide excellent conductivity and corrosion resistance. The uninsulated termination style facilitates reliable mechanical and electrical contact, while locking lances ensure secure retention in mating connectors, preventing accidental disconnection.
These spade connectors are widely used in industrial, automotive, and household appliance applications such as electric ranges, washers, dryers, and automotive harness wiring where vibration resistance and long-lasting durability are required.
The engineered step down insulation support barrel compensates for insulation thickness and aligns conductor strands axially, maintaining connection integrity. Tapered walls prevent over insertion of shoulderless tabs, enhancing connection stability.
TE Connectivity's FASTIN-FASTON 250 series terminals are manufactured to strict crimping specifications to guarantee uniform reliability, while the "F" style crimp termination ensures maximum tensile strength and conductivity throughout the product lifecycle.
6.35 mm wide and 0.81 mm thick tab size for 17 AWG to 13 AWG wires. Phosphor bronze contact with tin plating for durability and conductivity. Uninsulated female spade terminal with crimp termination. Locking lances provide secure retention in connector housing.
Designed for resistance against vibration and corrosion. Commonly used in appliance and automotive harness wiring. Overall length: 19.2 mm.
This Spade Connector is part of the wide selection of power connectors available for electronic components and wire termination tasks. It is ideal for industrial, automotive, laboratory, and manufacturing environments requiring reliable and fast connect-disconnect terminal solutions.
