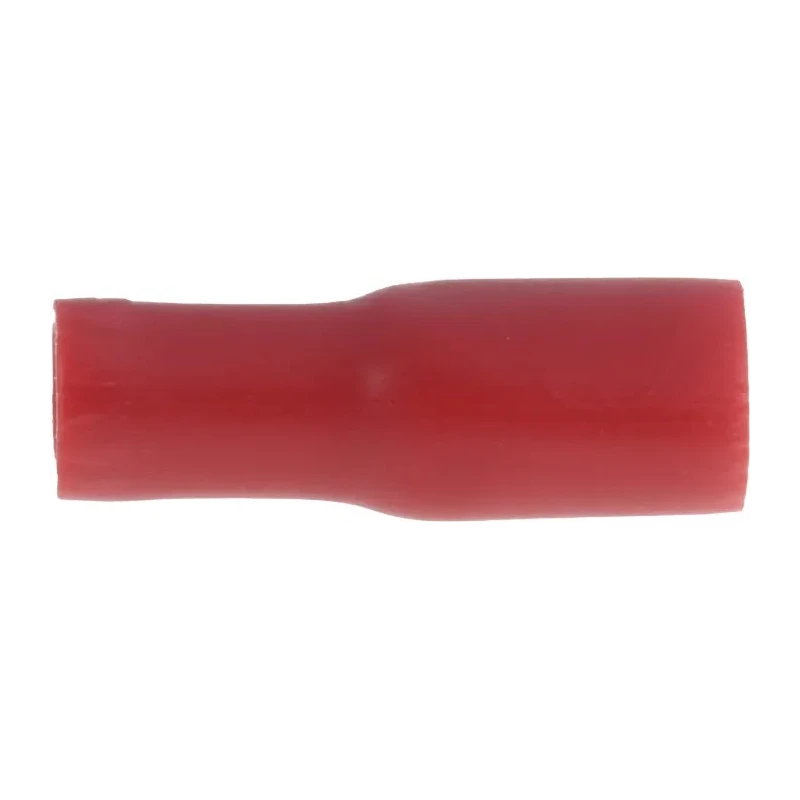

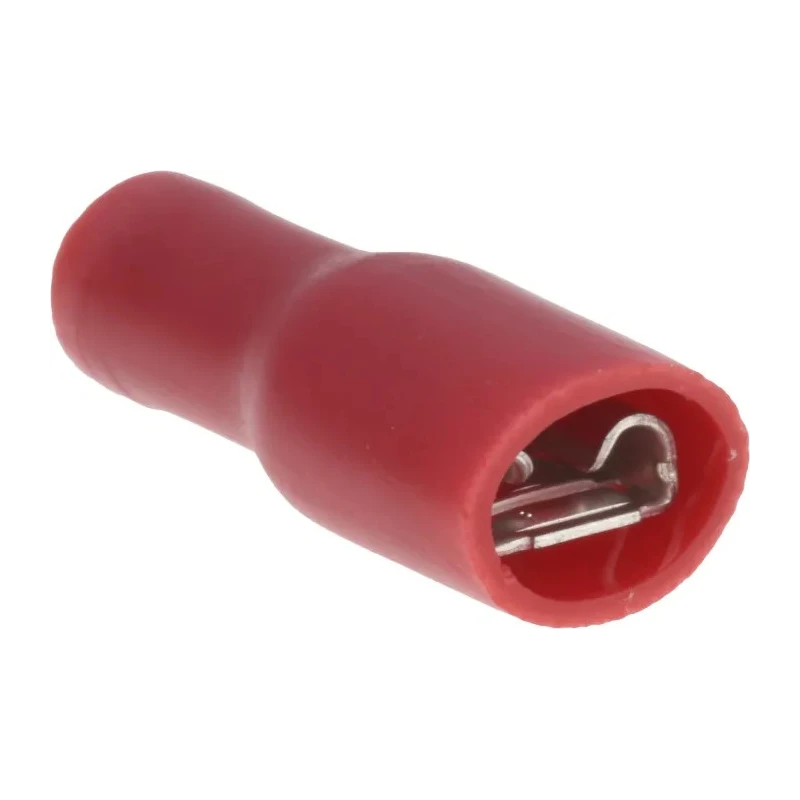

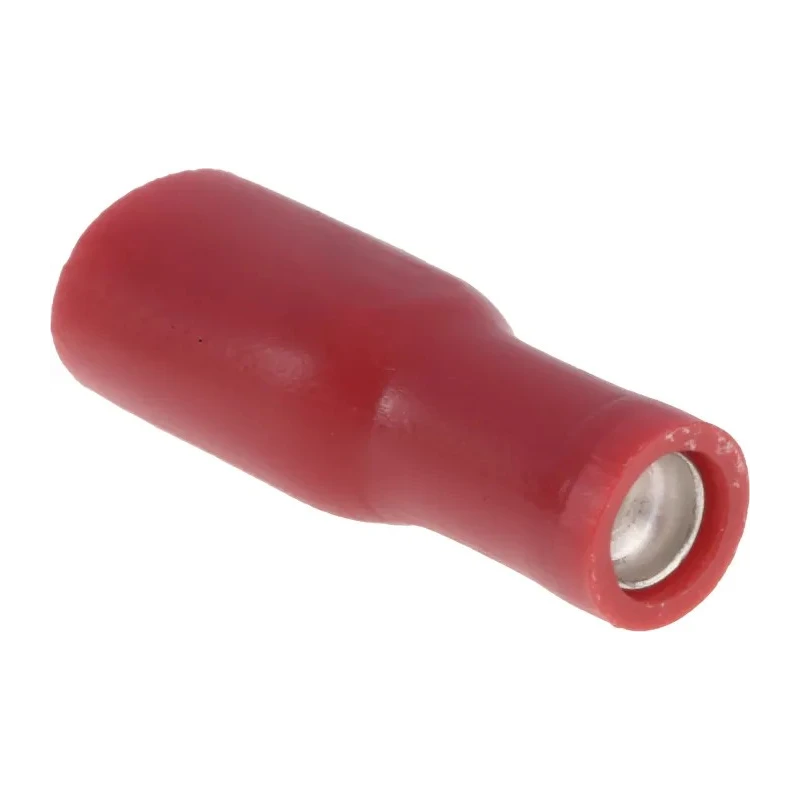

RS PRO Red Insulated Female Spade Connector Crimp 4.8 x 0.5 mm Tab Size 22 AWG to 16 AWG 534-418
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Red |
| Orientation | Straight |
| Model | 534-418 |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 19mm |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Crimp |
| Insulation Material | Vinyl |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Tab Width | 4.8mm |
| Tab Thickness | 0.5mm |
| Tab Size | 4.8 x 0.5 mm |
| CRIMP CONN SH RECPT 0.187Brand | NEUTRAL |
| RS PRO Push Wire Terminal, 0.5 → 1.5 mm², RedBrand | RS PRO |
Key Features
- Provides quick and reliable electrical connection and disconnection.
- Fully insulated with vinyl material for electric shock protection.
- Double crimp design with internal copper sleeve ensures robust and secure crimps.
- Red colour coded insulation for easy identification of terminal size.
- Tin plated brass contact materials for corrosion resistance and excellent conductivity.
- Suitable for industrial control systems and automotive applications.
- Designed for use with crimp tooling, no soldering required.
- Compact 19 mm overall length supports tight space installations.
Product Description
RS PRO 534-418 Red Insulated Female Spade Connector is a high-quality crimp electrical connector designed for reliable wiring connections between 22 AWG to 16 AWG wires. This crimp type female spade terminal features a 4.8 x 0.5 mm tab size, ensuring compatibility with matching male tab connectors.
The connector's body is constructed from tin-plated brass with an internal copper sleeve which strengthens the crimp barrel while protecting the wire against stress and vibration. The full-length vinyl insulation safely protects against electric shock and short circuits, providing a durable enclosure against contaminants such as dirt, grease, and liquids.
Utilizing a double crimp construction, this terminal ensures robust mechanical and electrical connection suitable for demanding environments. The red colour code on the insulated sleeve provides quick identification for 22 AWG to 16 AWG wire sizes, simplifying installation and maintenance.
This female spade connector is ideal for a wide range of industrial applications including industrial control systems, automotive wiring, communication equipment, HVAC systems, and domestic appliances like dishwashers and dryers.
Installation requires suitable crimp tooling (e.g., RS PRO stock numbers 125-1964 or 534-812), eliminating the need for soldering, which speeds up assembly and enhances connection reliability. The connector's 19 mm length is well suited for compact wiring assemblies.
Quick and easy electrical connection and disconnection. Fully insulated vinyl sleeve provides electric shock protection. Robust double crimp with copper sleeve for reliable termination. Tinned brass contacts resist corrosion and ensure conductivity.
Red colour coding matches wire gauge size from 22 AWG to 16 AWG. Compatible with crimp tooling for solderless connection. Suitable for industrial control, automotive, HVAC, and domestic appliance wiring. Compact 19 mm length fits tight wiring spaces.
This RS PRO female Spade Connector from a trusted series enhances electrical wiring reliability and safety in critical industrial and commercial applications. Explore the RS PRO range for dependable connectors and crimp tools on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with wire sizes ranging from 22 AWG to 16 AWG, with a minimum wire size of 0.5 mm² and a maximum of 1.5 mm².
The tab size of this female spade connector is 4.8 x 0.5 mm, which ensures compatibility with matching male tab connectors.
The connector features a body made of tin-plated brass for the contacts and an internal copper sleeve, with a vinyl insulation material for electric shock protection.
The overall length of this model is 19 mm, making it suitable for compact wiring assemblies.
This connector utilizes a crimp termination type, which allows for quick and reliable connections without the need for soldering.
Yes, it is suitable for automotive wiring as well as industrial control systems, communication equipment, HVAC systems, and domestic appliances.
The insulation type is fully insulated with vinyl material, providing protection against electric shock and short circuits.
The double crimp design, combined with the internal copper sleeve, ensures a robust and secure mechanical and electrical connection, suitable for demanding environments.
The insulation is red, which is color-coded for easy identification of the terminal size, specifically for 22 AWG to 16 AWG wire sizes.
Installation requires suitable crimp tooling, such as RS PRO stock numbers 125-1964 or 534-812, to ensure proper crimping without soldering.
This connector is manufactured in Taiwan, ensuring compliance with quality standards.
The contact material is tin-plated brass, which provides corrosion resistance and excellent conductivity for reliable electrical connections.
