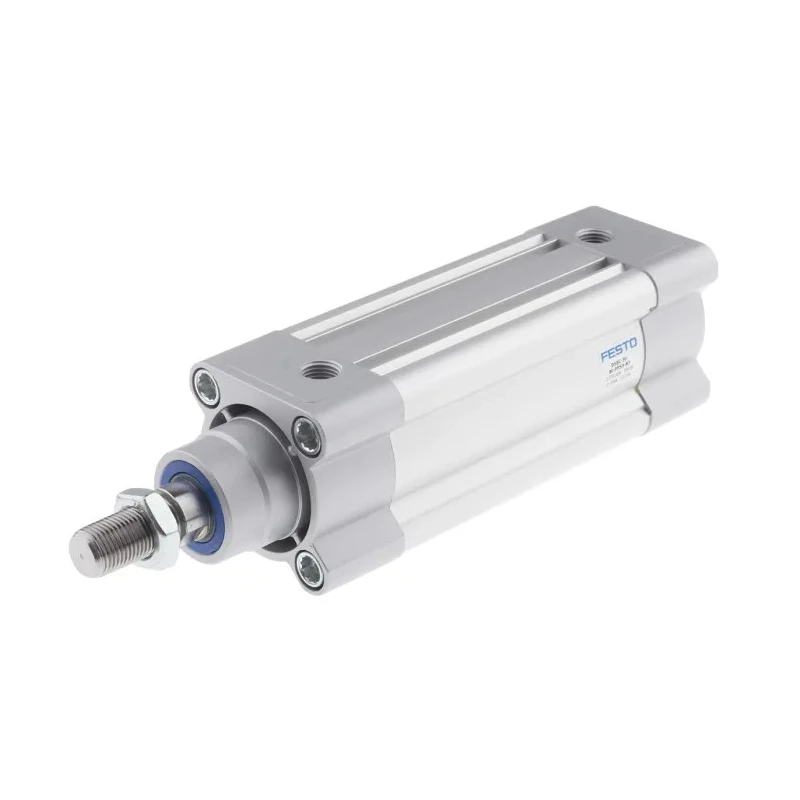

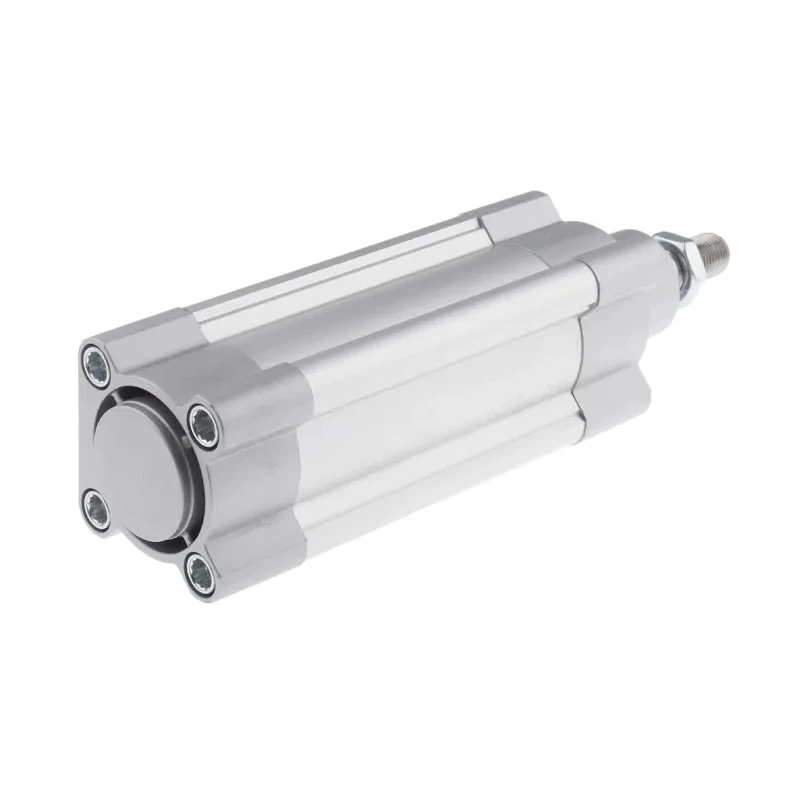

Festo DSBC-50-80-PPSA-N3 Pneumatic Piston Rod Cylinder, 50mm Bore, 80mm Stroke, Double Acting, Aluminium Body

The Festo DSBC-50-80-PPSA-N3 Pneumatic Piston Rod Cylinder is engineered for industrial pneumatic actuation where reliability, adaptability, and operational efficiency are required. It features a 50mm bore and an 80mm stroke, providing consistent linear motion suitable for a wide range of machinery and automation systems.

This model employs a double acting mechanism, meaning pneumatic force is applied to both sides of the piston to drive both extension and retraction. This ensures accurate and repeatable positioning, making it ideal for applications requiring precise motion control. The actuator inherits Festo's robust DSBC Series design, with an aluminium cylinder body and a high-alloy steel piston rod, leading to excellent wear resistance and extended service life even under high duty cycles.

The pneumatic cylinder incorporates advanced PPS (self-adjusting air cushioning) technology. This feature automates the cushioning adjustment, so the cylinder gently decelerates at each end of stroke regardless of load variations, minimizing mechanical shock. The result is reduced noise and vibration, along with faster installation and commissioning as there is no need to fine-tune the end positions manually.

Conforming to ISO 15552 standards, the DSBC-50-80-PPSA-N3 offers broad interchangeability, ensuring easy integration or replacement within standardized equipment platforms. Its through-hole mounting allows for flexible installation orientations, and compatibility with a range of mounting accessories further widens its industrial deployment scenarios.

This cylinder supports a maximum operating pressure of 12 bar, with a recommended temperature range of -20°C to 80°C. Standard magnetic piston rods enable the use of external proximity sensors (slot-mount), providing non-contact position feedback for automation and safety interlocks. The 64mm height and width ensure it fits into most typical industrial actuator mounts.

Typical applications include use in industrial automation systems, packaging and manufacturing lines, material handling, and machinery requiring precise pneumatic movement. The DSBC Series' modular approach and extensive bore and stroke combinations suit OEMs and plant engineers seeking scalable actuator solutions.
