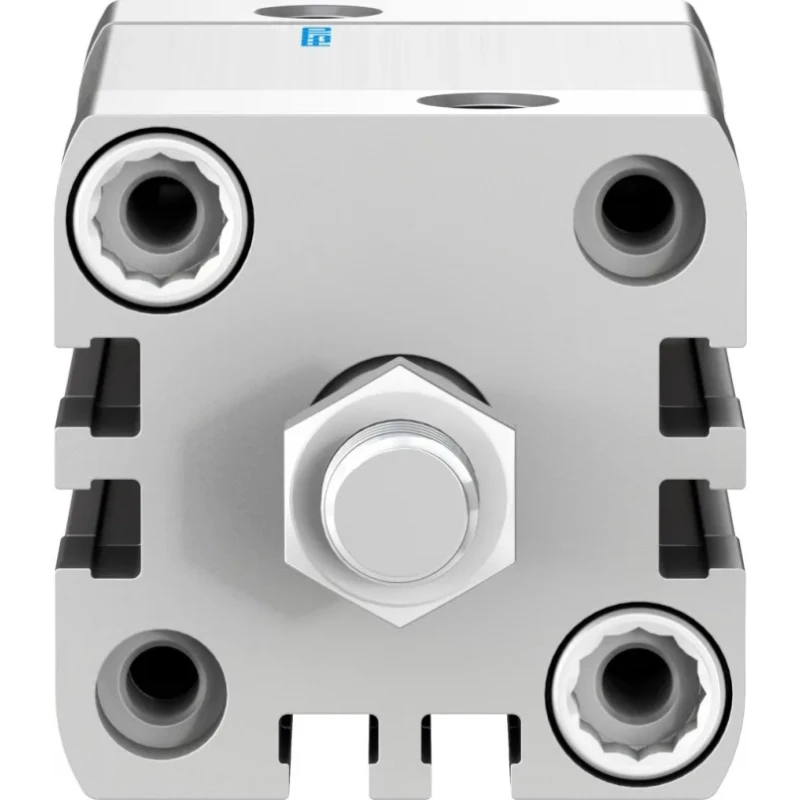

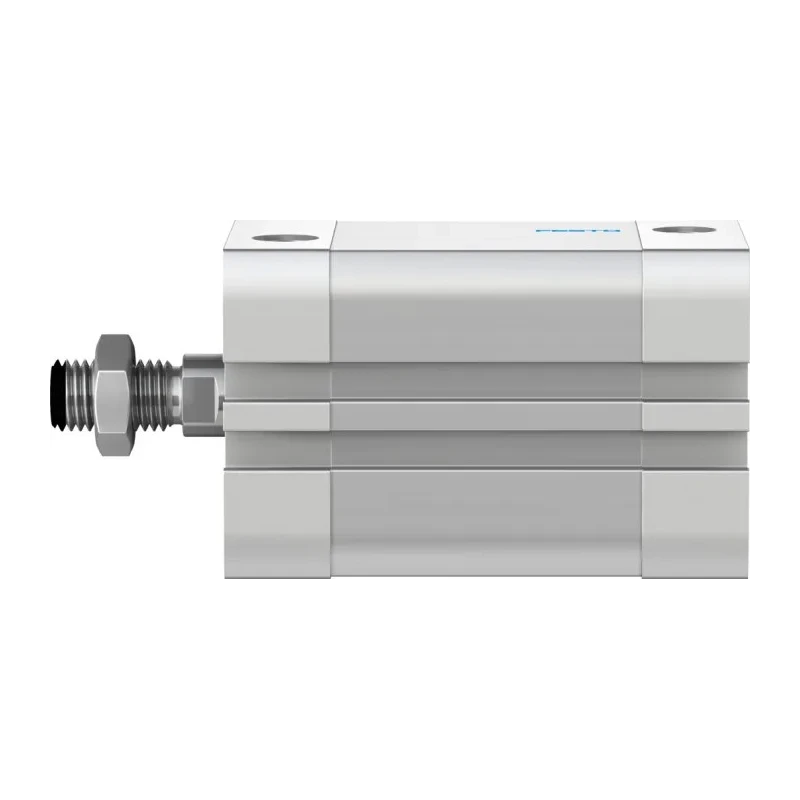

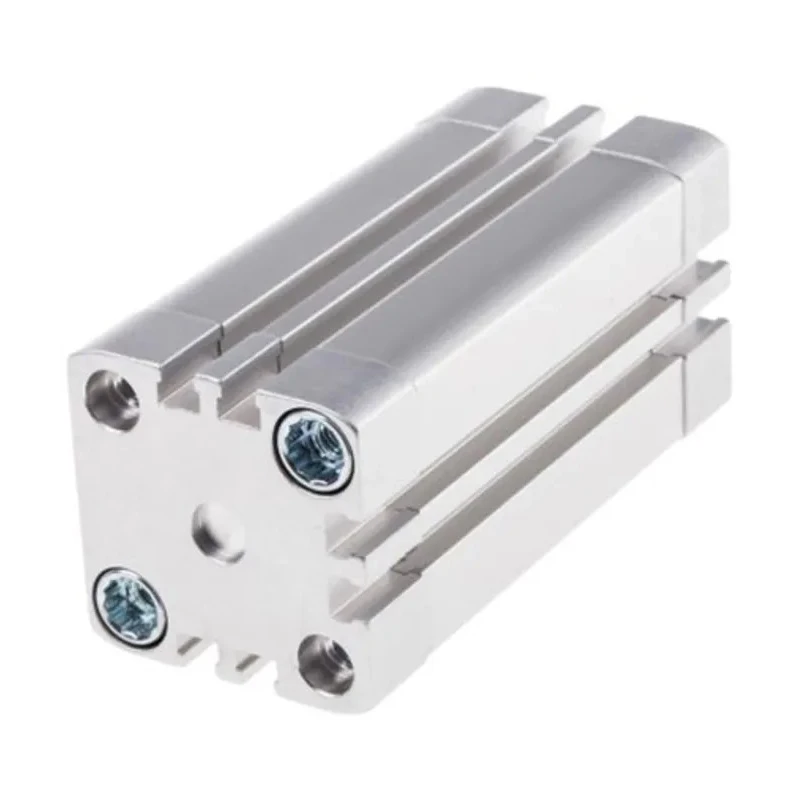

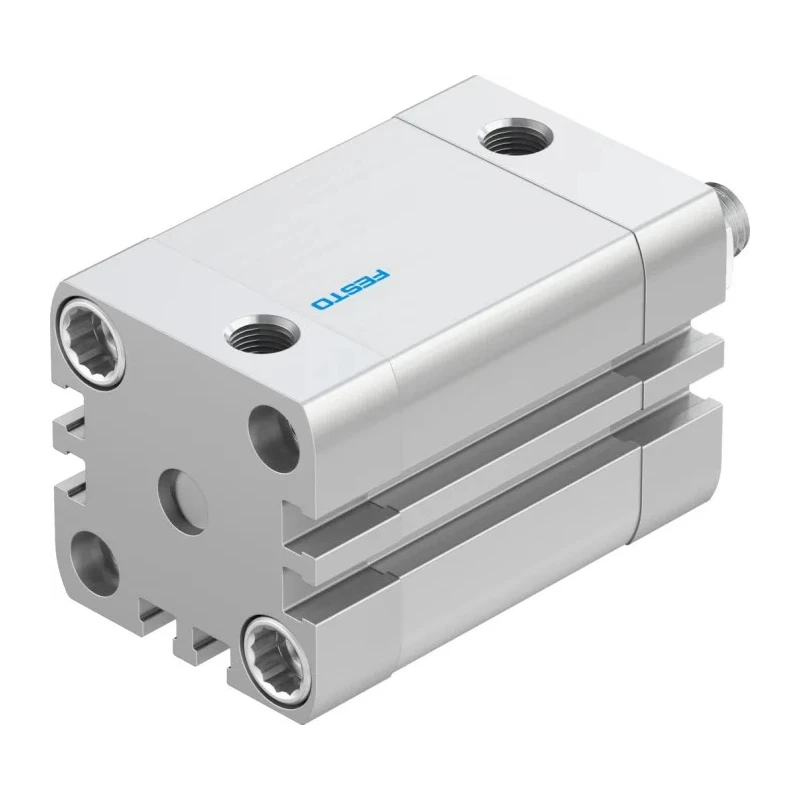

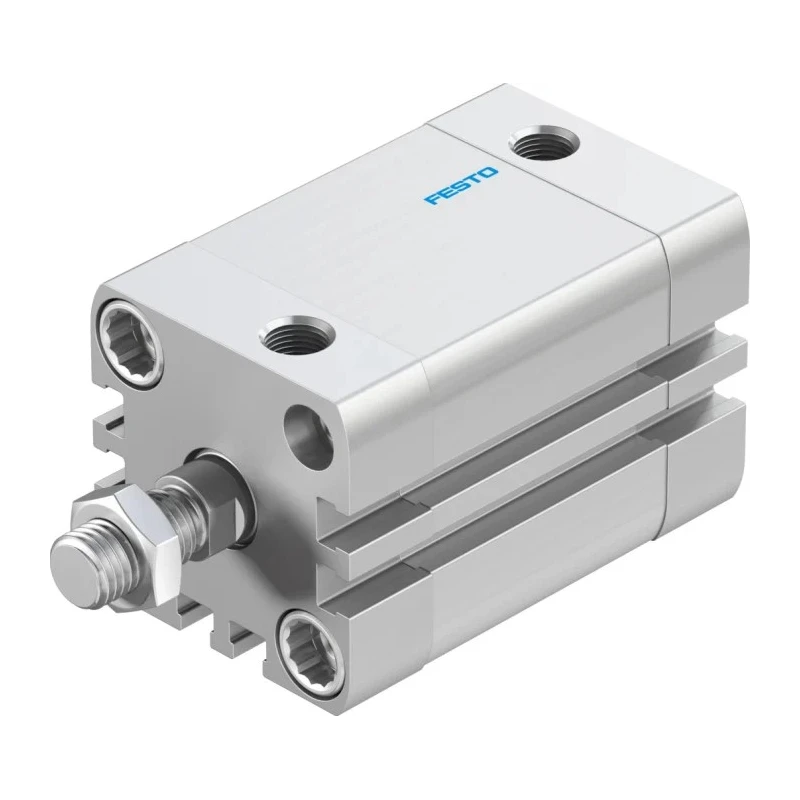

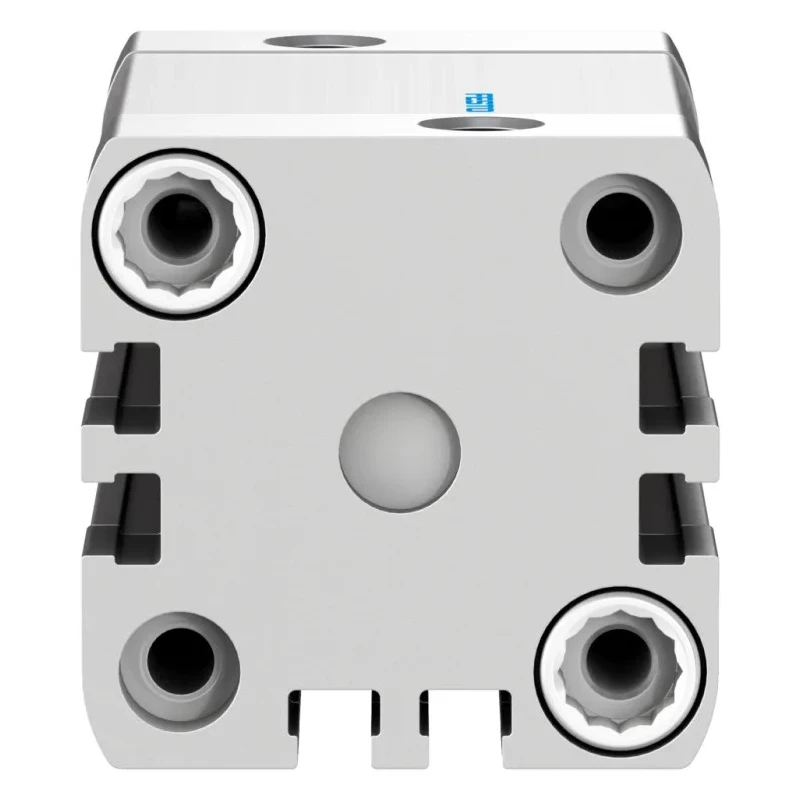

Festo Pneumatic Cylinder 32mm Bore, 30mm Stroke, Double Acting, Aluminium Body, ADN Series ADN-32-30-A-P-A

The Festo ADN-32-30-A-P-A Pneumatic Cylinder brings precision and reliability to industrial automation systems requiring controlled linear motion. As part of Festo's ADN series, this double-acting pneumatic actuator incorporates a 32mm bore and a stroke length of 30mm, making it especially effective for applications where space is limited but high cycle rates and repeatable accuracy are critical.

With its durable aluminium body, this cylinder combines lightweight handling with mechanical strength, allowing for straightforward installation and long service life. The cylinder supports a maximum operating pressure of 10 bar and is suitable for ambient temperatures ranging from -20°C up to 80°C. This wide temperature range ensures dependable performance even in dynamic environments found on production lines.

Designed with a through hole mounting interface and a G 1/8 pneumatic connection, the unit facilitates simple integration into pre-existing pneumatic systems. Its double-acting configuration allows precise control for both extension and retraction movements. Meanwhile, elastic air cushioning and built-in cushioning rings reduce vibration and mechanical stress during the cylinder's operations, preserving machinery longevity and minimizing wear.

The ADN-32-30-A-P-A features a male-threaded single piston rod, promoting secure mechanical connections to system elements such as grippers or tooling assemblies. The clean, compact design is suitable for use in cleanroom environments (meeting ISO 14644-1 Class 6 requirements) and makes this model an excellent fit for automated packaging, assembly, robotic, and material handling equipment.

Additional technical highlights include compliance with ISO 21287 standards, ensuring compatibility with a global range of industrial and automation equipment. Its stroke accuracy and high repeatability are ideal for pick-and-place systems, conveyor actuation, and other precision material handling tasks. Maintenance is simplified, with no lubrication required under standard operational conditions, contributing to system uptime and low ongoing costs.

Common applications for this pneumatic cylinder include use in pick-and-place robots, packaging lines, assembly machines, and any setup requiring frequent, precise linear movement. Its robust, compact profile and standardized mounting make it a trusted component in industries such as electronics, automotive, food and beverage, and laboratory automation systems.
