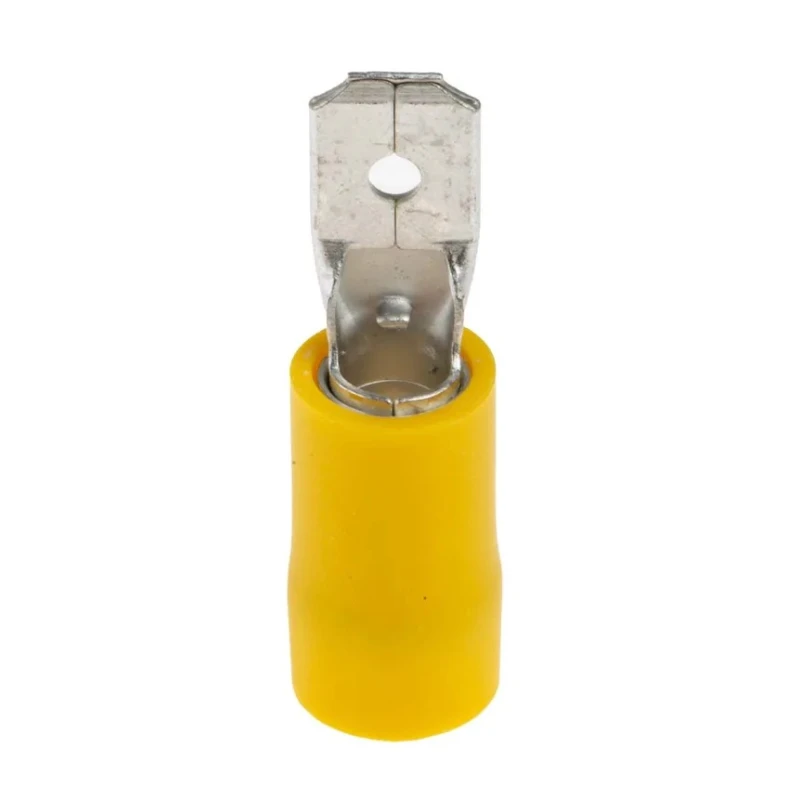

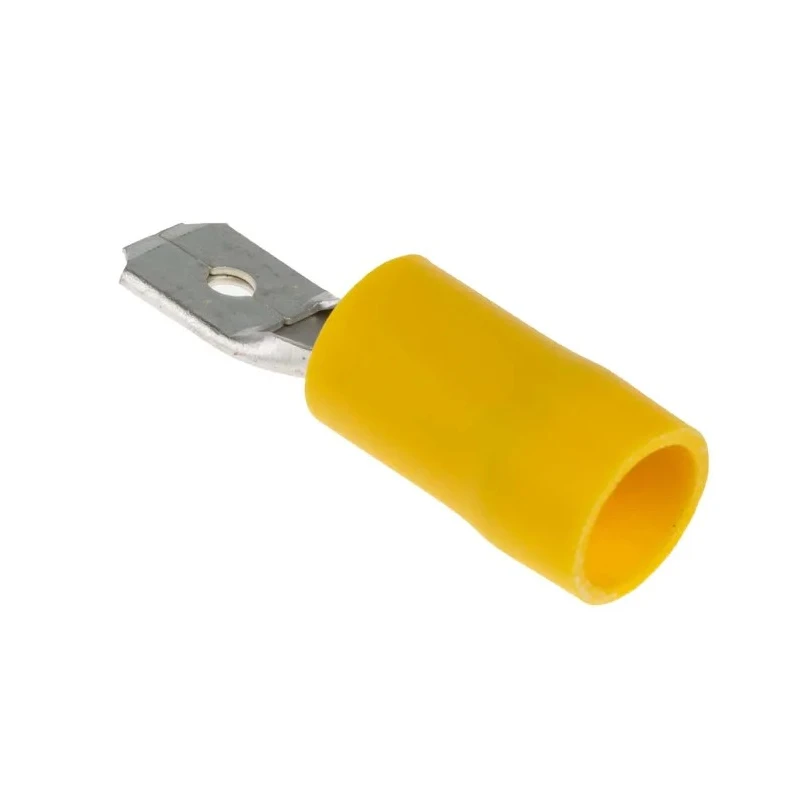

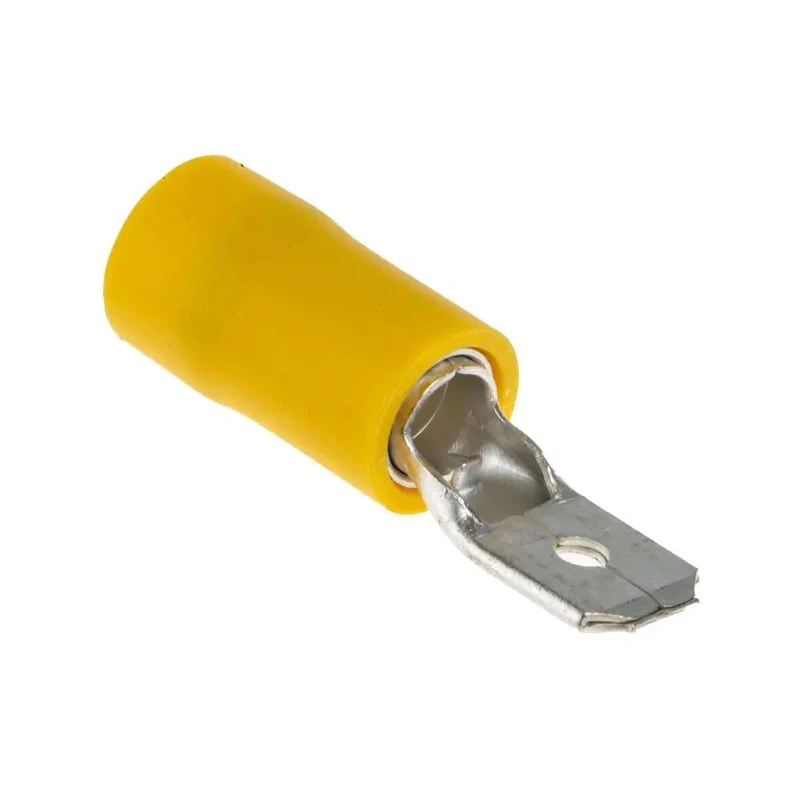

RS PRO Yellow Insulated Male Spade Connector Crimp 6.35 x 0.8 mm Tab Size, 12 AWG to 10 AWG 534-547
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Yellow |
| Orientation | Straight |
| Model | 534-547 |
| Gender | Male |
| Insulation | Insulated |
| Overall Length | 25mm |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Crimp |
| Insulation Material | Vinyl |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.5mm² |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Tab Width | 6.35mm |
| Tab Thickness | 0.8mm |
| Tab Size | 6.35 x 0.8 mm |
| 0.25 BLADE YELLOW INSNBrand | NEUTRAL |
Key Features
- Fully insulated for protection against electrical shock and shorting.
- Double crimp design with internal copper sleeve enhances mechanical strength.
- Vinyl insulation is yellow color-coded for quick wire size identification.
- Constructed from brass with tin plating for reliable conductivity and corrosion resistance.
- Suitable for use in machinery, electrical equipment, home appliances, and automotive applications.
- Straight orientation offers easy installation in tight spaces.
- Overall length is 25mm to fit standard tab sizes.
- Colour coding corresponds to 2.5mm² to 6mm² wire range.
Product Description
RS PRO 534-547 Yellow Insulated Male Spade Connector Crimp offers a durable and reliable solution for crimp-type electrical terminations.
This male spade connector is constructed from brass with a tin plated contact surface to ensure excellent conductivity and corrosion resistance. It comes with a yellow vinyl insulation, which is fully insulated to prevent electrical shocks and short circuits. The insulation also features a funnelled design to allow easy wire insertion and enhanced crimping durability with its double crimp construction combined with an internal copper sleeve for added strength.
The straight orientation of the connector provides convenient handling and mounting in confined spaces. Its compact overall length of 25mm is ideal for standard tab connections, making it an excellent choice for electrical equipment assemblies, home appliances, automotive wiring, and machinery applications.
RS PRO offers a broad range of insulated wire terminals with color-coded insulation to clearly indicate compatible wire sizes. This model supports a minimum wire size of 2.5mm² (12 AWG) and a maximum wire size of 6mm² (10 AWG), with the yellow insulation designed for this wire gauge range.
Fully insulated vinyl material enhances safety when handling electrical assemblies. Double crimp design with copper sleeve increases mechanical reliability of crimp joints. Brass contact with tin plating ensures longevity and conductivity performance.
Designed for use in industrial, electrical, automotive, and home appliance wiring. Yellow color coding identifies wire size range quickly and reduces installation errors. Straight male spade orientation allows for easy plug-in and removal.
Compact 25mm length provides compatibility with most standard electrical tabs.
This RS PRO male spade connector is manufactured in Taiwan, Province Of China, and is supplied new, ideal for electrical engineers, technicians, and hobbyists looking for reliable crimp connectors for circuit wiring applications.
Explore the full line of RS PRO Spade Connectors and related electronic components with EnvMart for all your industrial and commercial connector needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The overall length of this male spade connector is 25mm.
This model supports a minimum wire size of 2.5mm² (12 AWG) and a maximum wire size of 6mm² (10 AWG).
It is constructed from brass with a tin plating for reliable conductivity and corrosion resistance, and features vinyl insulation.
This connector uses a crimp termination type, which enhances mechanical strength through its double crimp design.
The tab size for this spade connector is 6.35 x 0.8 mm.
The insulation is fully insulated to prevent electrical shocks and short circuits, enhancing safety when handling electrical assemblies.
The orientation of this connector is straight, allowing for easy installation in tight spaces.
This model is manufactured in Taiwan, Province Of China.
It is suitable for use in machinery, electrical equipment, home appliances, and automotive applications.
The internal copper sleeve enhances the mechanical reliability of the crimp joints, providing added strength.
The yellow color coding corresponds to the wire size range, allowing for quick identification and reducing installation errors.
The contact material used in this connector is brass, which is plated with tin for improved conductivity.
