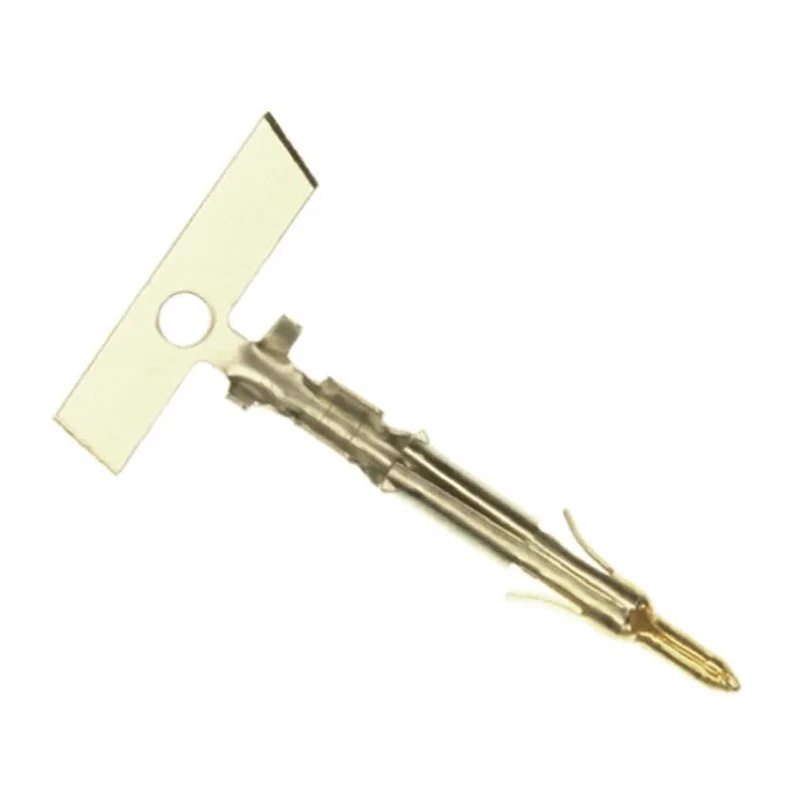

TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal 7A Current, 20 AWG Min Crimp, 16 AWG Max Wire 171636-1
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TE Connectivity |
| Current | 7A |
| Model | 171636-1 |
| Gender | Male |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -20°C |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 16AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Compatible with Mini-Universal MATE-N-LOK connector housings for secure connections.
- Constructed from brass with tin plating for reliable conductivity and corrosion resistance.
- Supports wire sizes ranging from 0.5 mm² (20 AWG) to 1.3 mm² (16 AWG).
- Maximum contact resistance of 10 milliohms ensures efficient electrical performance.
- Operates effectively in temperatures from -20°C up to 105°C.
- Termination via crimp method for firm and dependable wire attachment.
- Manufactured in Japan maintaining high quality standards.
- Male gender contact designed for specific connector configurations.
Product Description
TE Connectivity 171636-1 Mini-Universal MATE-N-LOK Series Male Crimp Terminal is engineered to provide reliable electrical connectivity with a current rating of 7 amperes and compatibility for wire sizes from 20 AWG minimum to 16 AWG maximum.
Designed specifically for use with Mini-Universal MATE-N-LOK Connector Housings, this male contact terminal features a brass material construction with tin plating to ensure excellent conductivity and corrosion resistance. Its robust design supports operating temperatures from -20°C to 105°C, making it suitable for a variety of industrial and commercial applications.
The termination type is crimp, offering a secure mechanical and electrical bond to the wire. With a maximum contact resistance of 10 milliohms, the terminal ensures efficient current flow and minimal power loss.
Applications for this crimp terminal include use in electronic components assembly, power connectors in electrical equipment, HVAC systems, automation control gear, and other industrial environments requiring compact, high-performance connectors.
Compatible with Mini-Universal MATE-N-LOK connector housing. Brass contact material with tin plating for durability and conductivity. Supports wire sizes 20 AWG to 16 AWG (0.5 mm² to 1.3 mm²). Maximum operating temperature of 105°C enables usage in demanding environments.
Male gender contact with crimp termination for secure connections. Rated for 7A current ensuring reliable electrical performance. Manufactured in Japan ensuring consistent quality and standards compliance.
This terminal is an essential component for professional electrical installations and repairs requiring dependable connectivity and lasting performance. Discover the full range of TE Connectivity's Mini-Universal MATE-N-LOK Connectors and accessories on EnvMart for all your industrial electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this terminal is 7 amperes.
This model supports wire sizes ranging from 20 AWG (0.5 mm²) to 16 AWG (1.3 mm²).
The maximum operating temperature for this terminal is 105°C.
It uses a crimp termination method for secure wire attachment.
The contact material is brass with tin plating to enhance conductivity and corrosion resistance.
The maximum contact resistance is 10 milliohms, ensuring efficient electrical performance.
This terminal operates effectively in temperatures ranging from -20°C to 105°C.
It is designed for use with Mini-Universal MATE-N-LOK connector housings.
This terminal is manufactured in Japan, maintaining high quality standards.
This contact terminal is male gender, designed for specific connector configurations.
Applications include electronic components assembly, power connectors in electrical equipment, and HVAC systems among others.
The model number of this terminal is 171636-1.
