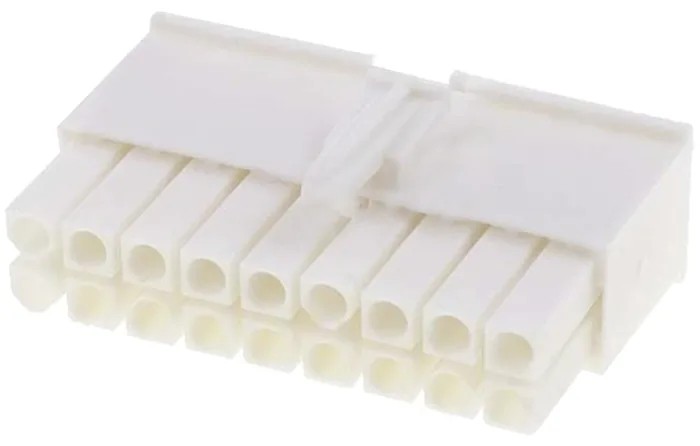

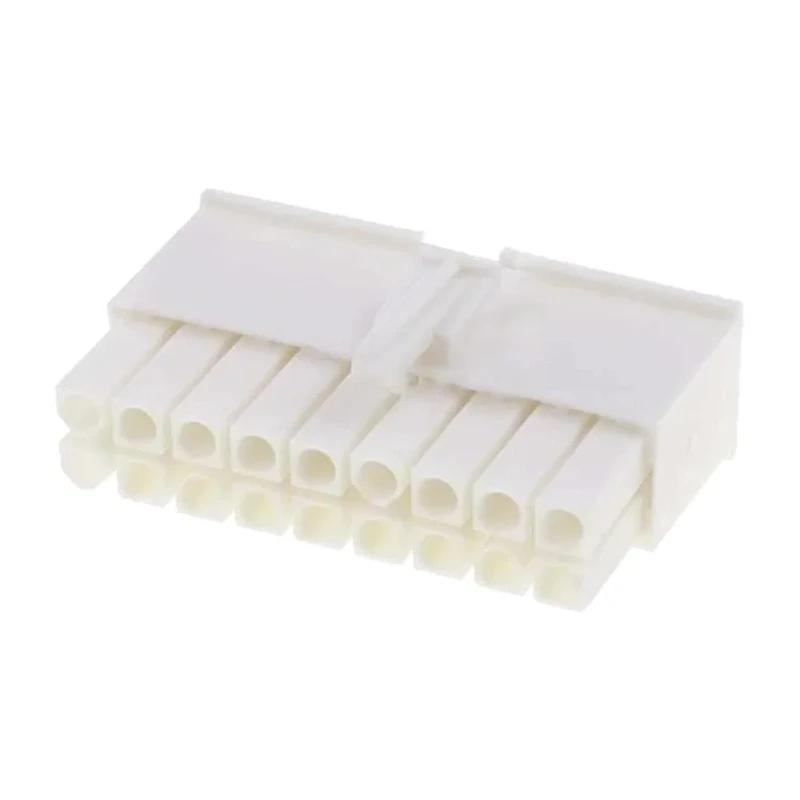

TE Connectivity Mini-Universal MATE-N-LOK Male Connector Housing 4.14 mm Pitch 18 Way 2 Row Straight 770584-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 30.68mm |
| Model | 770584-1 |
| Width | 23.83mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | Mini-Universal MATE-N-LOK |
| Number of Rows | 2 |
| Pitch | 4.14mm |
| For Use With | Mini-Universal Mate-N-Lok Cap Housing |
| Number of Contacts | 18 |
| Connector Gender | Male |
Key Features
- Constructed with rugged Nylon material for durability in industrial environments.
- Fully polarized design prevents mismating ensuring correct connections.
- Positive locking mechanism provides a secure connection to mating connectors.
- Compatible with Mini-Universal Mate-N-Lok Cap Housing contacts.
- Compact size with 30.68 mm length and 23.83 mm width for space-saving installations.
- Designed for wire-to-wire and wire-to-panel configurations.
- Low insertion and extraction force enhances ease of use during assembly.
- Ideal for consumer electronics, commercial, power supply, HVAC, lighting, and portable device applications.
Product Description
TE Connectivity 770584-1 Mini-Universal MATE-N-LOK Male Connector Housing is engineered for reliable industrial and commercial electrical connections. This 18-contact, 2-row straight Connector Housing features a precise 4.14 mm pitch and is molded from durable Nylon material to withstand harsh operating conditions.
The housing is fully polarized to prevent mismating, with a positive locking mechanism that guarantees secure mating retention. Designed for cable mounting, it is compatible with Mini-Universal Mate-N-Lok Cap Housing contacts and is suitable for numerous wiring configurations including wire-to-wire and wire-to-panel setups.
Its compact dimensions (30.68 mm length and 23.83 mm width) facilitate space-efficient integration into electronic assemblies. This reliable connector system supports a splash-proof design appropriate for applications requiring sealing in challenging environments.
Typical applications include consumer electronics, commercial electrical systems, power supplies, HVAC equipment, lighting installations, and portable devices. The connector complies with UL, CSA, and VDE standards, ensuring safety and performance in diverse industrial and manufacturing contexts.
Rugged Nylon housing ensures durability under industrial conditions. Fully polarized to prevent incorrect connections and enhance safety. Positive locking mechanism secures mating connectors firmly. Compatible with Mini-Universal Mate-N-Lok contacts for versatile connectivity.
Compact dimensions enable use in space-constrained assemblies. Suitable for wiring configurations including wire-to-wire and wire-to-panel. Designed for use in consumer electronics, commercial, HVAC, lighting, and portable devices.
Meets UL, CSA, and VDE approval standards for electrical components. Explore our extensive range of electrical connectors and housings for industrial and commercial applications to meet your precise connectivity requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 4.14 mm.
This model features 18 contacts.
The connector housing has a length of 30.68 mm and a width of 23.83 mm.
It is constructed from rugged Nylon material, designed for durability in industrial environments.
Yes, it is fully polarized to prevent mismating, ensuring correct connections.
This model supports cable mounting configurations.
It is suitable for applications in consumer electronics, commercial electrical systems, HVAC, lighting installations, and portable devices.
The orientation of this connector housing is straight.
Yes, it features a positive locking mechanism that provides a secure connection to mating connectors.
It complies with UL, CSA, and VDE standards for electrical components.
Yes, it is designed for both wire-to-wire and wire-to-panel configurations.
This connector housing belongs to the Mini-Universal MATE-N-LOK series.
