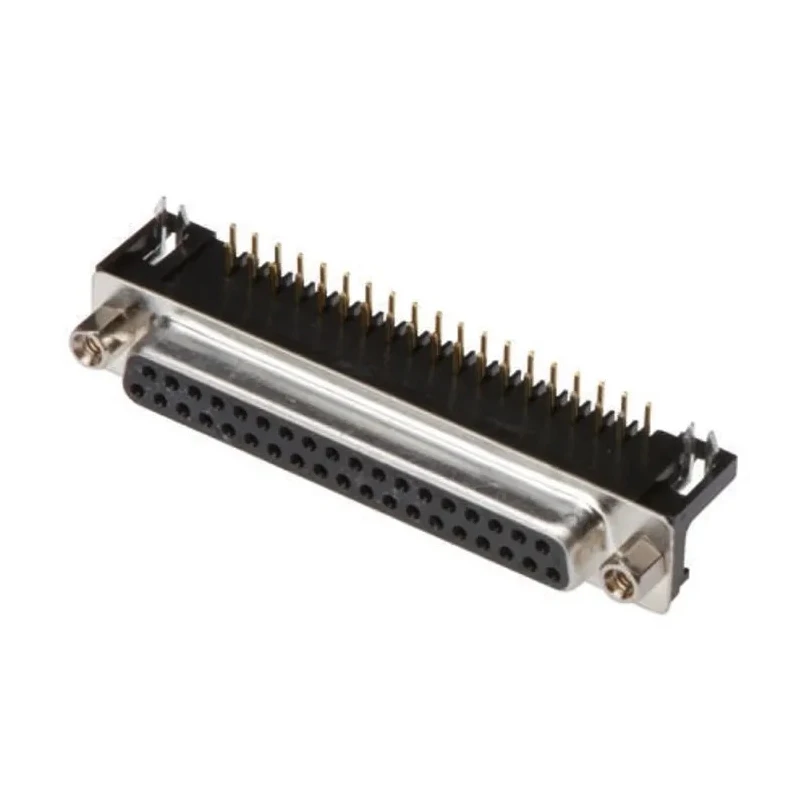

ASSMANN WSW A-DF 37 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Screw Lock A-DF 37 A/KG-T1

Free Delivery in India | Lowest Global Shipping Charges

ASSMANN WSW A-DF 37 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Screw Lock A-DF 37 A/KG-T1

Name: ASSMANN WSW A-DF 37 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Screw Lock A-DF 37 A/KG-T1
Brand: ASSMANN WSW
SKU: 208343



Category D-Sub Connector Brand ASSMANN WSW Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	ASSMANN WSW
Orientation	Right Angle
Current	3A
Model	A-DF 37 A/KG-T1
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	A-DF
Mounting Hardware	4 to 40 UNC Screw Lock
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Pitch	2.77mm
Contact Plating	Gold, Nickel
Number of Contacts	37
Contact Gender	Female
Connector Type D	D-Sub

Key Features

This connector is designed for reliable right angle PCB mounting applications.
It features a robust polybutylene terephthalate housing for durability and electrical insulation.
Contacts are made of brass with gold and nickel plating to ensure low contact resistance and corrosion resistance.
Rated for operation in temperatures ranging from -40°C to 105°C making it suitable for demanding environments.
Termination is by solder method, providing secure electrical connection.
Includes mounting hardware with 4 to 40 UNC screw lock ensuring mechanical stability.
This female contact connector conforms to the A-DF series standards.
Ideal for use in industrial electronics, instrumentation, and communication equipment.

Product Description

ASSMANN WSW A-DF 37 A/KG-T1 is a 37 way, right angle, through hole D-Sub Connector with a 2.77 mm pitch designed for PCB mounting applications. The product operates reliably under electrical currents of up to 3A and voltages of 250V. Featuring a polybutylene terephthalate housing and brass contacts plated with gold and nickel, it ensures excellent durability, corrosion resistance, and electrical performance.

The connector's solder termination type allows for secure and permanent connections, suitable for industrial, laboratory, and manufacturing electronics assemblies. Its operating temperature range from -40°C to 105°C supports use in harsh and varied environmental conditions.

Equipped with 4 to 40 UNC screw lock mounting hardware, this connector guarantees mechanical stability and ease of installation in critical electronic systems. The female contact gender and compliance with the A-DF series standard make it compatible with a wide range of D-Sub interfaces.

Applications include data communication devices, control systems, instrumentation, and industrial automation setups where robust and reliable connector solutions are required. This component is designed to meet demanding operational criteria, making it a preferred choice for engineers and technicians.

This connector is designed for reliable right angle PCB mounting applications. It features a robust polybutylene terephthalate housing for durability and electrical insulation. Contacts are made of brass with gold and nickel plating to ensure low contact resistance and corrosion resistance.

Rated for operation in temperatures ranging from -40°C to 105°C making it suitable for demanding environments. Termination is by solder method, providing secure electrical connection. Includes mounting hardware with 4 to 40 UNC screw lock ensuring mechanical stability.
