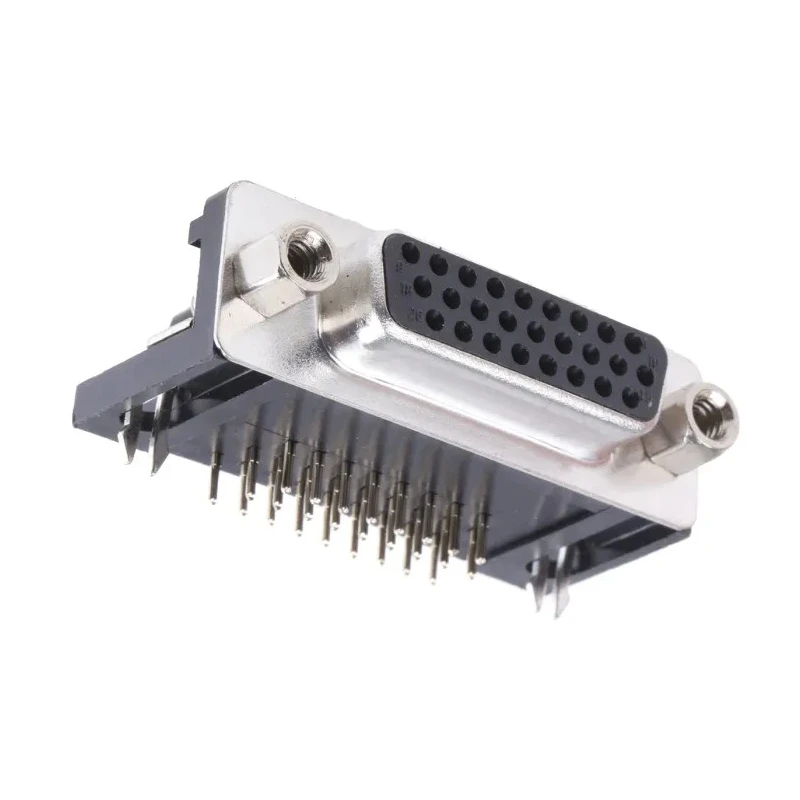

ASSMANN WSW 26 Way Right Angle Through Hole D-Sub Connector Female 2.29 mm Pitch A-HDF 26 A-KG/T

The ASSMANN WSW A-HDF 26 A-KG/T is a high-density 26 way right angle through hole D-Sub connector designed to provide reliable and efficient connections for printed circuit boards. Featuring a precise 2.29 mm pitch, this female connector offers secure interfacing perfect for industrial and electronic component applications.

Its polybutylene terephthalate housing provides robust mechanical strength coupled with excellent chemical resistance, making it suitable for demanding electrical environments. The brass contacts ensure low resistance and reliable electrical conductivity, supporting current levels up to 3 amperes and voltages reaching 250 volts max.

Designed to withstand operating temperatures from -55°C to 105°C, this connector performs consistently across a wide range of thermal conditions. The right angle orientation allows for optimized PCB layout and space saving in compact assemblies, making it ideal for industrial control systems, communication devices, instrumentation, and power connectors.

With a secure through hole mounting style, it guarantees stable mechanical retention on the PCB, reducing the risk of connector dislodgement due to vibrations or mechanical stresses. The connector’s female gender on both contacts and housing ensures compatibility with male counterparts in the D-Sub family, adhering to the A-HDF series standard for high density configurations.

This product is manufactured in China and complies with essential industry standards, though no specific certifications are listed. It is suitable for applications in electronics manufacturing, instrumentation, communication equipment, laboratory instrumentation, and industrial automation systems.

Features 26 contacts designed for high-density PCB applications. Right angle orientation optimizes board space efficiency. Constructed with polybutylene terephthalate housing for durability. Brass contact material ensures excellent conductivity.

Supports operating voltage of up to 250 volts and current of 3 amperes. Wide operating temperature range from -55°C to 105°C suits various environments. Through hole mount type for secure PCB installation. Connector and contact gender are female for compatibility.

Offers 2.29 mm pitch aligning with standard D-Sub Connector specifications. Manufactured in China with series designation A-HDF for high density. For further exploration, browse the Electronics & Electricals category on EnvMart to find complementary connectors and components from ASSMANN WSW and other reputable brands.
