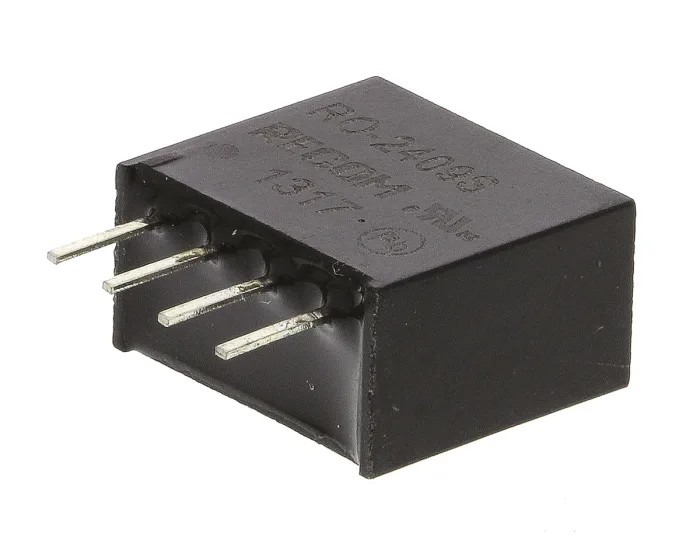

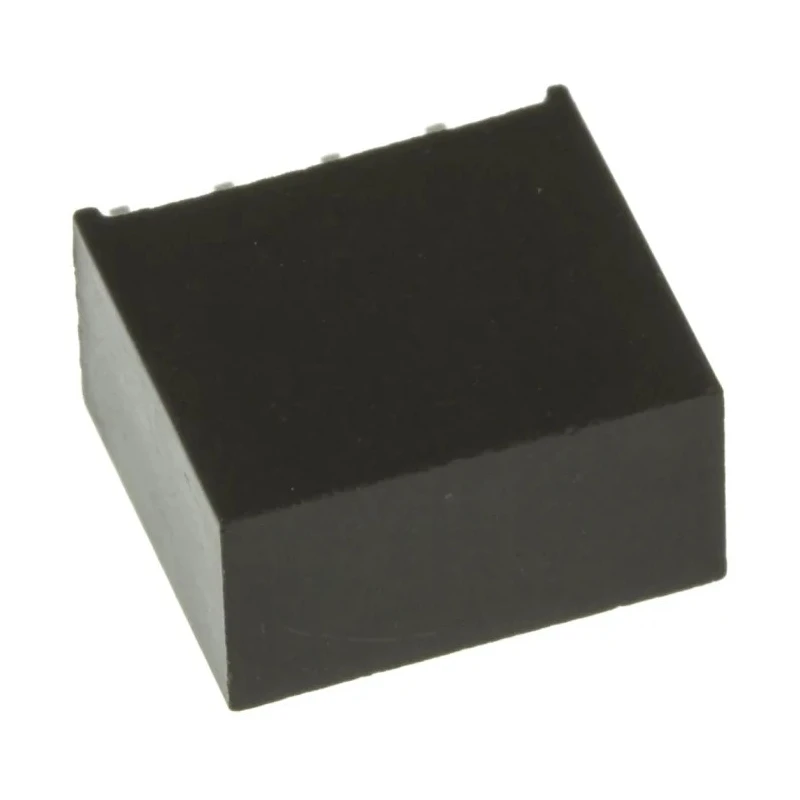

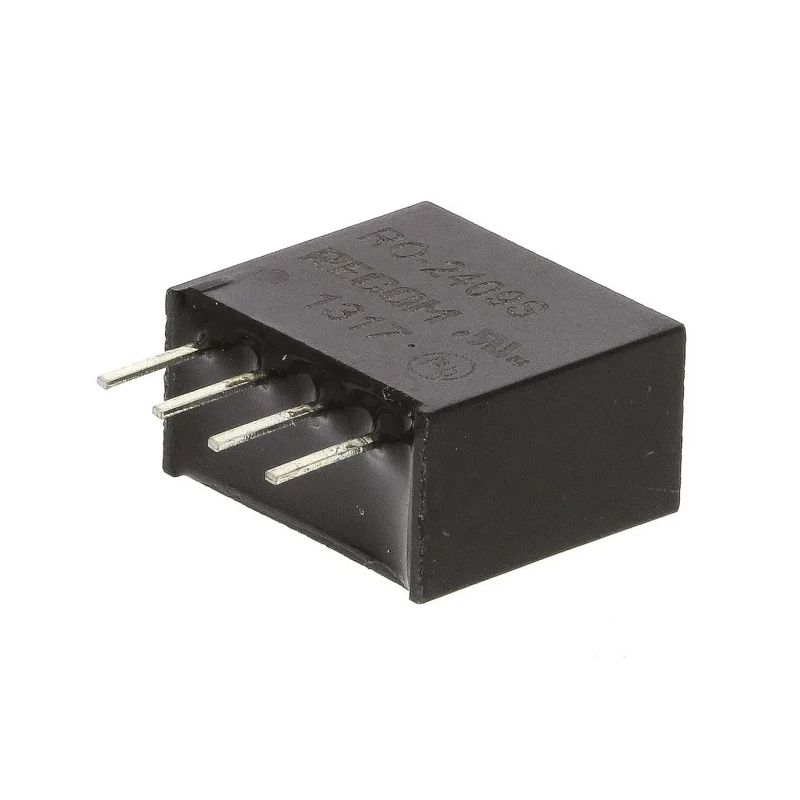

Recom DC/DC Converter 9V DC Output 111mA, 24V DC Input, 1 W Power, Through Hole 6-Pin RO-2409S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RO DC/DC Converter, 9V dc/ 111 mA, 24V dc In |
| Brand | Recom |
| Efficiency | 80% |
| Length | 11.5mm |
| Model | RO-2409S |
| Depth | 10mm |
| Gross Weight | 1.4g |
| Width | 10mm |
| Mount Type | Through Hole |
| Series | RO |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 200000h |
| Number of outputs | 1 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 24V dc |
| Standards/Approvals | CSA, IEC, UL |
| Minimum Input Voltage | 0V |
| Number of Pins | 6 |
| Output Voltage 1 | 9V dc |
| Output Current 1 | 111mA |
| Output Voltage Adjustment Range | 0/24 V |
| Isolation Voltage | 1kV dc |
Key Features
- The output is unregulated and isolated with 1kV DC isolation voltage.
- This converter operates efficiently at 80% efficiency at full load.
- It features a compact SIP package with a footprint of 11.5mm length, 10mm width, and 10mm depth.
- The device supports an operating temperature range of -40°C to 85°C for robust performance.
- It includes short circuit protection and has a MTBF of 200,000 hours.
- Suitable for industrial and electronic power supply applications requiring isolated DC voltage conversion.
- Fully encapsulated UL94V-0 package meets CSA, IEC, and UL approvals.
- The converter's ripple and noise is low at 100mV peak-to-peak.
Product Description
Recom RO-2409S DC/DC Converter provides a robust and efficient solution for isolating and converting DC voltages in electronic and industrial applications. It delivers a stable 9V DC output at 111mA from a 24V DC input with a maximum output power of 1 W within a compact, through-hole SIP package.
This single output converter offers unregulated output with up to 1kV DC electrical isolation, making it suitable for sensitive industrial environments. The component’s 80% efficiency at full load minimizes power loss and heat generation, enhancing reliability and performance.
Constructed with a fully encapsulated UL94V-0 rated package, the RO-2409S meets CSA, IEC, and UL standards, ensuring compliance with global safety regulations. Operating temperature ranges from -40°C to 85°C without derating extend its usability in harsh environments.

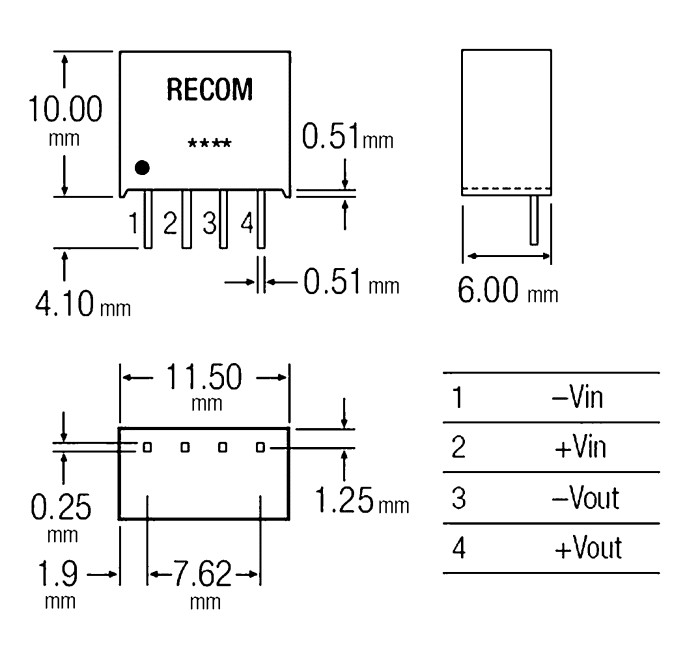

Physical dimensions are compact, measuring 11.5 mm in length, 10 mm in width, and 10 mm in depth, with a light weight of 1.4 g. Its through-hole 6-pin mount type fits standard SIP4 industry layouts for easy PCB integration.
The converter includes short circuit protection and provides low ripple and noise output at 100mV peak-to-peak, preserving signal integrity across applications. This model has an MTBF of 200,000 hours following MIL-HDBK 217F reliability standards, demonstrating long-term operational stability.
The output voltage is 9V DC with an output current of 111mA. Supports a maximum input voltage of 24V DC and a minimum of 0V. Isolation voltage of 1kV DC for safe electrical separation. Compact SIP package through-hole mount design with 6 pins.
Operates safely between -40°C and 85°C ambient temperatures. Efficiency of 80% at full load reducing power consumption. Compliance with CSA, IEC, and UL standards for safety. Fully encapsulated UL94V-0 rated design. Low ripple and noise output, 100mV peak-to-peak.
This DC/DC converter is ideal for industrial control systems, power supplies, instrumentation, and other electronic applications requiring reliable isolated voltage conversion. Explore our Recom products and other DC/DC Converters on EnvMart for comprehensive solutions to meet your electronic power design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model is 9V DC.
It supports a maximum input voltage of 24V DC.
This converter operates at 80% efficiency at full load.
It operates within a temperature range of -40°C to 85°C.
The isolation voltage is 1kV DC, providing safe electrical separation.
It delivers an output current of 111mA.
The dimensions are 11.5 mm in length, 10 mm in width, and 10 mm in depth.
It comes in a fully encapsulated SIP package type.
The maximum output power is 1W.
It meets CSA, IEC, and UL standards for safety.
The ripple and noise output is low at 100mV peak-to-peak.
This model uses a through-hole mounting type with 6 pins.
