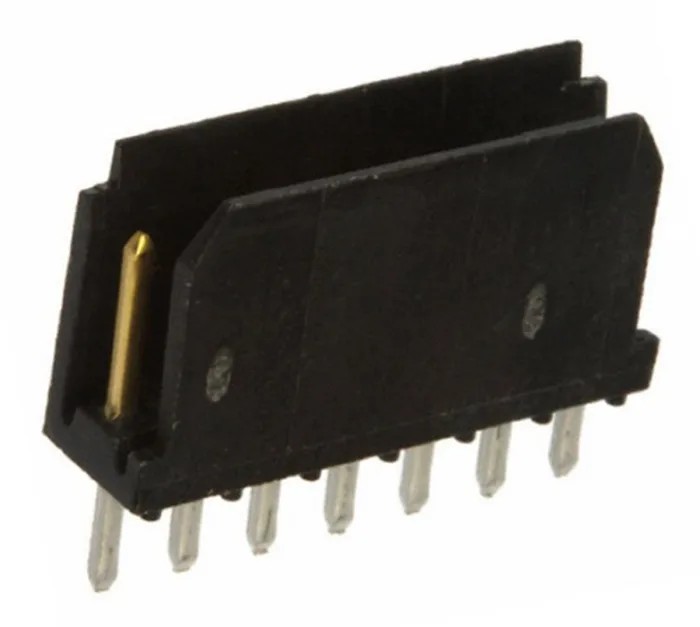

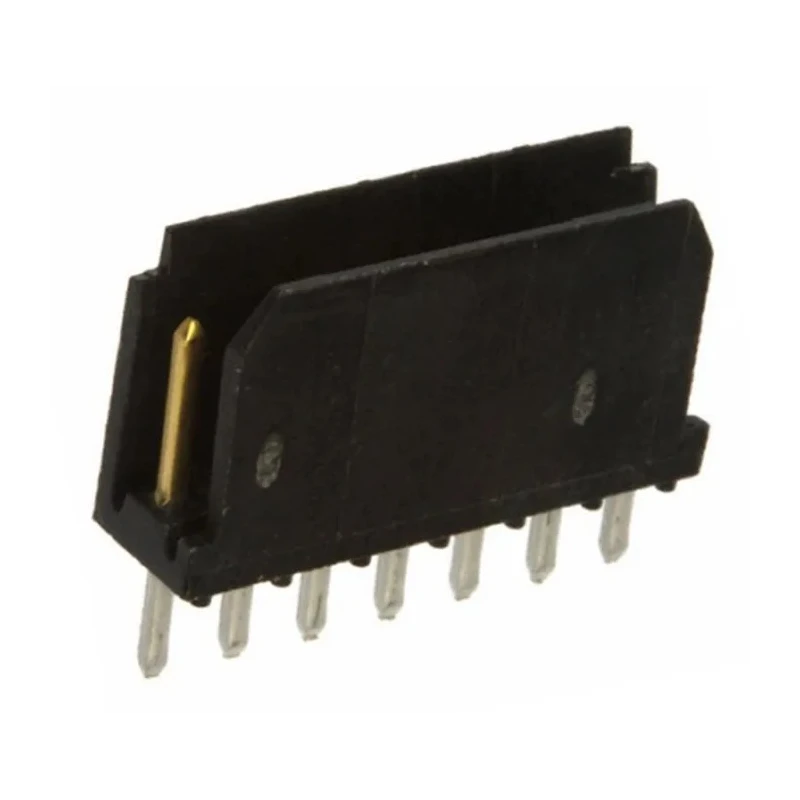

Amphenol Communications Solutions Dubox Series Straight Through Hole PCB Header 7 Contacts 2.54 mm Pitch 76384-307LF
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 3A |
| Model | 76384-307LF |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Thermoplastic Polyester |
| Contact Material | Phosphor Bronze |
| Series | Dubox |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 7 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a straight orientation with through hole mounting type for strong PCB attachment.
- Shrouded design ensures secure mating and prevents mismating.
- Contact material is phosphor bronze plated with gold for optimal conductivity and corrosion resistance.
- Designed to operate within a temperature range from -40°C to 125°C.
- Rated for 3A current with a voltage withstand of up to 1kV.
- Housing is made of glass filled thermoplastic polyester for durability and high temperature resistance.
- Ideal for industrial, instrumentation, medical, consumer, communications, and data applications.
Product Description
Amphenol Communications Solutions 76384-307LF Dubox Series Straight Through Hole PCB Header offers a robust interconnection solution with 7 contacts arranged in a single row and a 2.54 mm pitch. This PCB header is designed to provide secure and reliable wire-to-board connections for various electronic assemblies.
The header features a shrouded design on two walls and is end-to-end stackable to optimize PCB space. Its polarization feature prevents mismating, and a friction lock ensures a secure mating connection. The housing is constructed from glass filled thermoplastic polyester, which withstands high soldering temperatures, making it suitable for wave solder and reflow processes.
This PCB header supports a current rating of 3A and can operate across a wide temperature range from -40°C to 125°C. The contact material is phosphor bronze with a gold plating to improve conductivity and durability. The product is rated for a voltage of 1kV and is suitable for demanding industrial, instrumentation, medical, consumer electronics, communications, and data transmission applications.
The 76384-307LF model's straight orientation and through hole mount type allow for easy integration into circuit boards. These headers meet the demanding environmental and mechanical performance requirements of modern electronic systems.
Features a straight orientation with through hole mounting type for strong PCB attachment. Shrouded design ensures secure mating and polarization prevents mismating. High-quality phosphor bronze contacts plated with gold provide excellent conductivity.
Glass filled thermoplastic polyester housing withstands high temperature soldering processes. Supports a maximum current of 3A and voltage rating of 1kV. Operates reliably in temperatures from -40°C to 125°C. Suitable for industrial, instrumentation, medical, consumer, communications, and data applications.
Explore more PCB Header connectors by Amphenol Communications Solutions on EnvMart for a wide range of industrial and commercial uses.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this PCB header is 1kV.
This model supports a maximum current of 3A.
The pitch size of the contacts is 2.54 mm.
It can operate within a temperature range from -40°C to 125°C.
The housing is made of glass filled thermoplastic polyester, which withstands high soldering temperatures.
This PCB header has 7 contacts arranged in a single row.
It uses a solder termination type.
The shrouded design and polarization feature help prevent mismating.
Yes, it is suitable for various applications including industrial, instrumentation, medical, consumer, communications, and data transmission.
The connector system type is wire-to-board.
The contact material is phosphor bronze plated with gold to improve conductivity and corrosion resistance.
This PCB header uses a through hole mounting type for strong PCB attachment.
