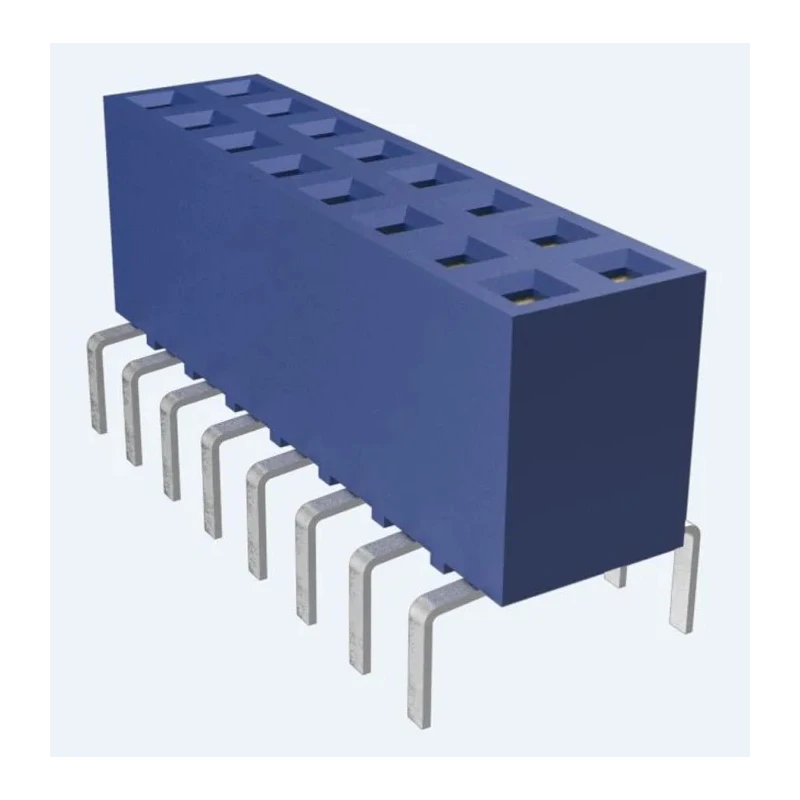

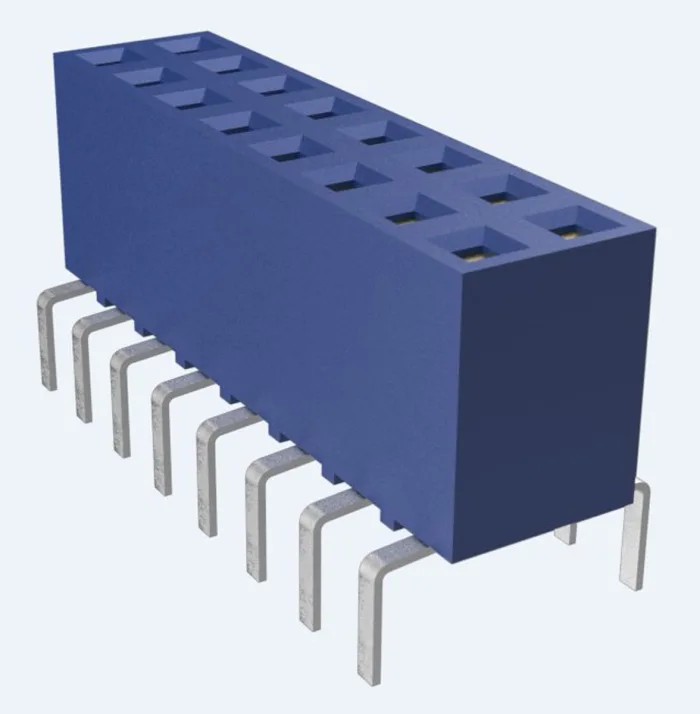

Amphenol Communications Solutions Dubox Series Straight Through Hole PCB Socket, 16-Contact, 2 Row, 2.54 mm Pitch 71991-308LF

Amphenol Communications Solutions 71991-308LF Dubox Series Straight Through Hole PCB Socket is a high-quality connector designed for board-to-board applications featuring 16 contacts arranged in 2 rows with a 2.54 mm pitch. This PCB socket offers excellent electrical and mechanical performance, making it suitable for industrial, instrumentation, medical, consumer electronics, communications, and data applications.

The connector housing is made from glass filled thermoplastic material capable of withstanding solder reflow and wave solder processes, enhancing durability and reliability. The bronze contacts with gold plating provide corrosion resistance and maintain high electrical conductivity.

The dual beam contact design offers reliable electrical connection with a cost-effective duplex plating, while the contacts are pre-stressed to ensure low insertion force, facilitating easy assembly and maintenance. The floating solder tails ensure self-centering and coplanarity on the PCB pads, thus improving solder joint quality and reliability.

The socket's fully shrouded design protects contacts from damage and contamination. Its end-to-end and side-to-side stackable construction optimizes PCB space utilization. It supports a rated current of 12 A and voltage of 1 kV, suitable for demanding electronic environments.

Operating temperature ranges from -65°C to +125°C, making it adaptable to a wide range of operating conditions. This 2.54 mm Dubox series connector meets the requirements of various industrial and commercial applications where reliable interconnect solutions are critical.

Features a low profile, space-saving design. Employs durable glass filled thermoplastic housing. Bronze contacts with gold plating for superior conductivity. Dual beam contacts offering reliable electrical performance. Supports 12 A current and 1 kV voltage ratings.

Through hole mount type with straight orientation. Operating temperature from -65°C to 125°C. Fully shrouded and stackable for efficient PCB use. Floating solder tails for better solder joint alignment.

This product is ideal for use in industrial, instrumentation, medical, consumer electronics, communications, and data equipment manufacturing facilities. Amphenol Communications Solutions provides reliable interconnection systems designed to perform in demanding operational environments.
