Recom RP08-AW DC/DC Converter 5V DC 1.6A Output 24V DC Input 9V Input 8W Through Hole DIP Package RP08-AW
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RP08-AW DC/DC Converter, 5V dc/ 1 |
| Brand | Recom |
| Efficiency | 87% |
| Length | 31.8mm |
| Model | RP08-AW |
| Depth | 10.2mm |
| Gross Weight | 18g |
| Width | 20.3mm |
| Mount Type | Through Hole |
| Series | RP08-AW |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1078000h |
| Number of outputs | 1 |
| Ripple and Noise | 75mV Pk-Pk |
| Maximum Output Power | 8W |
| Maximum Input Voltage | 24V dc |
| Standards/Approvals | EN 60950 |
| Minimum Input Voltage | 9V |
| Number of Pins | 24 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 1.6A |
| Output Voltage Adjustment Range | 9/40 V |
| Isolation Voltage | 1.6kV dc |
| Output Current 2 | 1600mA |
Key Features
- Wide input voltage range from 9V to 24V DC for versatile applications.
- High efficiency of up to 87% minimizes energy loss and heat generation.
- Isolation voltage rating of 1.6kV DC ensures electrical safety and noise reduction.
- Robust operating temperature range from -40°C to 85°C for harsh environments.

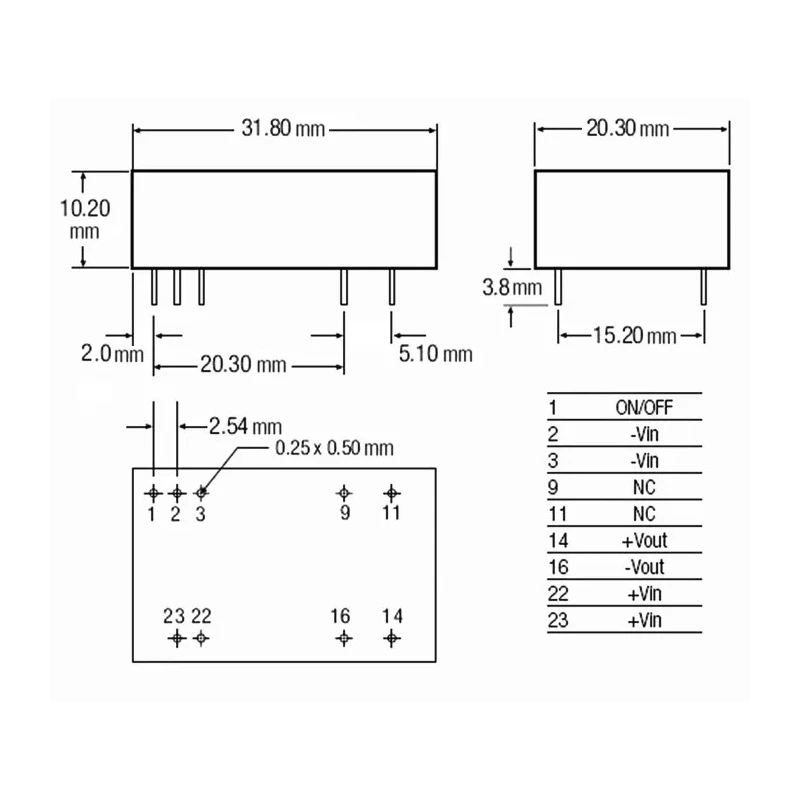

- Compact dimensions of 31.8mm length, 20.3mm width, and 10.2mm depth in a standard DIP24 package.
- Output voltage accuracy of ±1% provides stable power supply performance.
- Continuous short-circuit and overload protection enhance device reliability.
- Housing made of nickel-coated copper for corrosion resistance and electrical conductivity.
Product Description
Recom RP08-AW DC/DC Converter is a high-performance electronic component designed to convert input DC voltages ranging from 9V to 24V into a regulated 5V DC output at 1.6A, delivering 8W of power. Packaged in a reliable through-hole DIP24 housing, this converter features a nickel-coated copper case ensuring excellent electrical conductivity and resistance to corrosion.
With an efficiency rating of 87%, this unit minimizes wasted energy as heat, improving system performance. It offers robust electrical isolation of 1.6kV DC, safeguarding your circuits from electrical disturbances and enhancing safety.
The converter supports a broad operating temperature range from -40°C to 85°C, making it suitable for demanding industrial, manufacturing, railway, medical, and consumer electronic applications. Its low ripple and noise (75mV peak-to-peak) output ensures clean, stable voltage for sensitive electronics.
Additional features include built-in protection against short circuits, overloads, overvoltage, and undervoltage conditions, preventing damage and extending device lifespan. The compact dimensions and industry-standard pinout simplify integration into a variety of electronic designs and printed circuit boards.
Wide 9V to 24V DC input voltage range for flexible use. Regulated 5V DC output at 1.6A supports a range of devices. High isolation voltage of 1.6kV DC for electrical safety. Efficient 87% conversion reduces excess heat dissipation.
Durable nickel-coated copper housing enhances longevity. Operating temperature range from -40°C to 85°C adapts to tough environments. Low output ripple and noise of 75mV peak-to-peak for stable output. Comprehensive protection circuits guard against electrical faults.
Compact DIP24 package with 24 pins simplifies PCB mounting.
Ideal for industrial electronics, consumer devices, and railway technology, the Recom RP08-AW combines efficiency, safety, and durability to deliver reliable power conversion. Browse EnvMart for more power supply and converter options suitable for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Recom RP08-AW DC/DC converter has an input voltage range of 9V to 24V DC.
This unit provides a maximum output power of 8W.
The output current rating for this model is 1.6A.
The efficiency rating of this converter is up to 87%.
The dimensions of the RP08-AW are 31.8mm in length, 20.3mm in width, and 10.2mm in depth.
The isolation voltage rating for the RP08-AW is 1.6kV DC.
This unit operates within a temperature range of -40°C to 85°C.
The Recom RP08-AW uses a through-hole mounting type.
The output ripple and noise for this model is 75mV peak-to-peak.
The RP08-AW complies with the EN 60950 safety standard.
This model has a total of 24 pins.
The housing of the RP08-AW is made of nickel-coated copper, which provides corrosion resistance and good electrical conductivity.
