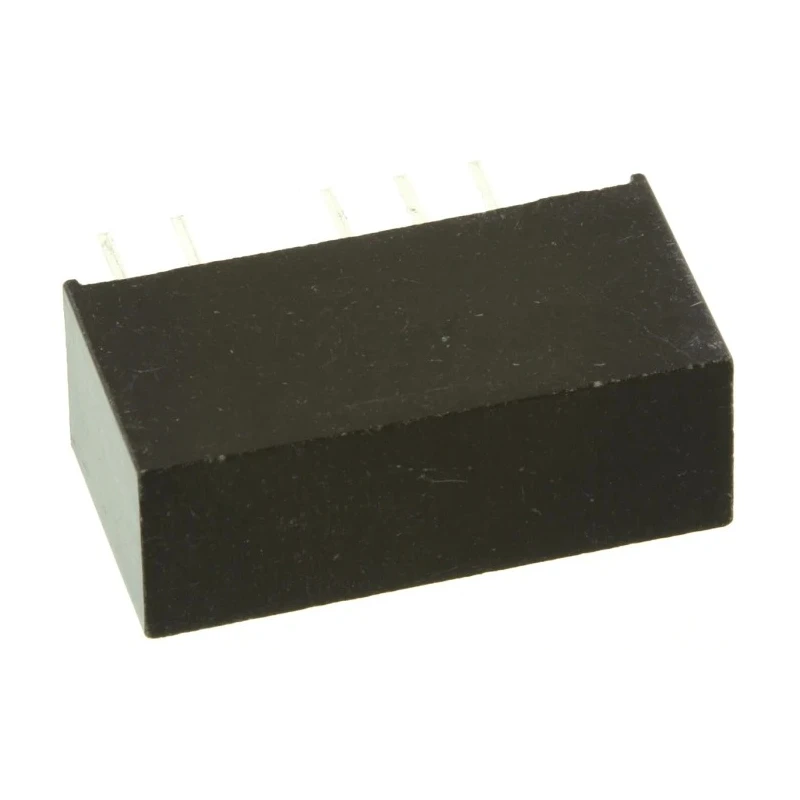

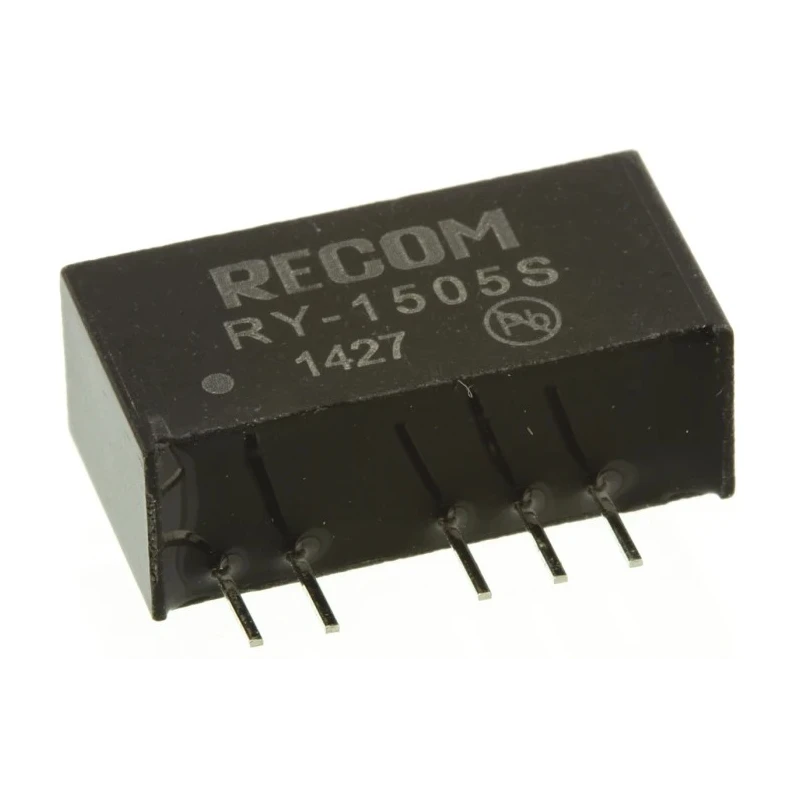

Recom DC/DC Converter 5V DC 200mA Input 14.25-15V SIP7 Through Hole Package 1W RY-1505S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RY DC/DC Converter, 5V dc/ 200 mA, 15V dc In |
| Brand | Recom |
| Efficiency | 60% |
| Length | 19.65mm |
| Model | RY-1505S |
| Depth | 10.2mm |
| Gross Weight | 2.8g |
| Width | 10.2mm |
| Mount Type | Through Hole |
| Series | RY |
| Maximum Operating Temperature | 70°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 135000h |
| Number of outputs | 1 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 15V dc |
| Standards/Approvals | UL, IEC, CSA |
| Minimum Input Voltage | 14.25V |
| Number of Pins | 7 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 200mA |
| Output Voltage Adjustment Range | 4.5/5.5 V |
| Isolation Voltage | 1kV dc |
Key Features
- Operates with input voltage range from 14.25V up to 15V DC.
- Compact SIP7 package allowing through hole mounting.
- Isolation voltage of 1kV DC ensures safe operation.
- High reliability with 135,000 hours MTBF rating.
- Wide operating temperature range from -40°C to 70°C.
- Efficient conversion with approximately 60% efficiency.
- Designed without need for heatsink due to encapsulated package.
- SIP7 package compliant with UL94V-0 flame retardant standards.
Product Description
Recom RY-1505S DC/DC Converter is a high-quality, regulated isolated converter designed to provide a steady 5V DC output at 200mA from a DC input voltage range of 14.25V to 15V. Packaged in a compact SIP7 through hole mount design, this converter is well suited for various electronic and industrial applications requiring reliable low-power DC-DC conversion.
The converter features a 1W maximum output power capability and an isolation voltage of 1kV DC ensuring operational safety in sensitive circuits. It achieves approximately 60% efficiency and operates safely within an ambient temperature range from -40°C to 70°C with derating above maximum temperature. The encapsulated SIP7 package is flame retardant to UL94V-0 standards and does not require additional heatsinking, simplifying installation and integration.
Its robust design supports a mean time between failures (MTBF) of 135,000 hours, indicative of extreme reliability for long-term operation in demanding environments. The output delivers low ripple noise of 100mV peak-to-peak, beneficial for noise-sensitive electronics. This DC/DC converter is suitable for use in industrial electronics, power management systems, communication devices, and embedded systems requiring isolated power conversion.
Operates with input voltage from 14.25V to 15V DC. Provides regulated 5V DC output at 200mA current. Encapsulated SIP7 package with through hole mounting. Isolation voltage rated at 1kV DC for enhanced safety. Wide temperature range from -40°C to 70°C accommodates harsh environments.
No heatsink required due to highly efficient design. Compliance to UL, IEC, and CSA standards ensures quality and safety. Low output ripple and noise minimizes interference. 135,000 hours MTBF supports long operational life.
Ideal for industrial, laboratory, and commercial electrical systems. Explore our extensive range of DC/DC Converters at EnvMart for reliable and quality power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 14.25V to 15V DC.
It provides a regulated output voltage of 5V DC with a maximum output current of 200mA.
The maximum output power capability of this unit is 1W.
It achieves approximately 60% efficiency during operation.
The SIP7 package has dimensions of 19.65mm in length, 10.2mm in width, and 10.2mm in depth.
The isolation voltage is rated at 1kV DC, ensuring operational safety.
It operates safely within a temperature range from -40°C to 70°C.
The MTBF rating for this unit is 135,000 hours, indicating high reliability.
This model supports through hole mounting due to its SIP7 package design.
It complies with UL, IEC, and CSA standards for safety and quality.
The output delivers low ripple noise of 100mV peak-to-peak, beneficial for sensitive electronics.
This converter is suitable for industrial electronics, power management systems, communication devices, and embedded systems requiring isolated power conversion.
