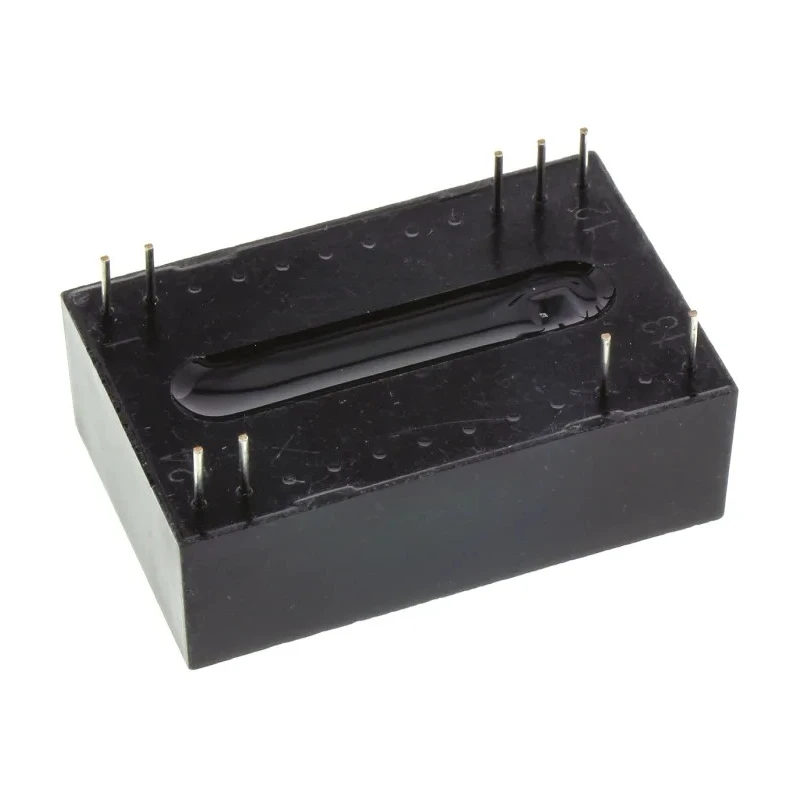

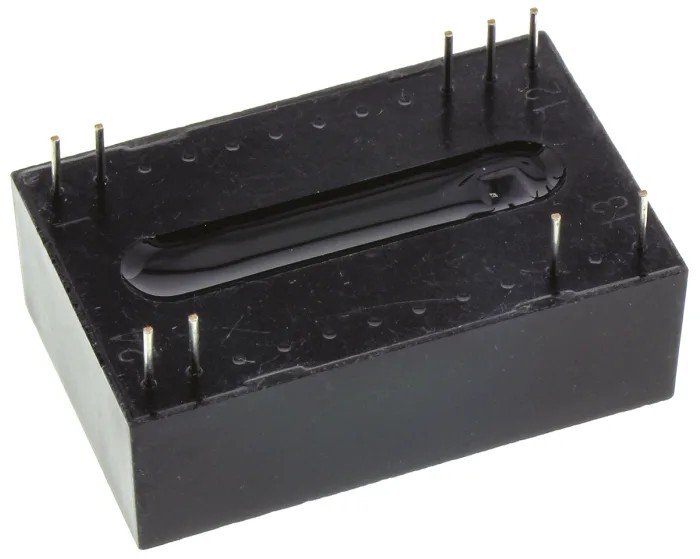

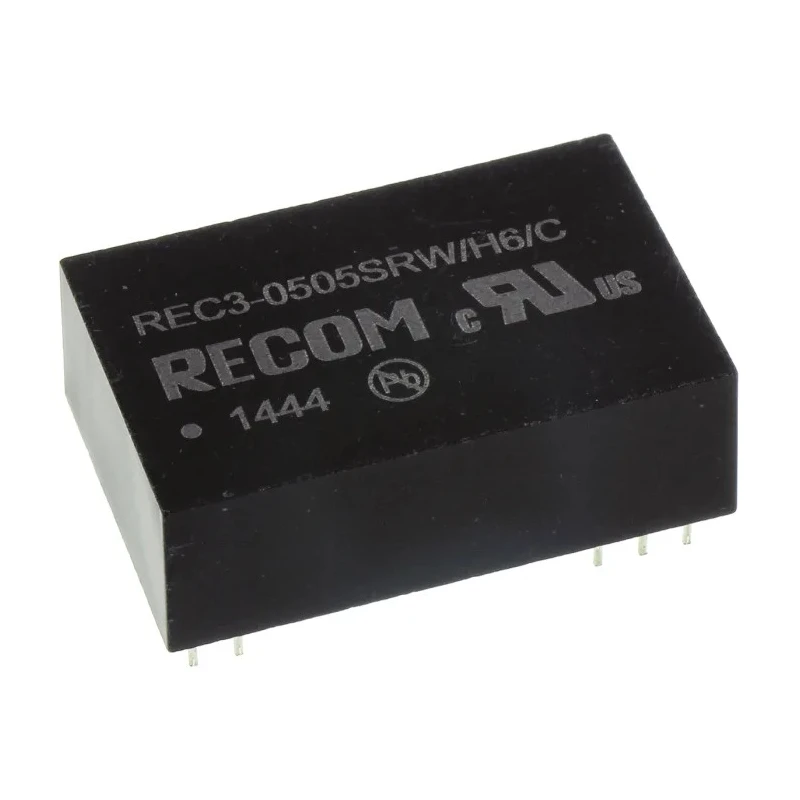

Recom 5V dc/ 600 mA DC/DC Converter, 5V dc Input, 4.5V Input, 3W Through Hole DIP Package REC3

Recom REC3 is a 5V DC/DC Converter model REC3-0505SRW/H6/C designed for reliable regulated isolated power supply in electronic and industrial applications. It provides a fixed 5V DC output with 600 mA current capacity from a 4.5 to 5V DC input range, delivering up to 3W output power. Packaged in a compact through-hole DIP24 form factor measuring 32mm length, 10.2mm width, and 10.2mm depth, this module ensures efficient power conversion with 79% efficiency.

The converter supports an isolation voltage of 3kV AC, enhancing safety and noise immunity in sensitive applications. It operates robustly in harsh environments with an operating temperature range from -40°C minimum to 80°C maximum without derating. Low ripple and noise (50mV Pk-Pk) maintains stable output quality.

Featuring a Mean Time Between Failures (MTBF) of 186,000 hours, the REC3 series is reliable for continuous use. It complies with important industrial standards such as CSA, IEC, and UL, and the package material meets UL94V-0 flame retardant specifications.

The DIP24 miniature package design facilitates ease of installation into printed circuit boards requiring through-hole mounting, suitable for industrial, laboratory, and commercial power supply solutions. This converter is ideal for applications requiring regulated isolated DC power, including embedded systems, instrumentation, and automation equipment.

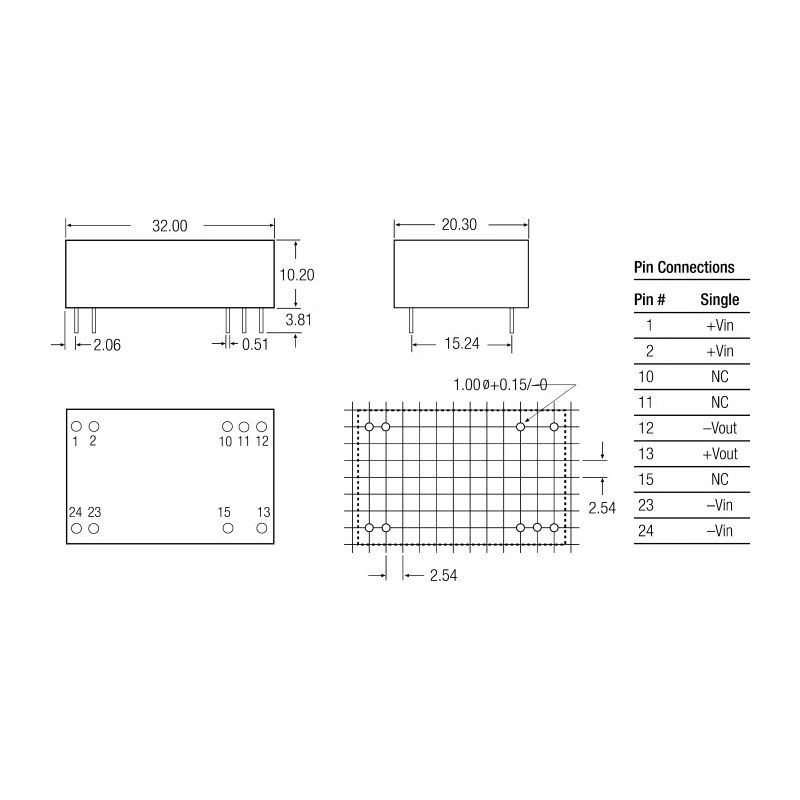

Provides a regulated 5V DC output with 600mA current capacity. Accepts input voltage range from 4.5V to 5V DC. Features high isolation voltage up to 3kV AC for safety. Compact DIP24 package with dimensions 32mm x 10.2mm x 10.2mm.

Operates efficiently with 79% efficiency and MTBF of 186,000 hours. Stable operation in temperature range from -40°C to 80°C. Low ripple and noise performance at 50mV peak-to-peak. Complies with CSA, IEC, and UL standards.

Suitable for regulated isolated DC-DC conversion in industrial and electronic applications. Country of origin: Taiwan, Province of China. Explore more DC/DC Converters at EnvMart for a wide selection of power supply solutions.
