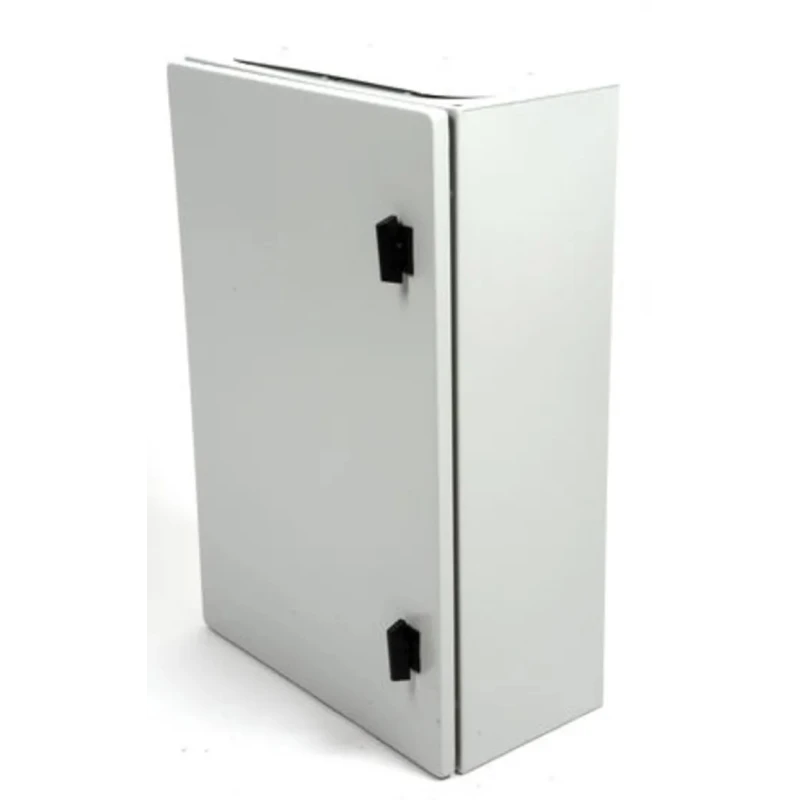

Schneider Electric Spacial CRN Series Steel Wall Box IP66, IK10, 800 mm x 600 mm x 300 mm NSYCRN86300P

Schneider Electric NSYCRN86300P Spacial CRN Series Steel Wall Box provides a robust solution for indoor and outdoor electrical enclosures requiring high protection standards. Delivering IP66 ingress protection and IK10 impact resistance, this enclosure is engineered for industrial environments demanding durability and long-lasting watertight performance. Its steel body is finished with an epoxy-polyester powder coat in light grey (RAL 7035), ensuring corrosion resistance and professional aesthetics.

The enclosure dimensions are 800 mm height, 600 mm width, and 300 mm depth, compactly designed for wall mounting. Doors of the enclosure are removable and reversible with a 120° opening angle, secured by a double bar locking mechanism. Smart hinges facilitate door removal and reversal, enhancing installation flexibility.

A polyurethane seal ensures continuous protection against moisture ingress. The enclosure includes a cable gland plate with membranes suitable for secure cable entry protection and welded earth studs on both the door and body to meet electrical safety requirements.

Certified to IEC 62208, UL, cULus, RoHS, and REACH standards, this enclosure complies with stringent industrial and environmental regulations, making it suitable for use in electrical distribution, industrial automation, and control systems.

The compact Wall Box offers a maximum load capacity of 50 kg/m², and the welded back studs are shoulder-mounted for mounting with 10 mm screws. Various inserts such as plain, silk-screen, micro-perforated, and insulated cable gland plates are available for customization, accommodating diverse industrial needs.

Typical applications include industrial automation, electrical distribution, electronics and industrial networks, and other multi-purpose environments requiring reliable protection against dust, water, and external impacts.

This product is part of Schneider Electric's Better World range, designed with sustainability and disassembly in mind to support environmentally responsible practices. Find other sizes and models in the Spacial CRN and CRNG range that offer additional features like double doors and IP55 ratings for enhanced protection needs.

The enclosure is constructed from durable steel with a light grey epoxy-polyester powder finish. It has a polyurethane seal to guarantee lasting watertightness. Features a double bar door lock and removable, reversible doors with 120° opening.

Suitable for multi-purpose industrial and electrical applications. Includes a cable gland plate and welded earth studs for secure installation. Complies with IEC 62208, UL, cULus, RoHS, and REACH standards. The enclosure body is painted in RAL 7035 polyester paint.

Designed for easy wall mounting with welded back studs. Offers a maximum load capacity of 50 kg/m². Supports various inserts and accessories for customization. Explore the wide range of Schneider Electric products and enclosures to meet your industrial and electrical installation requirements at EnvMart.
