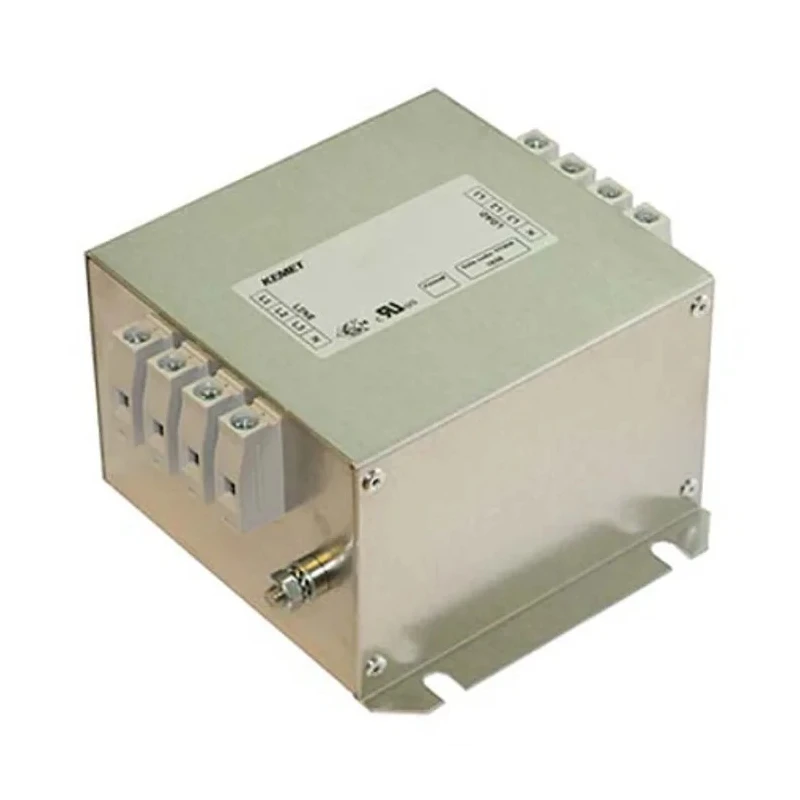

KEMET 3 Phase Chassis Mount EMC Filter, Terminal Block, 80 A, 530V AC, 50Hz-60Hz, Series FLLD4, Model

Free Delivery in India | Lowest Global Shipping Charges

KEMET 3 Phase Chassis Mount EMC Filter, Terminal Block, 80 A, 530V AC, 50Hz-60Hz, Series FLLD4, Model

Name: KEMET 3 Phase Chassis Mount EMC Filter, Terminal Block, 80 A, 530V AC, 50Hz-60Hz, Series FLLD4, Model
Brand: KEMET
SKU: 207570
Price: 563.08 USD
Availability: InStock



Category Terminal Block Brand KEMET Condition New

Specifications

Country of Origin	India
Brand	KEMET
Height	125mm
Length	230mm
Model	FLLD4
Depth	135mm
Packaging	Tape & Reel
Mount Type	Chassis Mount
Operating Frequency	50, 60Hz
Series	FLLD4
Maximum Operating Temperature	100°C
Minimum Operating Temperature	-25°C
Maximum Current	80A
Number of Phases	3
Leakage Current	11mA
Maximum Voltage	530V ac
Standards/Approvals	UL, ENEC, cUL, CQC
Termination Style	Terminal Block
Power Loss	20W

Key Features

This filter features a chassis mount design for secure installation.
Equipped with terminal block termination style enabling easy and reliable connections.
Operates efficiently over a temperature range of -25°C to 100°C.
Applicable for use in servo drives, robotics, battery chargers, and inverters.
Constructed to meet UL, ENEC, cUL, and CQC industry standards for safety and quality.
Compact dimensions with length 230mm, height 125mm, and depth 135mm.
Power loss rating is 20W ensuring efficient energy usage.
Leakage current rated at 11mA for safe operation.

Product Description

KEMET FLLD4080ATHT6 is a high-performance 3 phase chassis mount EMC filter with terminal block termination designed specifically for demanding industrial and electronic environments. It supports a maximum current of 80 A and a rated voltage of 530V AC, performing reliably under both 50Hz and 60Hz frequencies.

This EMC filter is engineered for applications such as switch mode power supplies, servo drives, robotics systems, battery chargers, inverters, converters, industrial machinery, and machine tools. Its chassis mount design enables secure fixture to panels or enclosures, and the terminal block style facilitates straightforward wiring and maintenance.

The filter can operate in harsh temperature conditions ranging from -25°C up to 100°C, maintaining performance stability. It features a power loss rating of 20W which ensures efficiency during operation while limiting energy waste. The leakage current is rated at 11mA, assuring compliance with safety norms.

Built to adhere to recognized standards such as UL, ENEC, cUL, and CQC, this product ensures regulatory compliance while delivering robust EMI suppression. The physical compactness (230mm length, 125mm height, and 135mm depth) makes it suitable for tight installation spaces.

Chassis mount EMC filter with Terminal Block for 3-phase systems. Rated for 80 A maximum current and 530V AC voltage. Operates at 50Hz and 60Hz frequencies. Temperature operating range of -25°C to +100°C. Power loss limited to 20W for efficient performance.

Leakage current limit at 11mA for safety compliance. Compact dimensions facilitate integration into industrial machinery. Approved under UL, ENEC, cUL, and CQC standards.

This product is ideal for industrial, manufacturing, electronic component assembly, robotics, and power supply stabilization applications. Its robust construction and reliable specifications make it a crucial component for mitigating electromagnetic interference in sensitive electronic systems.
