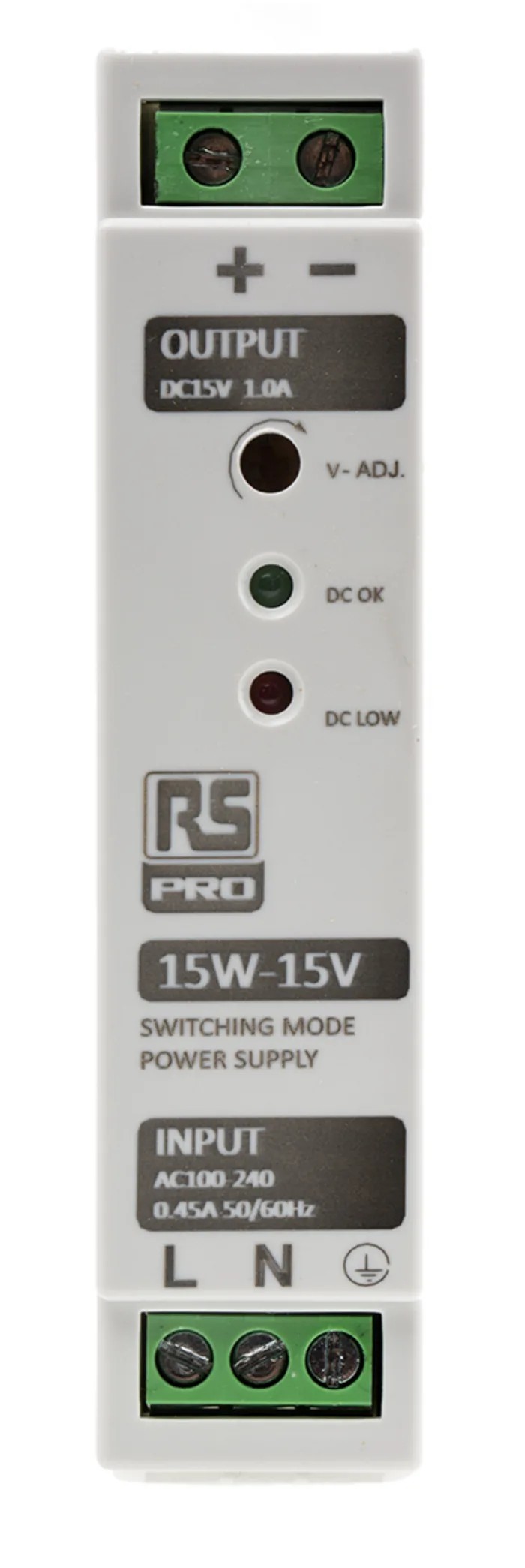

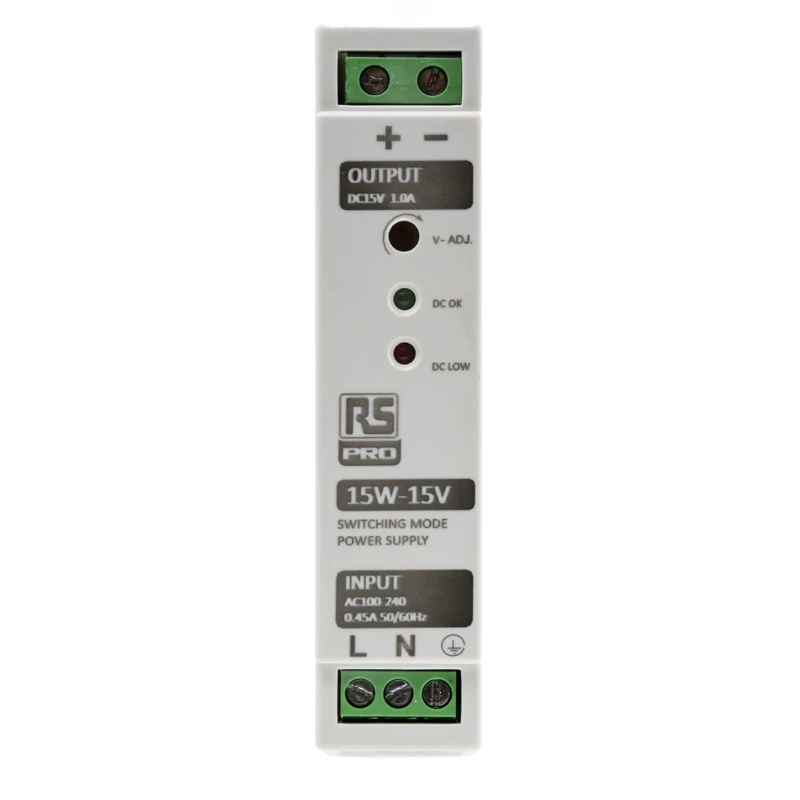

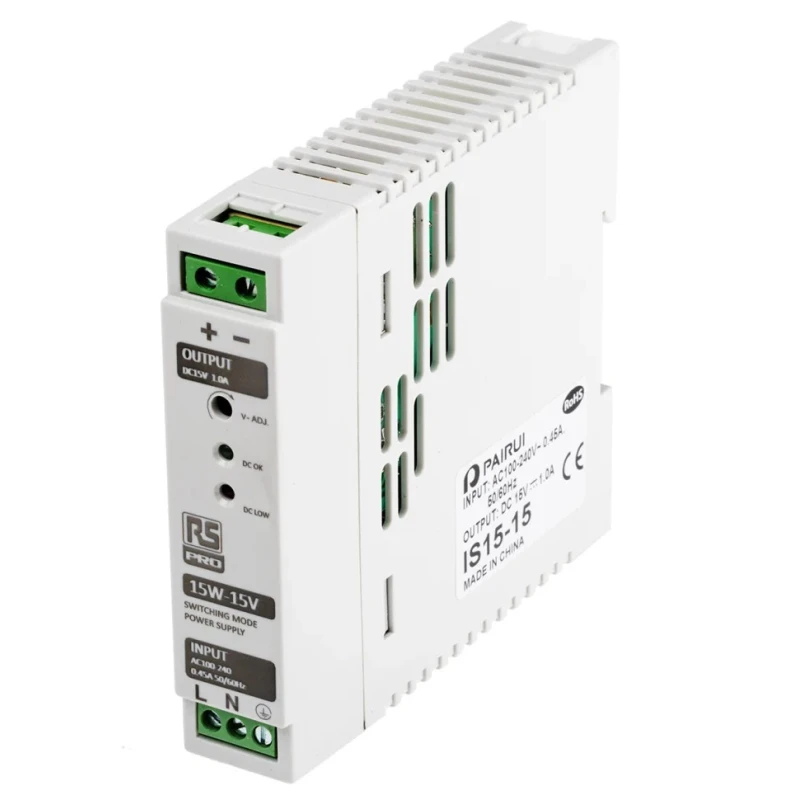

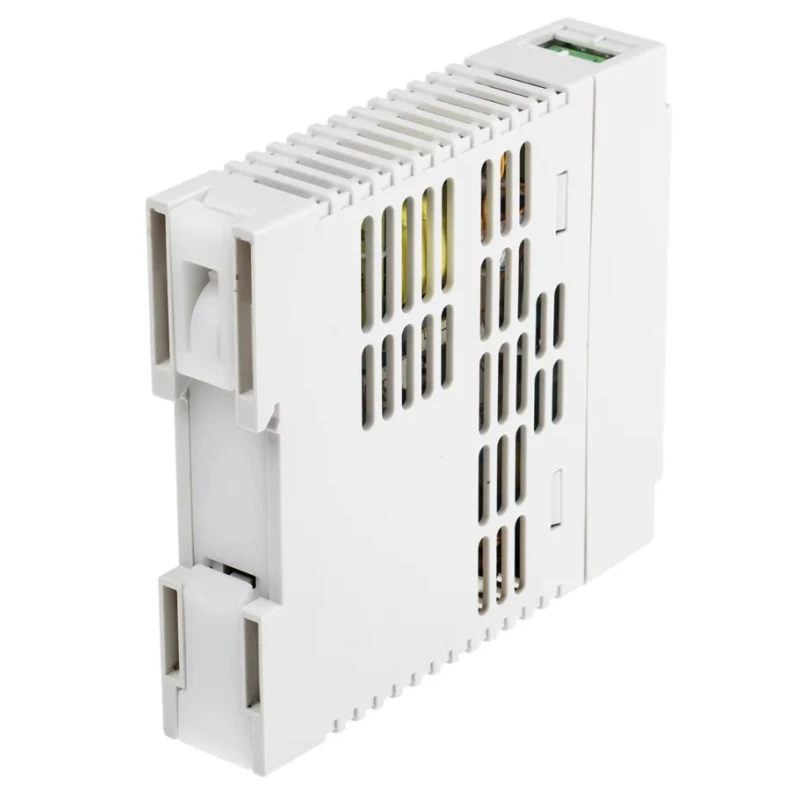

MEAN WELL RS PRO Switch Mode DIN Rail Power Supply 264V AC Input 15V DC 1A Output 15W 136-8302
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Power | 15W |
| Efficiency | 83% |
| Height | 95mm |
| Model | 136-8302 |
| Depth | 108mm |
| Width | 22.5mm |
| Output Current | 1A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switch Mode Power Supply |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Standards/Approvals | cULus, UL, FCC, cUL, CE, CB |
| Maximum Output Voltage | 15V dc |
| Minimum Input Voltage | 90V ac |
Key Features
- Compact 35mm DIN rail mounting design for space-saving installations.
- Universal AC input voltage range from 90 to 264V AC.
- Single-phase input powering a single DC output.
- High efficiency of 83% ensuring energy-saving performance.
- Operational temperature range from -25°C to 70°C for diverse environments.
- Includes protection features against short circuit, over voltage, over current, and over temperature.
- LED indicators for DC power status and low output warning.
- Suitable for industrial automation, process control, and factory equipment.
Product Description
MEAN WELL 136-8302 Switch Mode DIN Rail Power Supply features a universal AC input range of 90 to 264V AC and outputs 15V DC at 1A with a power capacity of 15W, tailored for compact and reliable power delivery.
This device is designed for mounting on a standard 35mm DIN rail, making it an ideal choice for efficient space utilization in electrical panels and industrial installations.
The power supply provides high efficiency at 83%, ensuring reduced energy loss and enhanced reliability over extended operation periods. It is rated to operate between -25°C and 70°C, suitable for diverse industrial environments.
Protection mechanisms include safeguards against short circuit, over voltage, over current, and temperature anomalies, ensuring system safety and durability. The front panel LED indicators provide clear status signals for DC power availability and low output conditions.
This product complies with key international standards, including cULus, UL, FCC, cUL, CE, and CB certifications, assuring quality and reliability consistent with industry benchmarks.
Compact 35mm DIN rail mounting package. Universal single-phase AC input voltage range from 90 to 264 VAC. High-performance, reliable power conversion with 83% efficiency. Full load burn-in tested to ensure early failure detection.
Cooling provided by free air convection without the need for fans. LED indications for DC power and low output alerts. Includes multiple protection features for fault prevention. Dimensions: 22.5mm width, 95mm height, 108mm depth.
This DIN rail power supply unit is suitable for various industrial automation applications, factory control systems, and process control equipment requiring a stable DC power source.
Browse more MEAN WELL products and Switching Power Supplies on EnvMart for diverse industrial and electrical component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power supply has a capacity of 15W.
The dimensions are 22.5mm in width, 95mm in height, and 108mm in depth.
It has an efficiency rating of 83%.
The operational temperature range is from -25°C to 70°C.
It includes protection against short circuit, over voltage, over current, and over temperature.
It complies with cULus, UL, FCC, cUL, CE, and CB certifications.
Cooling is provided by free air convection without the need for fans.
It has a single output.
Yes, it is suitable for industrial automation, process control, and factory equipment.
This unit is designed for mounting on a standard 35mm DIN rail.
