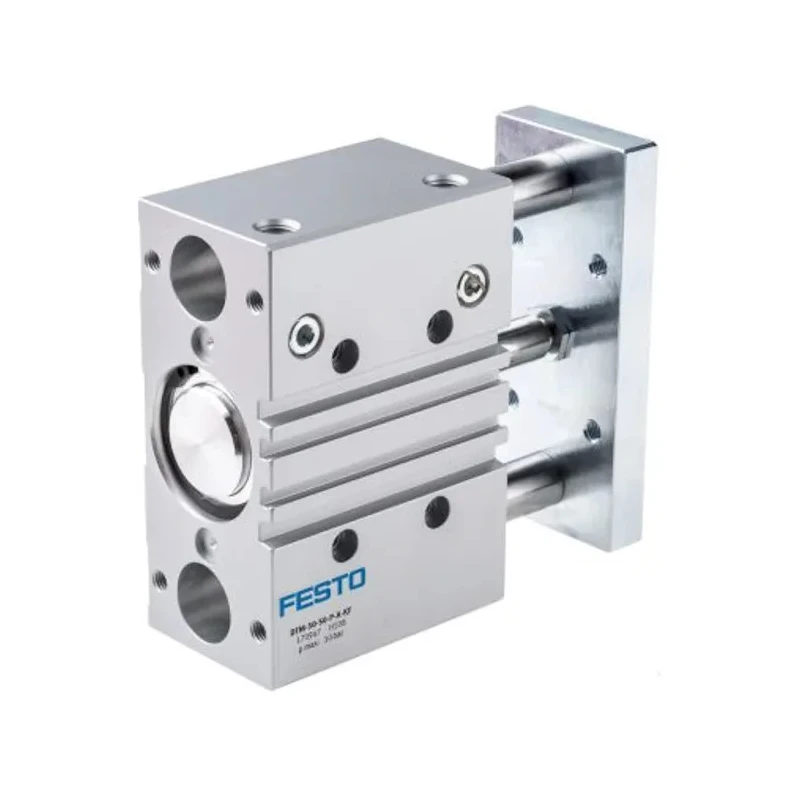

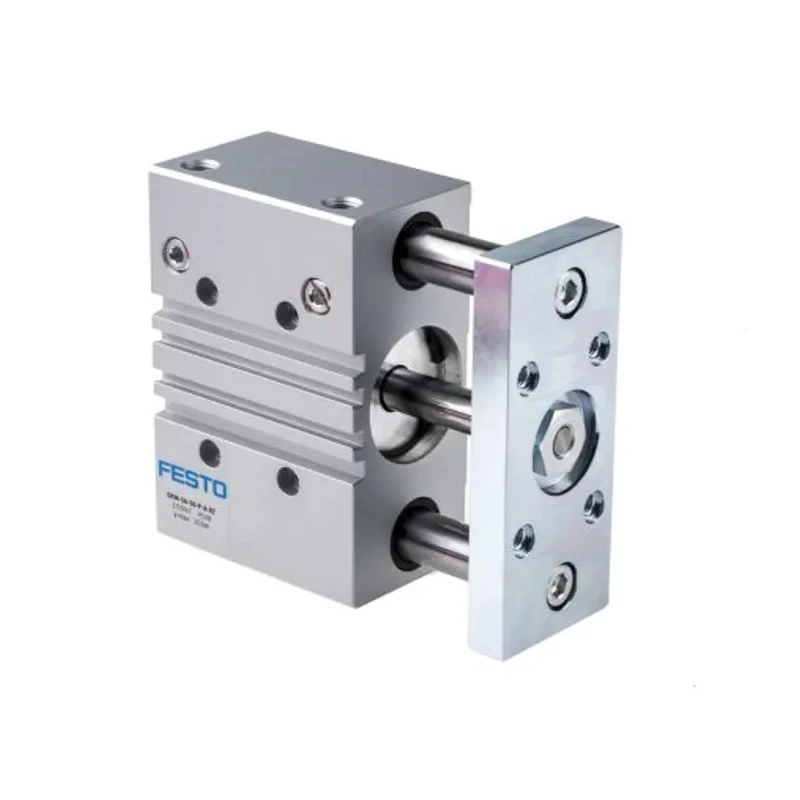

Festo Pneumatic Guided Cylinder 63mm Bore Double Acting 200 mm Stroke DFM Series DFM-63-200-P-A-KF

Festo DFM-63-200-P-A-KF pneumatic guided cylinder is a precision-engineered double acting actuator with a 63mm bore and 200 mm stroke length, designed for demanding industrial use. This DFM series model integrates both drive and guide functions in a compact, rigid aluminium housing, incorporating high alloy stainless steel, nitrile rubber (NBR), polyurethane, tempered steel, and wrought aluminium alloy materials to deliver robustness and longevity.

The actuator features recirculating ball bearings and plain bearings that provide excellent guidance under torque loads and external lateral forces, making it highly suitable for clamping, lifting, stopping, and material handling tasks. The cylinder is equipped with elastomer cushioning plates that reduce noise during operation and enhance durability.

Operating within a temperature range of -5°C to 60°C and supporting a maximum operating pressure of 10 bar, this pneumatic guided cylinder permits a maximum piston speed of 0.8 mm/s. Its single-ended rod and flexible mounting via through holes and versatile air supply ports on the top and side afford installation flexibility in various industrial setups.

The product weighs 10.2 kg and measures 334 mm in length, 162 mm in width, and 78 mm in height. It conforms to RoHS and ISO standards (ISO 1179-1, ISO 228-1), ensuring compliance and quality.

Typical applications include clamping components securely during processing, lifting loads dynamically and powerfully, and reliable stoppage of loads up to 150 kg. The maintenance-free design and high resistance to torque and lateral forces ensure reliable and long-term use in manufacturing, automation, and fluid power industries.

The cylinder embodies a combined drive and guide unit in a single housing for compactness. Recirculating ball bearings enable effective handling of torque loads. Flexible port locations support varied mounting orientations.

Compact and rigid aluminium construction withstands harsh industrial environments. Cushioning reduces operational noise and prolongs service life. Its design allows simple integration of proximity sensors for position feedback.
