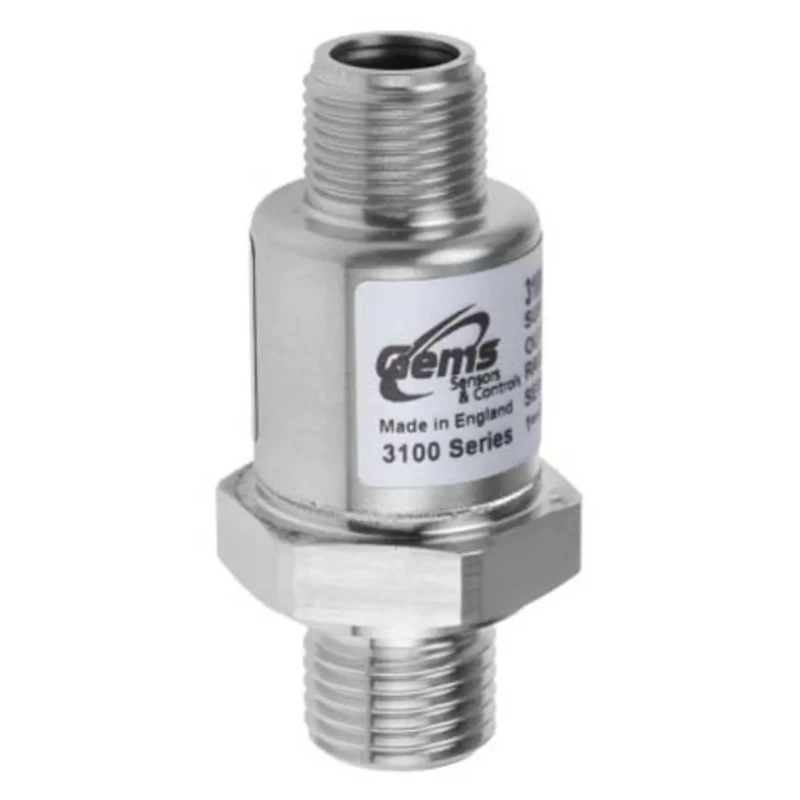

Gems Sensors 3100 Series Pressure Sensor Analogue Output 0 to 25 bar Relative Reading 3100S0025G01E000
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Gems Sensors |
| Response time | 1ms |
| Model | 3100S0025G01E000 |
| IP Rating | IP65, IP67 |
| Housing Material | 17-4 PH Stainless Steel |
| Output type | Analogue |
| Series | 3100 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Maximum Pressure Measurement | 25bar |
| Minimum Pressure Measurement | 0bar |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 8V |
| Pressure Reading Type | Relative |
| Media Measured | Air, Hydraulic Fluid, Oil, Hydraulic Oil |
Key Features
- High accuracy of ±0.25% ensures precise readings.
- Stainless steel 17-4 PH housing offers durability and corrosion resistance.
- Wide operating temperature range from -40°C to 125°C for versatile applications.
- Fast response time of 1 ms enables quick pressure detection.
- IP65 and IP67 rated for robust protection against dust and water ingress.
- Compatible media includes air, hydraulic fluid, oil, and hydraulic oil.
- M12 electrical connections facilitate easy installation.
- Operating voltage range from 8V to 30V supports various system requirements.
Product Description
Gems Sensors 3100S0025G01E000 is a high-performance pressure sensor designed for relative pressure measurement with analogue output, covering a range from 0 to 25 bar. Equipped with a robust 17-4 PH stainless steel housing, this sensor ensures durability in industrial environments.
Its precise accuracy of ±0.25% full scale and fast 1 ms response time make it suitable for demanding applications including automation, hydraulic systems, and process control. The sensor supports media such as air, hydraulic fluids, oil, and hydraulic oil, demonstrating versatility across various industrial sectors.
Operating reliably over temperatures from -40°C to 125°C and protected by IP65 and IP67 ratings, it is ideal for use in harsh conditions. The M12 connection interface guarantees hassle-free installation and integration into existing systems.
The 3100 series technology with sputter element provides exceptional temperature stability and high proof pressures, all compliant with RoHS directives. Manufactured in the United Kingdom, this sensor meets global quality standards.
High accuracy reading to ±0.25% FS. Robust 17-4 PH stainless steel wetted parts for durability. Wide temperature operating range from -40°C to 125°C. Fast response time of 1 millisecond. IP65 and IP67 rated for environmental protection.
Analogue output with 0 to 25 bar measurement range. Compatible with air, hydraulic fluid, oil, and hydraulic oil media. M12 electrical connection for easy installation. RoHS compliant ensuring environmentally safe manufacturing.
This Gems Sensors 3100 series pressure sensor is suitable for applications in industrial automation, hydraulic and pneumatic systems, manufacturing process control, and other demanding environments requiring reliable and accurate pressure sensing.
Explore more Pressure Sensors and measurement solutions in the Sensors category on EnvMart.
