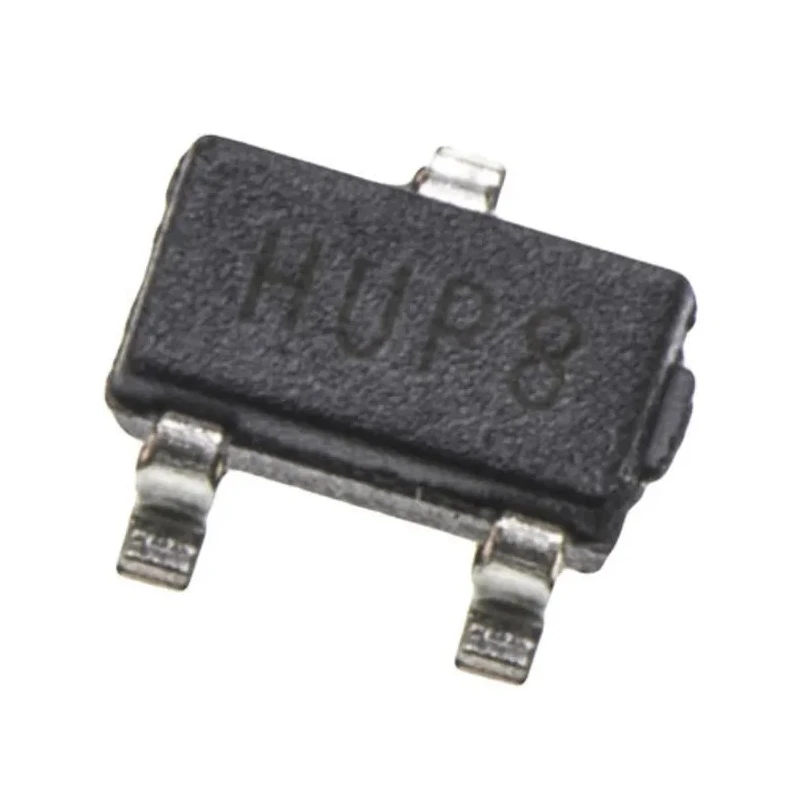

Microchip Voltage Regulator SOT-23A 3-Pin Positive Polarity 16V Maximum Input MCP1703T-3302E/CB
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators Microchip MCP1703T-3302E/CB, Voltage Regulator 16V SOT-23A 3-Pin RS S |
| Brand | Microchip |
| Height | 1.3mm |
| Length | 3.1mm |
| Model | MCP1703T-3302E/CB |
| Width | 1.8mm |
| Mount Type | Surface |
| Series | MCP1703 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23A |
| Polarity | Positive |
| Maximum Input Voltage | 16V |
| Quiescent Current | 2μA |
| Minimum Input Voltage | 2.7V |
| Pin Count | 3 |
Key Features
- Compact SOT-23A 3-pin surface mount package suitable for space-constrained PCB designs.
- Low quiescent current of 2 microamperes supports energy-efficient applications.
- Operates reliably up to 125°C maximum temperature for demanding environments.
- Supports input voltages ranging from 2.7V minimum to 16V maximum.
- Positive polarity output ensures compatibility with standard power regulation needs.
- High stability and low dropout voltage characteristic of MCP1703 series regulators.
- Ideal for use in embedded electronics, industrial controls, and battery-powered devices.
- Pin dimensions approximately 3.1mm length, 1.8mm width, and 1.3mm height for precise mounting.
Product Description
Microchip MCP1703T-3302E/CB is a low dropout (LDO) voltage regulator designed for efficient power management in compact electronic devices. Housed in a small SOT-23A 3-pin surface mount package, this device supports a maximum input voltage of 16V and regulates with positive polarity output. The typical quiescent current of just 2μA enables energy-conscious designs, making it ideal for battery-powered and low-power industrial applications.
With a maximum operating temperature of 125°C, the MCP1703T-3302E/CB is suitable for harsh industrial and environmental conditions. It supports an input voltage range starting at 2.7V, ensuring flexibility for various power sources. The compact dimensions of 3.1mm length, 1.8mm width, and 1.3mm height facilitate easy incorporation into space-limited circuits.
This voltage regulator is widely used in electronics manufacturing, automation, embedded systems, and PCB power management. It exhibits excellent stability and ensures regulated voltage output with low dropout, which is critical for smooth operation of sensitive electronic components.
Compact SOT-23A 3-pin surface mount for tight footprint applications. Low quiescent current at 2μA for energy-efficient designs. Wide input voltage range: 2.7V to 16V maximum. High temperature tolerance up to 125°C operating range.
Positive polarity output voltage regulation for standard power needs. Robust performance for industrial, embedded, and battery-powered electronics. Precisely sized for surface mount technology with minimal PCB space.
Microchip's MCP1703 series voltage regulators combine compact size with reliable operation, making them ideal for industrial automation, power management IC requirements, and portable electronics. Explore more Power Management ICs and Voltage Regulators in the Electronics & Electricals category at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 16V.
The quiescent current is 2μA, making it suitable for energy-efficient applications.
This voltage regulator operates reliably up to a maximum temperature of 125°C.
The dimensions of the SOT-23A package are approximately 3.1mm in length, 1.8mm in width, and 1.3mm in height.
The minimum input voltage supported by this voltage regulator is 2.7V.
It provides a positive polarity output, ensuring compatibility with standard power regulation needs.
This model is designed for surface mounting.
It is ideal for use in embedded electronics, industrial controls, and battery-powered devices.
This voltage regulator has a total of 3 pins.
This model is part of the MCP1703 series of voltage regulators.
The low dropout voltage characteristic is crucial for ensuring smooth operation of sensitive electronic components.
The country of origin for this voltage regulator is India.
