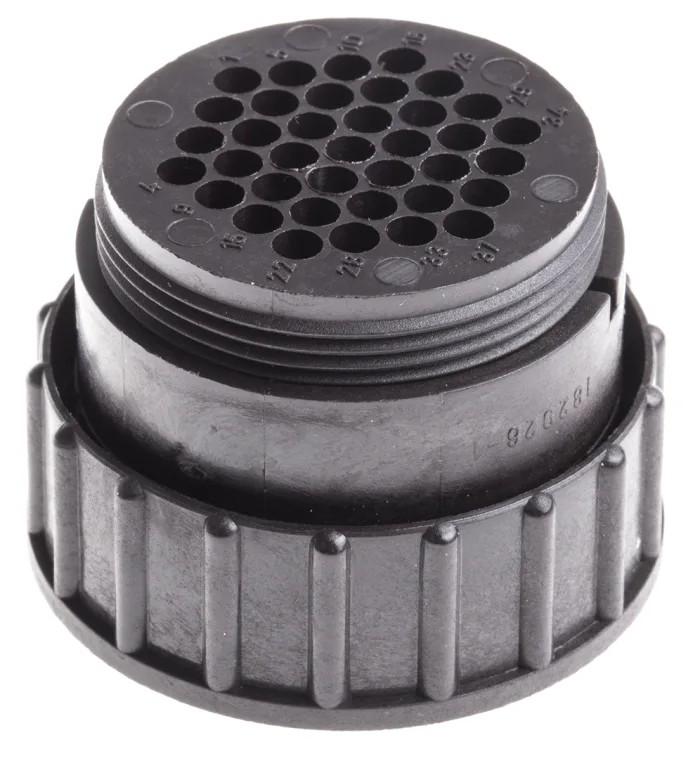

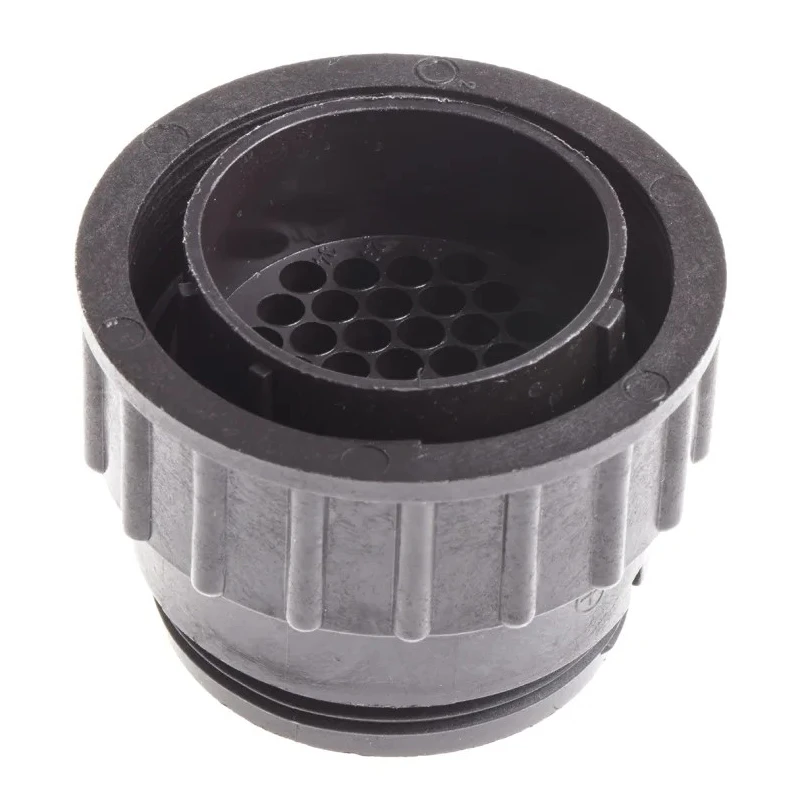

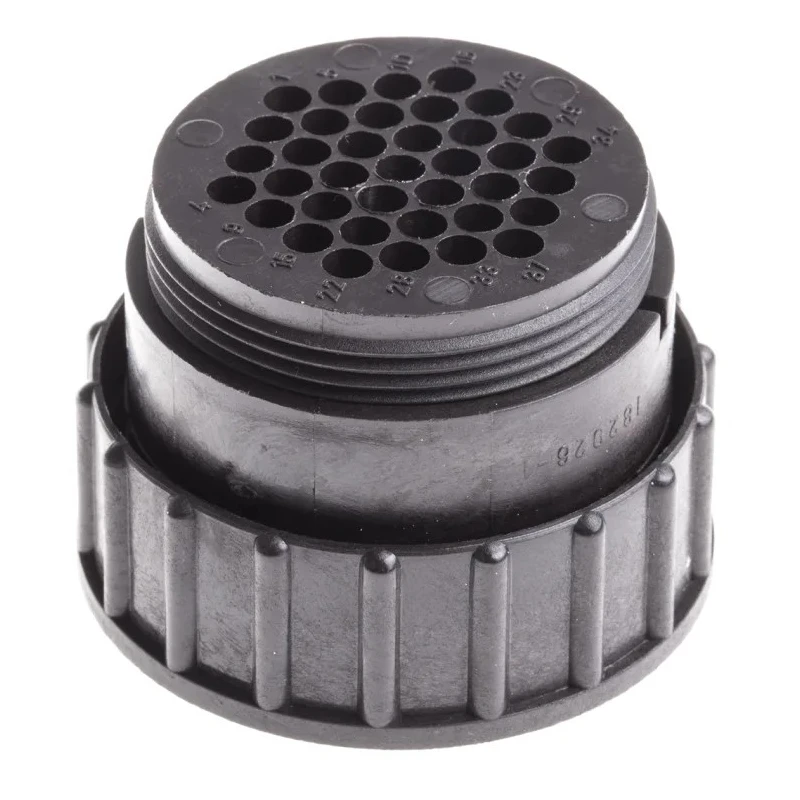

TE Connectivity Industrial Circular Connector, 37 Contacts, Cable Mount, Plug, Male, 600V, 13A, Thermoplastic 182926-1
Specifications
| Country of Origin | Italy |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 13A |
| Model | 182926-1 |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Series | CPC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pole Format | 37 |
| Number of Contacts | 37 |
| Contact Gender | Male |
| Shell Size | 23 mm |
| Mating Type | Keyed |
| Plug/Socket | Plug |
Key Features
- Supports a current rating of 13A and voltage up to 600V.
- Features a straight orientation with a keyed mating type for secure connections.
- Made from durable thermoplastic housing material, UL 94V-0 rated for heat resistance.
- Operates reliably in temperature range from -55°C to 105°C.
- Includes a positive lock feature with knurled coupling ring to prevent accidental disconnection.
- Contacts are removable and serviceable for quick repair and maintenance.
- Compatible with size 16 MultiMate pin and socket contacts (Series 1).
- Meets RoHS standards and is suitable for harsh environmental conditions.
Product Description
TE Connectivity 182926-1 Industrial Circular Connector offers a reliable connection solution with 37 contacts in a cable mount plug configuration. Rated for 13A current and 600V voltage, this robust connector features a thermoplastic housing that is UL 94V-0 rated for excellent heat resistance, making it suitable for harsh industrial environments.
The connector design includes a keyed mating type and a straight orientation, ensuring secure and precise connections. Its positive lock and knurled coupling ring prevent accidental disengagement, providing rugged and dependable performance for various industrial, transportation, and automation applications.
Operating temperature range spans from -55°C to 105°C, allowing use in diverse environmental conditions. The CPC series connectors allow easy field assembly and quick repair as the crimp contacts are removable if damaged, minimizing downtime.
Current rating up to 13A and voltage rating up to 600V facilitate power and signal transmission. Housing material is a stabilized, heat-resistant thermoplastic with UL 94V-0 flame retardant rating. Positive locking and knurled coupling ring provide mechanical security and vibration resistance.
Connector series designed for industrial, process control, transportation, and commercial HVAC applications. Common applications include rail and transit vehicles, motor vehicles, industrial machinery, and automation systems.
RoHS compliance ensures environmentally responsible manufacturing standards. Contacts compatible with size 16 MultiMate pin and socket for Series 1 CPC range.
This TE Connectivity circular connector is manufactured in Italy and is a trusted component for industrial and commercial connectivity needs. Browse more Industrial Circular Connectors on EnvMart for your application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 13A and a voltage rating of up to 600V.
It operates reliably in a temperature range from -55°C to 105°C.
The housing is made from thermoplastic material, which is UL 94V-0 rated for heat resistance.
This connector features 37 contacts in a male configuration.
It has a straight orientation and features a keyed mating type for secure connections.
Yes, it is designed to operate in harsh environmental conditions and meets RoHS standards.
It includes a positive lock feature with a knurled coupling ring to prevent accidental disconnection.
This model is suitable for industrial, transportation, and automation applications, including rail and transit vehicles and industrial machinery.
Yes, the contacts are removable and serviceable, allowing for quick repair and maintenance.
The shell size of this connector is 23 mm.
This connector is manufactured in Italy.
It allows for easy field assembly and is compatible with size 16 MultiMate pin and socket contacts for the Series 1 CPC range.
