TE Connectivity PIDG Insulated Fork Terminal, 22 AWG to 16 AWG, M4 Stud Size Nylon Red 32498

Free Delivery in India | Lowest Global Shipping Charges

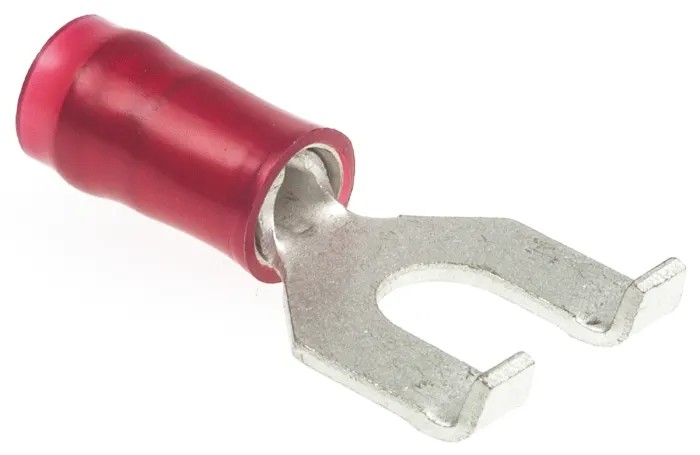

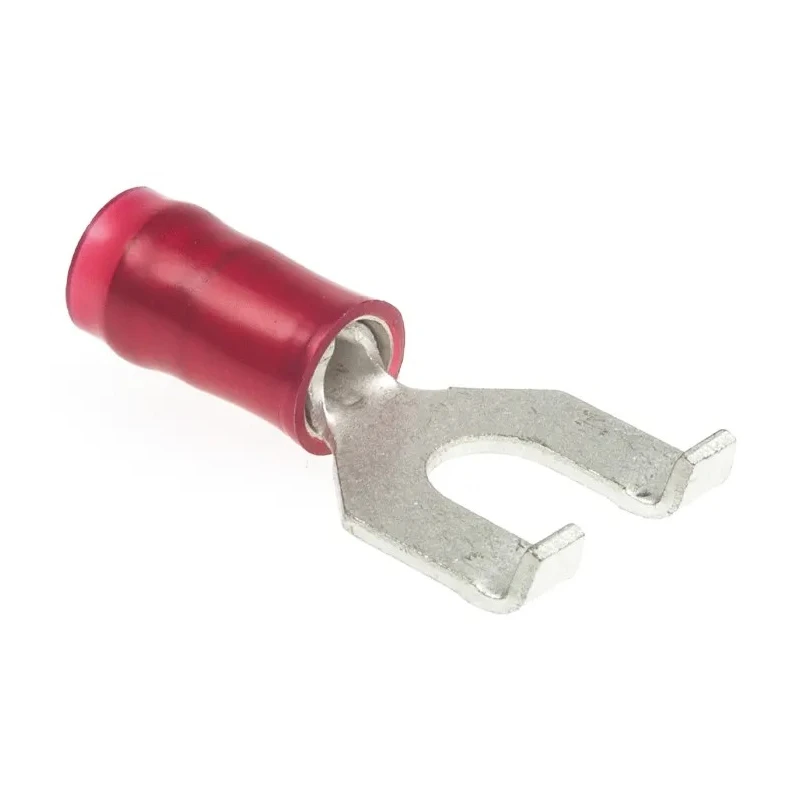

TE Connectivity PIDG Insulated Fork Terminal, 22 AWG to 16 AWG, M4 Stud Size Nylon Red 32498

Name: TE Connectivity PIDG Insulated Fork Terminal, 22 AWG to 16 AWG, M4 Stud Size Nylon Red 32498
Brand: TE Connectivity
SKU: 205572
Price: 2.68 USD
Availability: InStock



Category Fork Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Red
THICKNESS	0.84mm
Model	32498
Width	10.57mm
Insulation	Insulated
Overall Length	21.08mm
Contact Material	Copper
Series	PIDG
Insulation Material	Nylon
Contact Plating	Tin
Minimum Wire Size mm²	0.3mm²
Maximum Wire Size mm²	1.4mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Stud Size	M4

Key Features

The terminal features a high conductivity copper body for optimal electrical performance.
Copper sleeve enhances wire insulation support preventing fraying after crimping.
Serrated wire barrel ensures maximum contact and tensile strength.
Colour-coded nylon insulation sleeve allows for quick size identification.
Funnelled wire entry design facilitates fast and easy wire insertion.
Designed for high reliability and uniform crimping pressure distribution.
Suitable for industrial, aerospace, automotive, and control panel applications.
Red insulated fork terminal with tin-plated copper contacts for corrosion resistance.

Product Description

TE Connectivity 32498 PIDG Insulated Fork Terminal is engineered for dependable electrical connections in demanding environments. This fork terminal is designed for wire sizes from 22 AWG to 16 AWG and features an M4 stud size. Its insulating sleeve is made of durable nylon coloured red for easy wire identification.

The terminal's copper body provides excellent conductivity, while the surrounding copper sleeve offers reinforced wire insulation support post-crimping, reducing the risk of conductor damage. Serrations within the wire barrel enhance contact quality and tensile strength, ensuring a reliable connection.

Thanks to the funnelled wire entry, the terminal allows quick wire insertion, making it suitable for high-speed production environments. The uniform insulation thickness and precise tooling compatibility define its quality construction.

This product meets application requirements across various industrial sectors including instrumentation, power supply connections, lighting circuits, panel manufacturing, transportation equipment, motor systems, aerospace engineering, and household appliances.

The terminal features a high conductivity copper body for optimal electrical performance. Copper sleeve improves wire insulation support preventing fraying after crimping. Serrated wire barrel ensures maximum contact and tensile strength.

Colour-coded nylon insulation sleeve allows for quick and reliable wire size identification. Funnelled wire entry design facilitates fast and efficient wire insertion. Designed for high reliability and uniform crimping pressure distribution.

Red insulated Fork Terminal with tin plating to resist corrosion. Compact overall length of 21.08 mm with thickness of 0.84 mm. Suitable for use in industrial automation, automotive, aerospace, and electrical applications.
