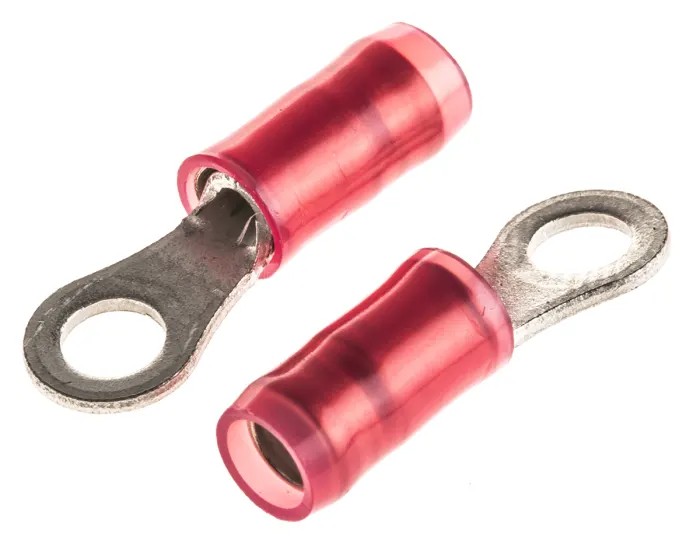

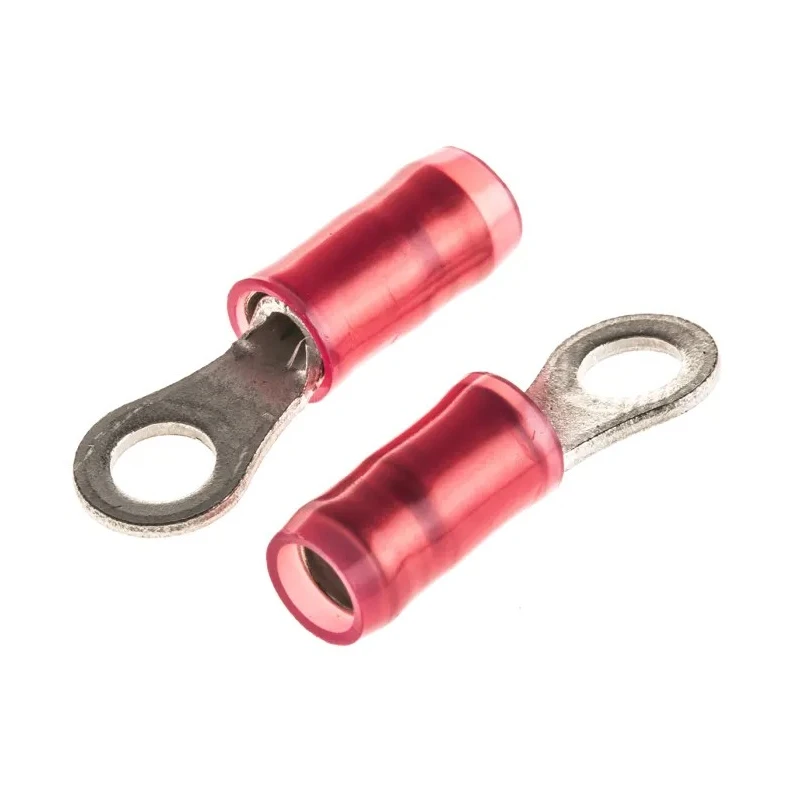

RS PRO PIDG Insulated Ring Terminal M3.5 Stud Size 22 AWG 16 AWG Wire Size Red 51863

TE Connectivity 51863 PIDG insulated ring terminal is engineered for high performance and durability in electrical wiring applications. Featuring a precision-formed copper body with tin plating, the terminal ensures excellent conductivity and corrosion resistance. The nylon insulation sleeve, colored red, aids quick wire size identification and provides mechanical protection.

The design includes a serrated wire barrel to provide maximum contact and tensile strength after crimping, ensuring reliable electrical connections even in demanding environments. The copper sleeve within the barrel supports insulation and prevents wire fraying. A funnelled wire entry feature allows fast and secure insertion of wire strands without risk of strand damage or misalignment.

This ring terminal supports wire sizes between 22 AWG and 16 AWG (0.26 mm² to 1.65 mm²) and is compatible with M3.5 stud sizes, making it suitable for a wide range of electrical and electronic equipment wiring tasks. It is widely used in industrial, aerospace, automotive, and commercial electrical systems where secure and lasting connections are critical.

Applications include control instruments, lighting circuits, power supply wiring, panel boxes, motors, and lifting equipment. The terminal exceeds demanding specifications and is manufactured to ensure consistent crimp quality when paired with the appropriate tooling.

High conductivity copper body for efficient electrical performance. Nylon insulated sleeve with red color coding for wire size identification. Tin-plated copper contacts ensure corrosion resistance and durability. Serrated wire barrel for maximum contact and tensile strength.

Funnelled wire entry prevents wire strand back-turning during insertion. Provides improved wire insulation support via copper sleeve. Designed to meet demanding industrial and aerospace applications. Ideal for power supplies, panel boxes, motors, lighting, and control instruments.

Choose TE Connectivity PIDG Ring Terminals for reliable, uniform crimps that enhance electrical system safety and performance. Explore EnvMart categories for more power connectors and wiring accessories.
